2.3 Mount the water heating battery

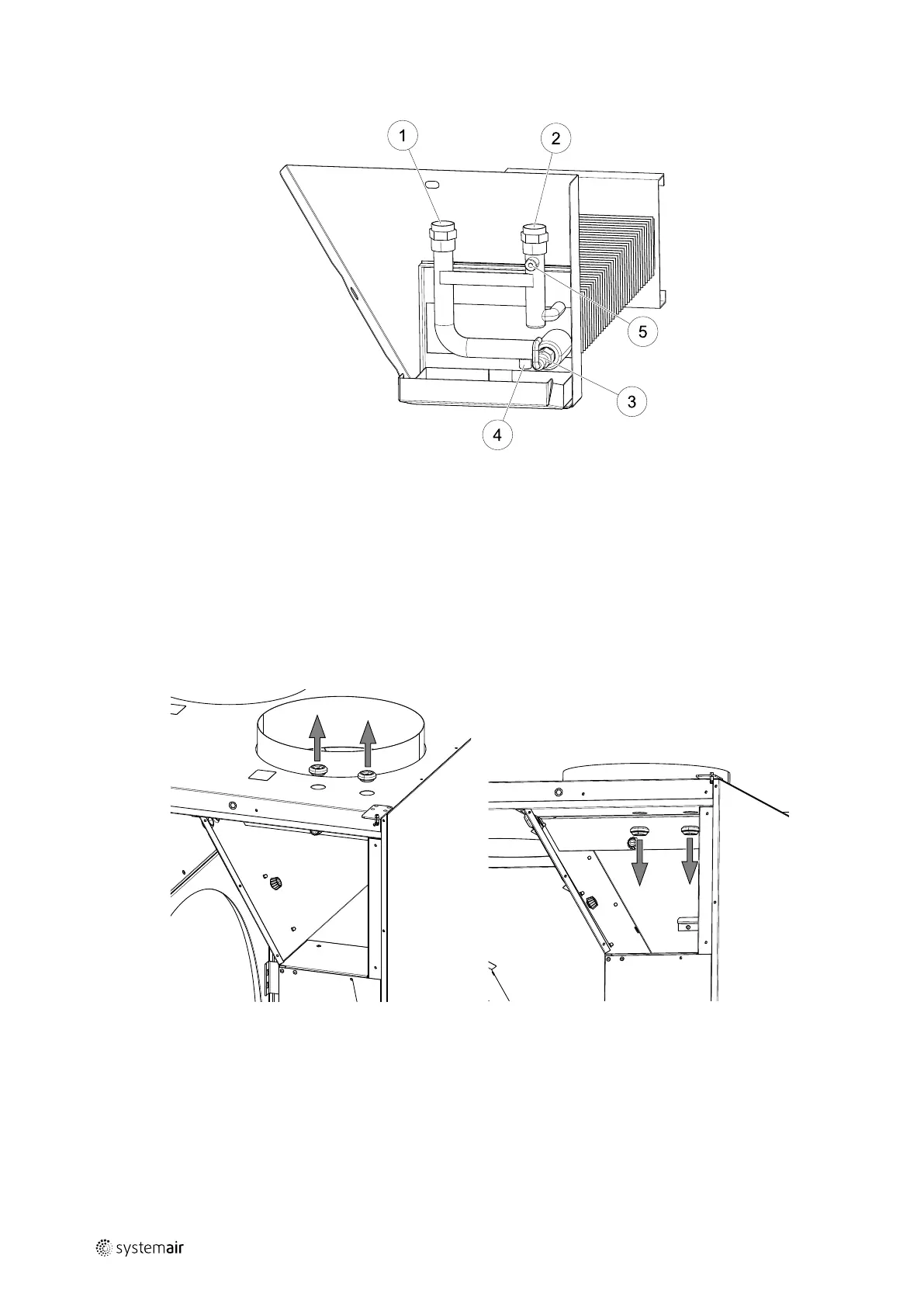

Fig. 2 The water heating battery
1. Outlet
2. Inlet
3. Remove plug and add the frost protection sensor. Tread seal the sensor.
4. Drain screw
5. Bleed screw
Installation
1. Pull out inner and outer rubber grommets.
Fig. 3 Remove grommets
2. Remove 3 knobs that will be used to secure water heater in place.
3. Mount the water heater. Be careful not to damage the thin fins on the heater.
The water heating battery should be mounted on the brackets at the back of the compartment.
