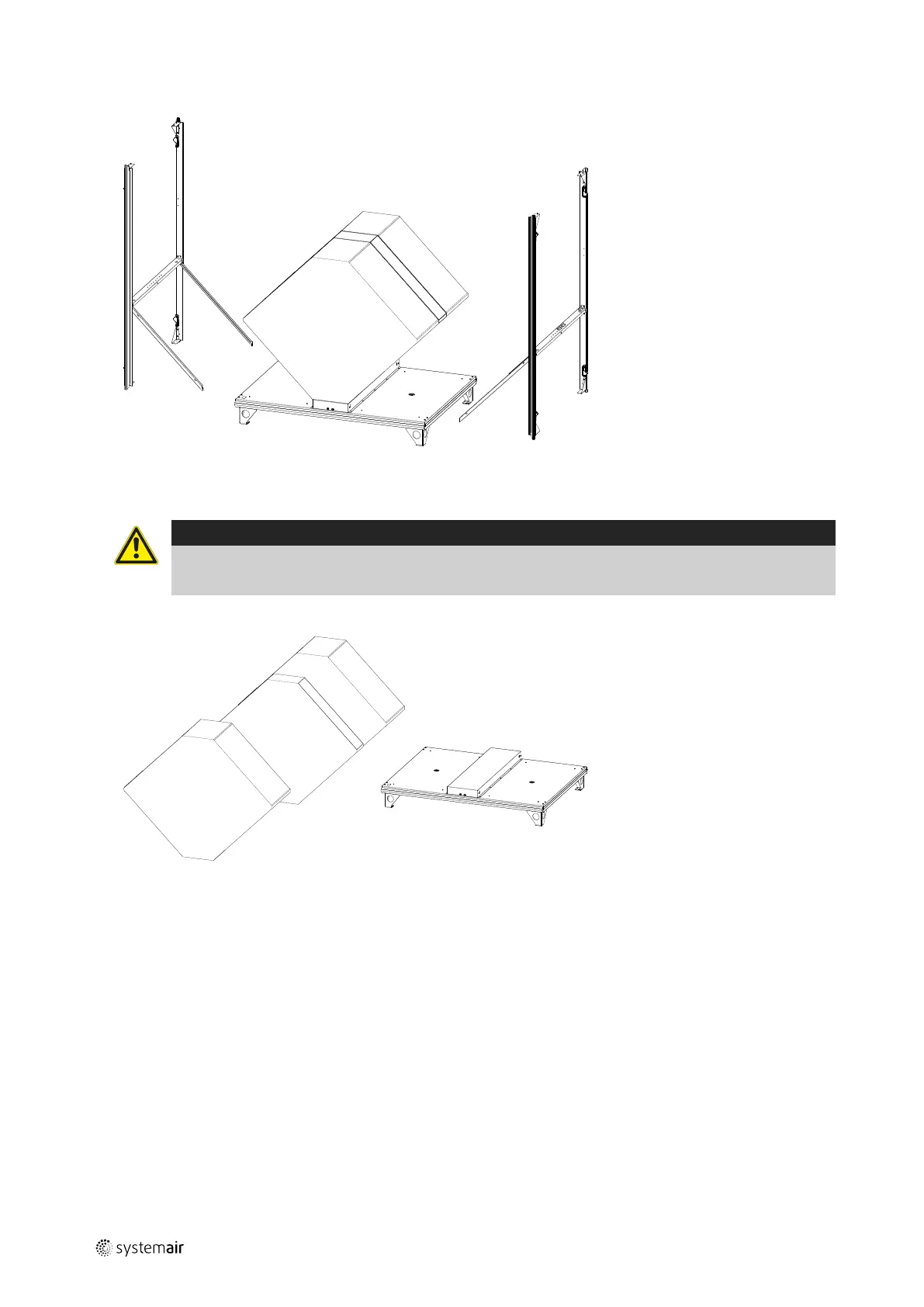

Installation
15.
Remov
e
the
beams.
16.
Possible
to
disassembly
the
beams
further.
Remove
the
heat
exchanger
Caution
•
Handle
the
heat
exchanger
with
care.
•
The
heat
exchanger
is
heavy.
17.
Remov
e
the
heat
exchanger
and
bypass.
214958
|
A007
21
23
Table of Contents
Table of Contents
3
Product Information
5
Overview
6
Intended Use
6
Disclaimer
6
Warranty
6
Warnings
6
Unloading from Trailer
7
Lifting Unit with Forklift Truck
7
Using Lifting Frame
8
Transport and Storage
9
Storage
9
Unpacking
9
Duct Connections
10
Topvex SC
10
Topvex TC
10
Internal Components
11
Topvex SC
11
Topvex TC
12
Installation
13
Requirements for Installation
14
Transport through a Standard Door
16
Remove Front Doors and Back Side on Topvex SC/TC20-35
16
Disassembly Size SC 60-70, TC 60-70
18
Assembly of Topvex SC60, Topvex SC70
23
Connect the Condensation Drain
29
Install the Supply Air Sensor
30
Insulate the Ducts
30
Install Silencer
30
Installation of Roof (Only Topvex SC ODK Versions)
31
Electrical Connections
33
Connect Mains Power Supply
33
Electric Heating Coil
34
Connection of Water Heating Coil
35
Access Control System
36
Access Control Cabinet
36
Control Unit CU27-C
37
Navipad Control Panel
37
Connect Navipad
38
Mount Navipad Holder
39
Connect Accessories in Control Unit CU27-C
40
Dimensions and Weight
43
Topvex SC20, Topvex SC25
43
Topvex SC35
44
Topvex SC60, Topvex SC70
45
Topvex TC20
46
Topvex TC25
47
Topvex TC35
47
Topvex TC60, Topvex TC70
48
Navipad
49
Access Control Cabinet
49
Technical Data
50
Additional Equipment
50
Disposal
50
EU Declaration of Conformity
51
Declaration of Conformity
52
