| Electrical connections
2
1
230V 3~ 400V 3~/230V 1~

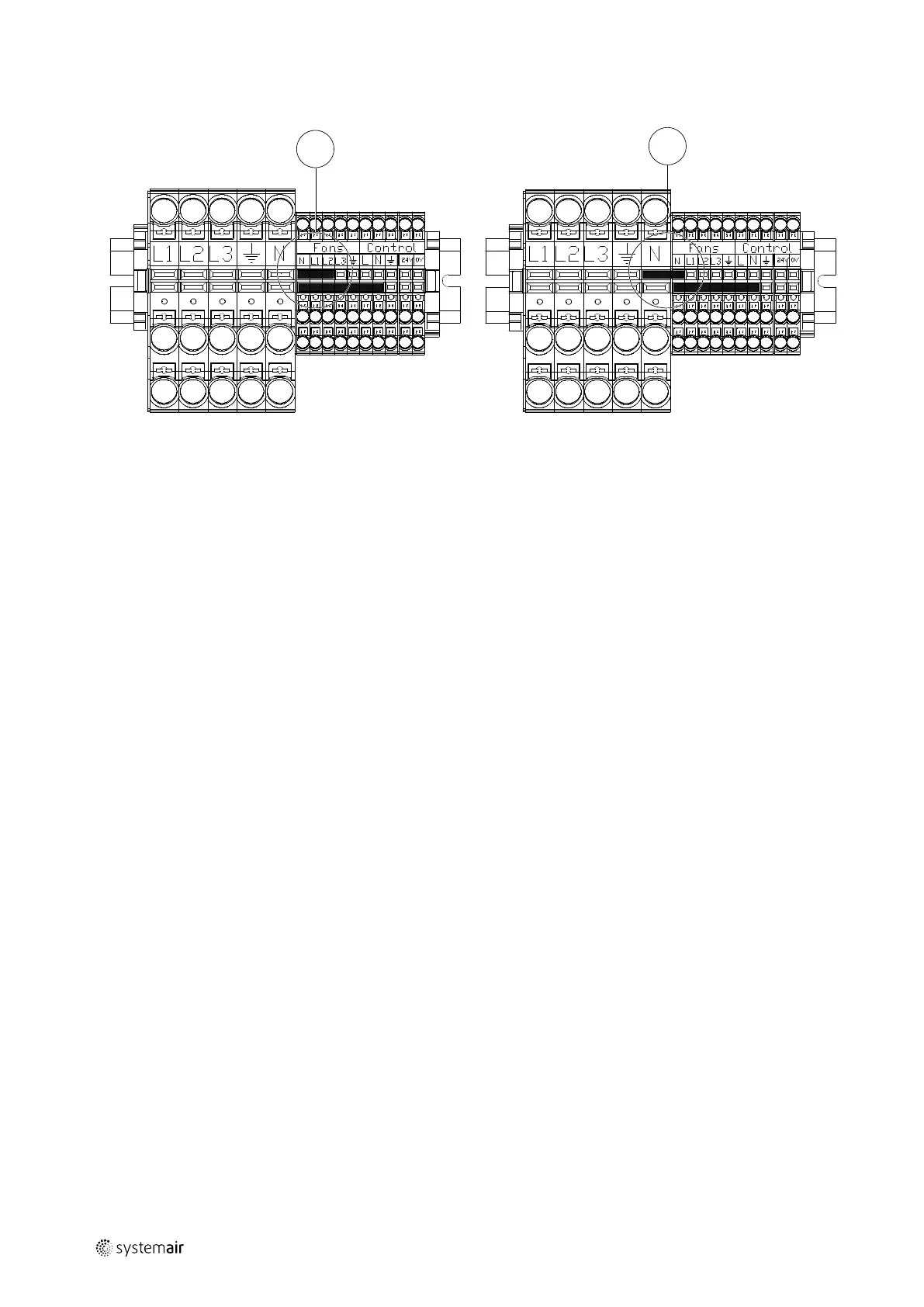

Fig. 15
1. 230V 3~ air handling units have a red jumper, L2 is connected to N.
2. 400V 3~/230V 1~ air handling units have a gray jumper, N is connected to N.
For detailed information, see the air handling units wiring diagram.
10.2 Electric heating coil
Mains power supply to electric heating coil is connected from factory.
