Installation |
23

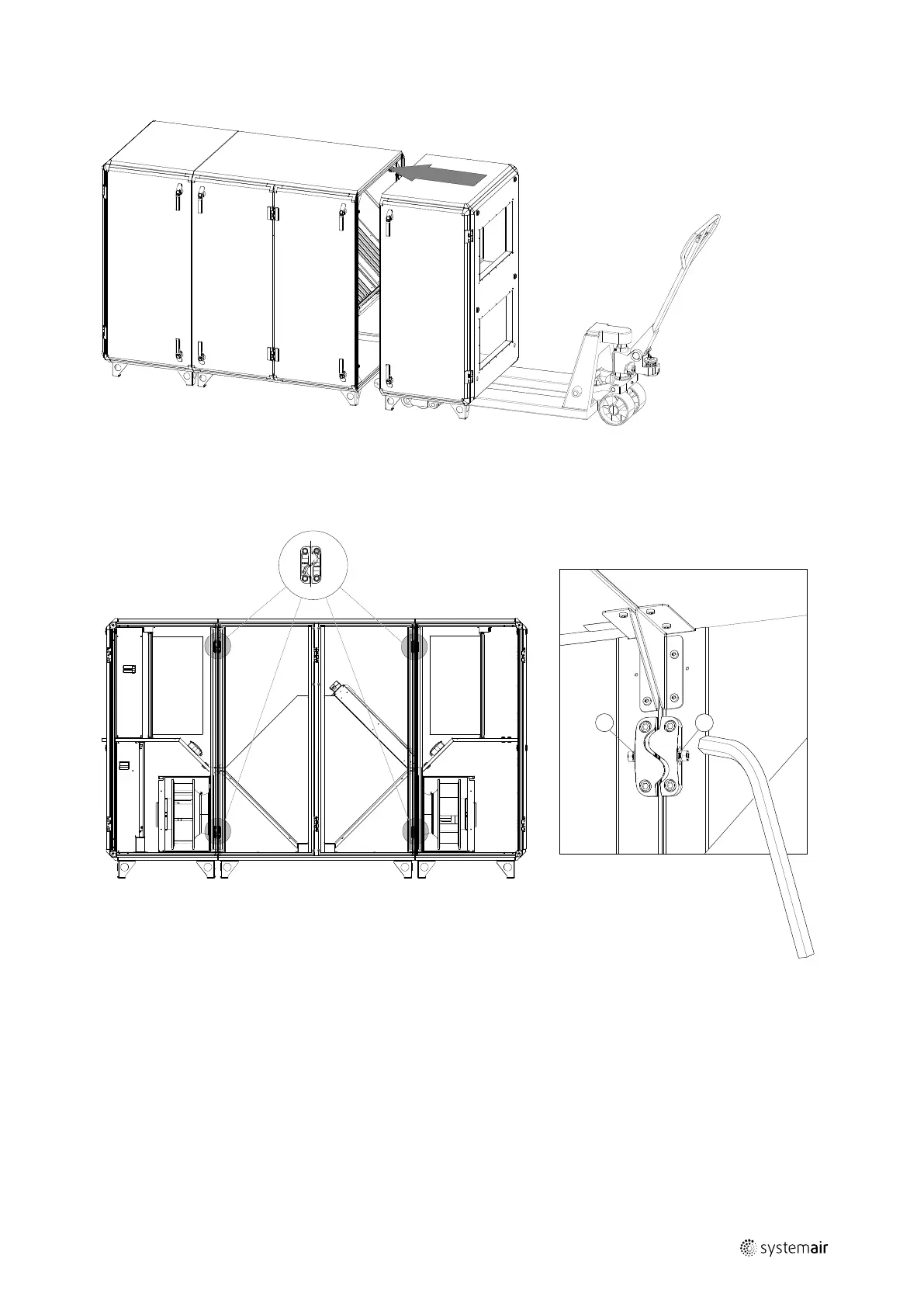

13.Unite the parts of the air handling unit using a pallet lift.
14.Open the middle doors and section doors.
15.Remove the filters for easy access.
16.Use an allen key on the side of the 8 connectors, to lock the unit's sections. Make sure to use the enclosed washers
(1).
1
1
x8
Fig. 6 8 connectors
214958 | A007
