4.5.2 Electric Connections

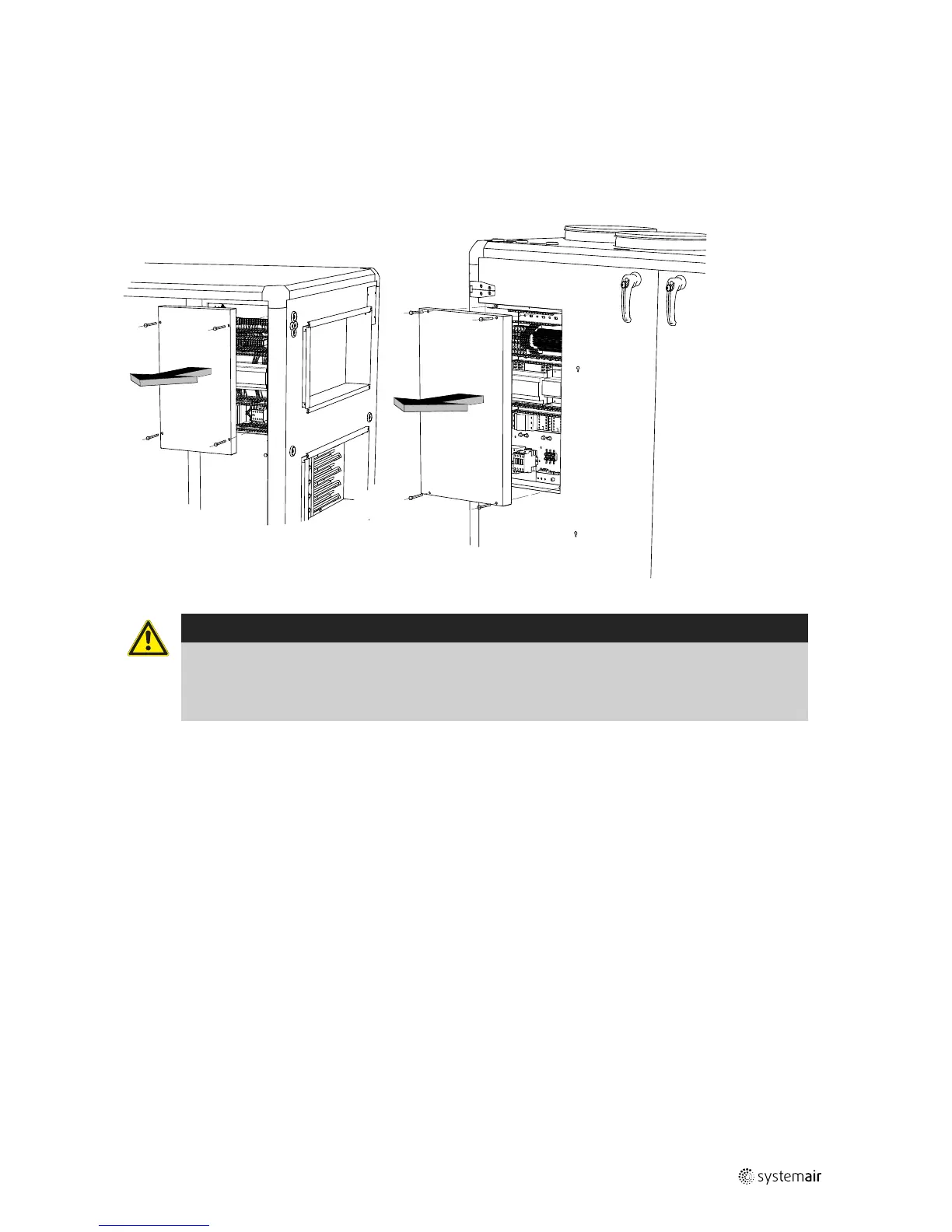

All electric connections are made in the electrical connection box which can be found in the front of the unit (figure 12).
The hatch is removed by unscrewing four screws (figure 12).
The unit must not be put into operation before all the electrical safety precautions have been read and understood. See
the enclosed wiring diagram for internal and external wiring.
All external connections to possible accessories are made to terminals inside the electrical connection box (table 3).
Danger
• Make sure that the Mains supply to the unit is disconnected before performing any maintenance or
electrical work!
• All electrical connections must be carried out by an authorized installer and in accordance with local rules
and regulations.
124454 | A003
