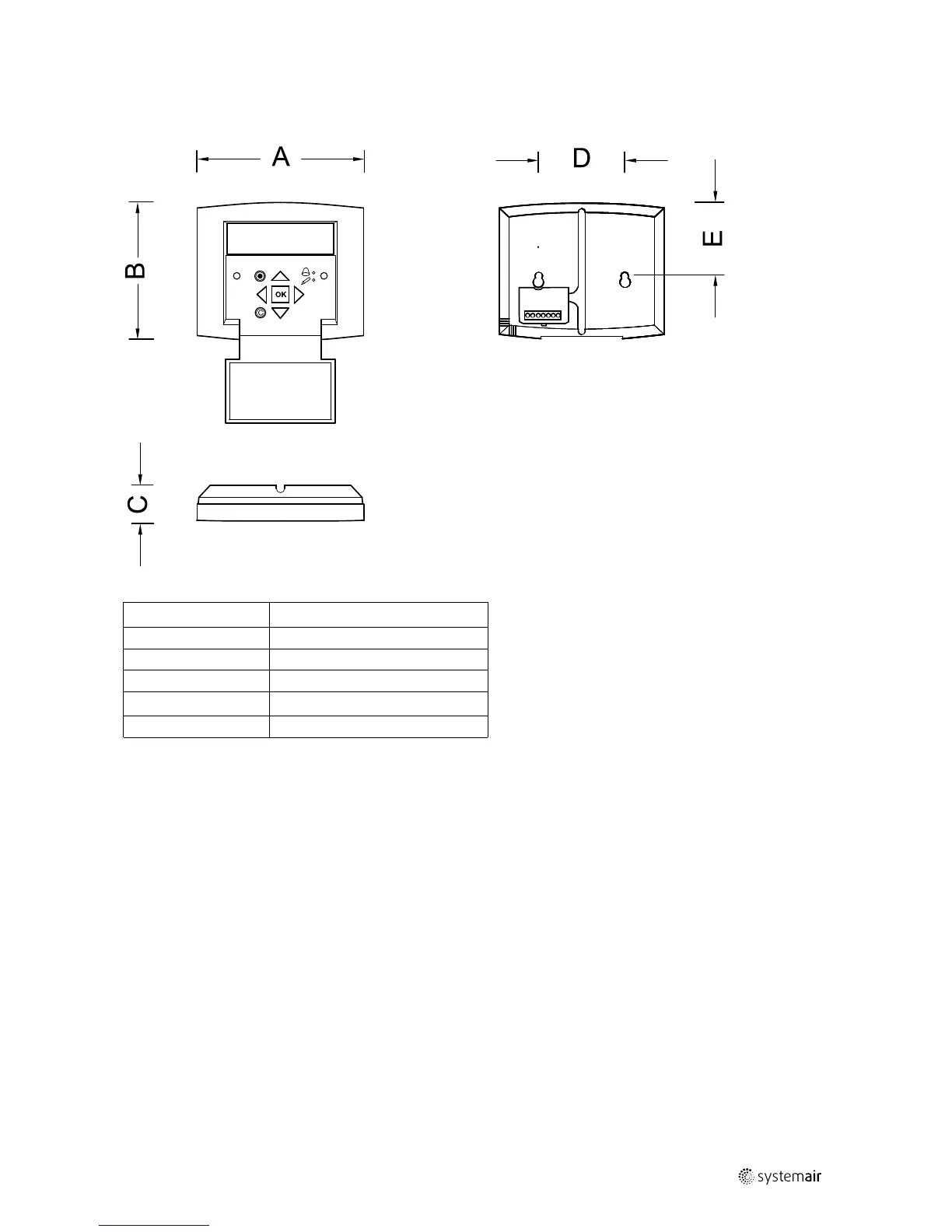

PPoossiittiioonn
DDiimmeennssiioonnss ((mmmm))
A 115.0
B 94.0
C 26.0
D
c/c 60.0
E 50.5
4.6.2 General information
The control panel is delivered connected to the Corrigo control unit situated in the electrical connection box. Cable
length is 10 m. In case the control panel needs to be detached from the signal cable it is possible to loosen the wires on
the back of the control panel (figure 16).
A set of self-adhesive magnet strips are included in the package to facilitate installation on a metal surface.
4.6.3 Installation
11 Find an appropriate place to install the control panel. Max-
imum length between control panel and unit is 100 m.
22 If needed, drill two holes in the wall to hang the control
panel (center to center: 60 mm) (pos.1, figure 16).
124454 | A003
