3.2 Technical Data
3.2.1 Dimensions and weights Topvex SR 03-06

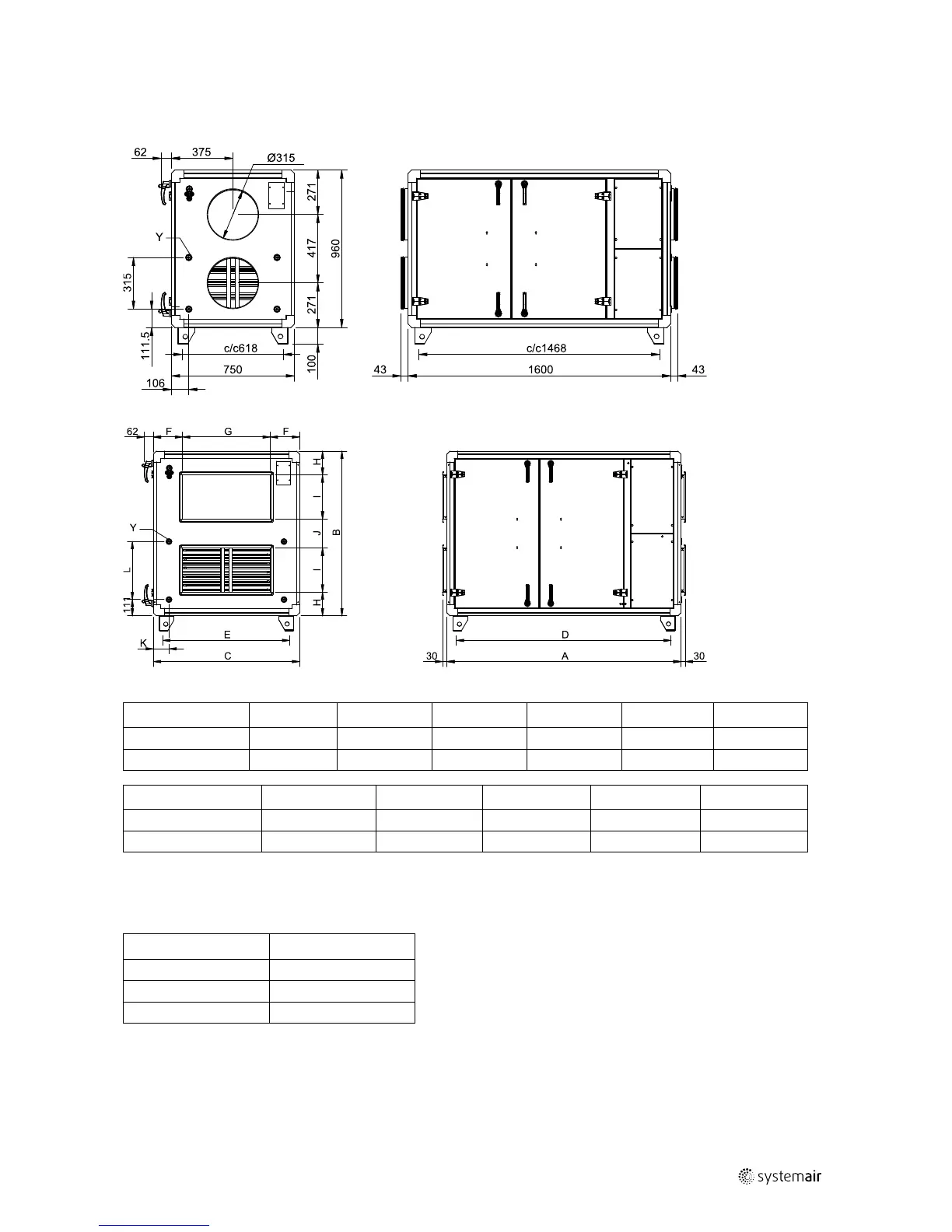

Fig. 1 Dimensions (mm) SR03 (Drawn as a right hand unit)
Fig. 2 Dimensions (mm) SR04, SR06 (Drawn as a right hand unit)
MMooddeell
AA BB CC
DD ((cc//cc)) EE ((cc//cc))
FF
SR04 1600 1041 850 1315 565 175
SR06 1600 1128 1000 1468 868 200
MMooddeell
GG HH II
JJ
KK
SR04 500 171 250 200 355
SR06 600 164 300 200 396
Y: 15R 1/2″ Inner thread
3.2.1.1 Weights Topvex SR 03-06
MMooddeell
WWeeiigghhtt ((kkgg))
SR03 220
SR04 270
SR06 300
