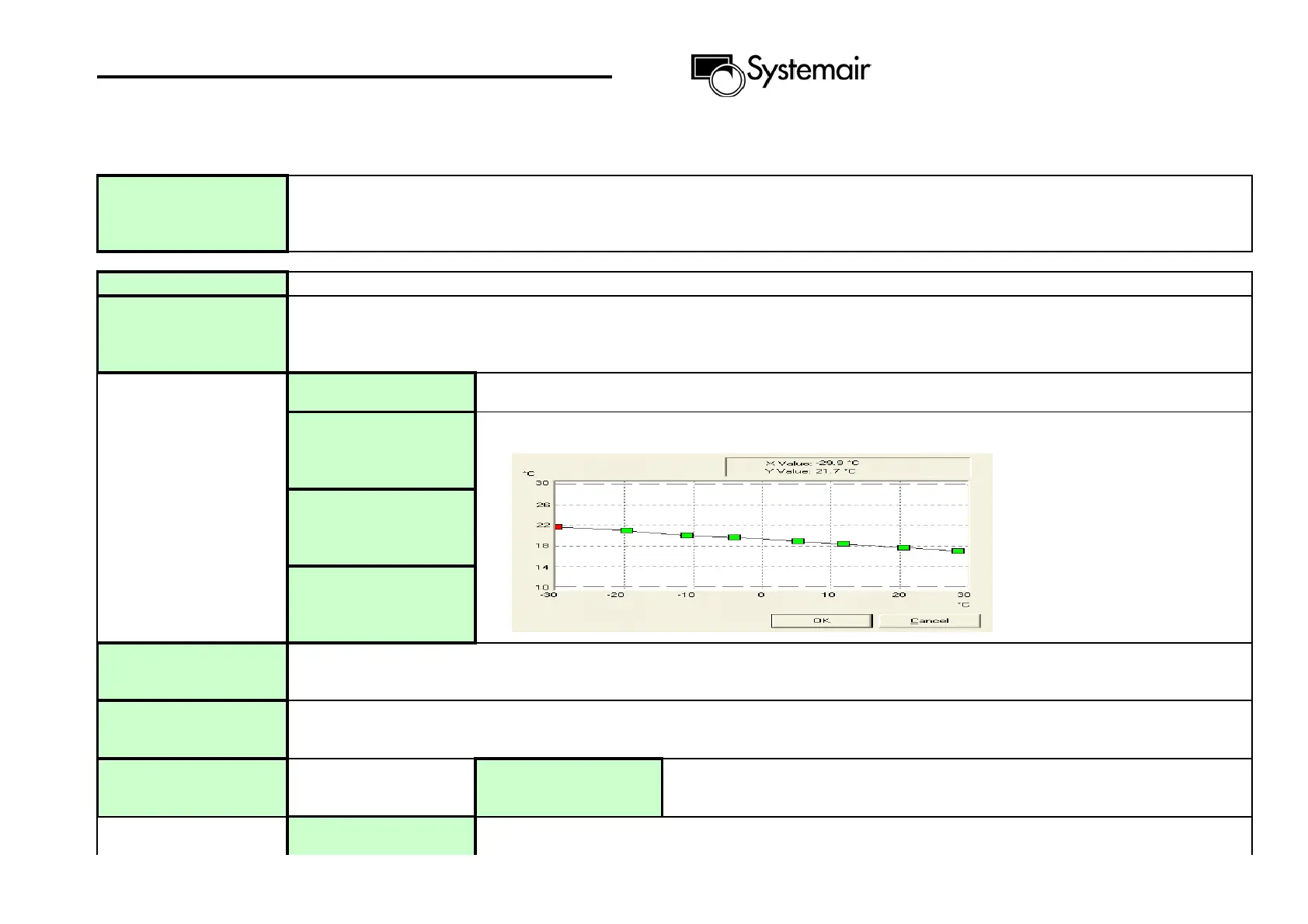

Control unit, manual
Topvex TR 15 HW flow
05:10:21 16:03
System:Normal run
Sp: 0.0Act: 0.0°C
Actual/Setpoint
Outdoortemp: 0.0°C
Supply air temp
Act. : 0.0°C Setp -->
Setp: 0.0°C
Supply air temp
Setp.: 0.0°C
Outdoor comp. Setp.
-29.9°C = 21.7°C
-19.6°C = 21.0°C
-10.8°C = 20.0°C
Outdoor comp. Setp.
-4.0 °C = 19.7°C
5.3 °C = 18.9°C
11.9 °C = 18.4°C
Outdoor comp. Setp.
20.6 °C = 17.7°C
28.6 °C = 17.0°C
Exhaust air temp
Actual : 0.0 °C
Setp. : 0.0 °C
Room temp. 1
Actual : 0.0 °C
Setp. : 0.0 °C
Flow control SAF Pressure control SAF
Actual : 0.0 m³/h Actual : 0.0 Pa
Setp. : 0.0 m³/h Setp. : 0.0 Pa
Flow control SAF
Setp 1/1 : 0000.0 m³/h
Show
actual Exhaust air temperature.
Only used when the unit is configured for Exhaust air control.
Set
the Exhaust air temperature.
or
Used when the unit is configured for constant flow or constant pressure control.
Show
Actual SAF flow or pressure
Show
Setpoint of SAF flow or pressure.
Only used when the unit is configured for Room control or Room-/Supply air control.
Show
actual Room temperature.
Set
the Room temperature.
Set
the desired flow for full speed and half speed
If VAV control is chosen, set the desired pressure for full speed and half speed.
- Start Screen Headline.
Show
actual Outdoor temperature and Supply air temperature.
Show
Setpoint of the Supply air temperature. When using Cascade function the Setpoint is a calculated value depending on the
Exhaust/Room temperature.
Only used when the unit is configured for Supply air control.
Set
the Su
pp
l
y
air tem
p
erature. Maximum allowed su
pp
l
y
air tem
p
erature is 35
o
C
Only used when the unit is configured for Outdoor compensated Supply air control.
Set
the Supply air temperature at 8 different outdoor temperatures.
Can be set to 5 different layouts.
(see page 11. Configuration/System/Choose Start Screen ).
