SystemAir Topvex TR20 User Manual

Technical data |
27
P
Q
A
A2 A2
D
G
F
c/c E
H 118
K
c/c J
I
118
S T
W
O
LMN
118
C
B
R

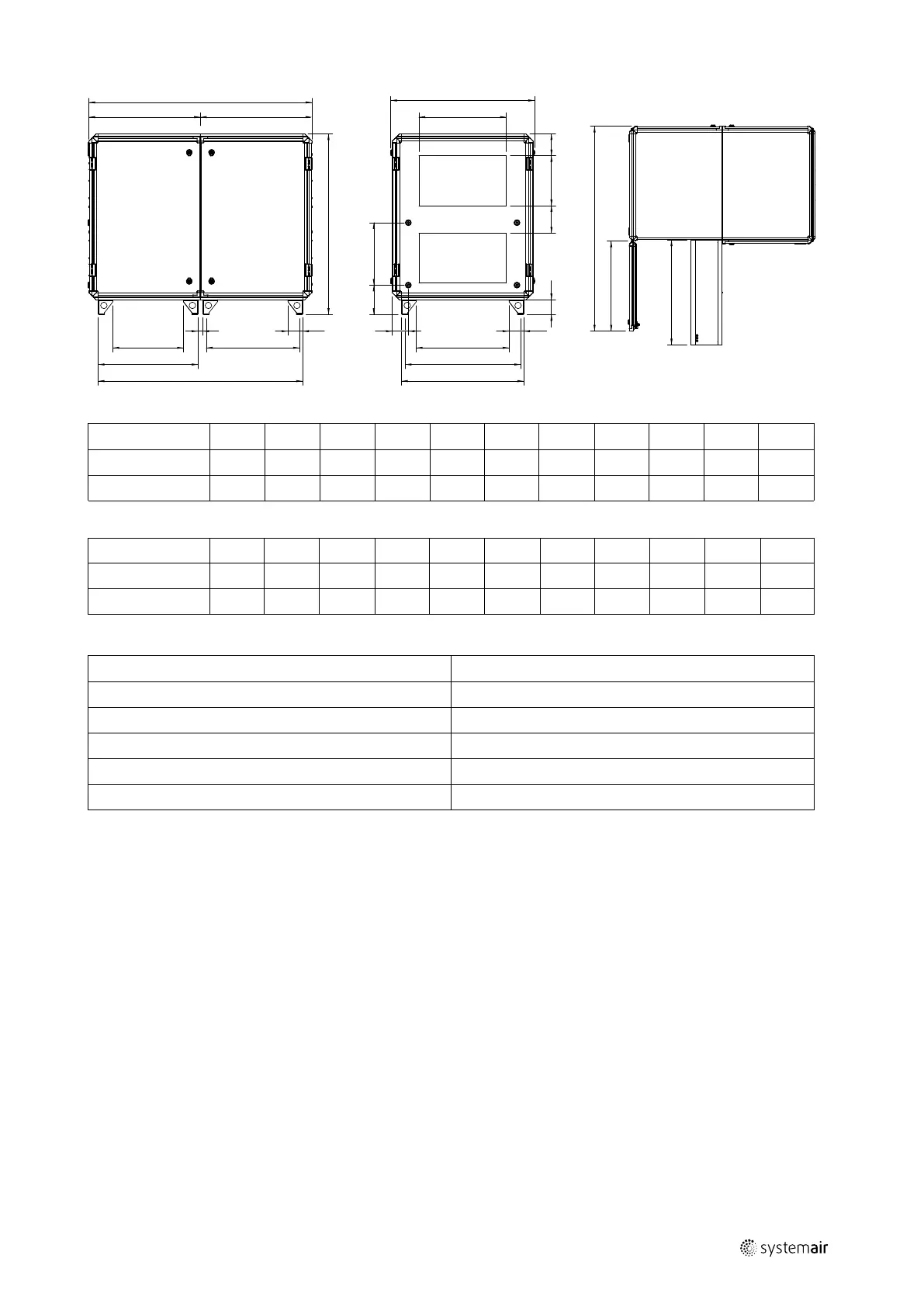

Fig. 34 Topvex SR60, Topvex SR70, Topvex SR80
Model
A A2
1
B C D
c/c E
F G H I
c/c J
Topvex SR60 1785 893 1152 1448 1637 750 800 564 38 978 928
Topvex SR70 1785 893 1312 1597 1637 750 800 564 38 1138 1088
1
Dimension when the air handling units is divided.
Model
K L M N O P Q R S T W
Topvex SR60 742 175 400 220 700 1969 865 1009 235 500 128
Topvex SR70 902 250 400 220 800 2153 865 1169 301 525 124
Table 2 Weight
Model Weight, kg
Topvex SR20 195
Topvex SR25 230
Topvex SR35 285
Topvex SR60 365
Topvex SR70 405
