Duct connections
|
5
NaviPad, NaviPad holder, supply air sensor, handles, mounting feet are enclosed inside the unit at delivery. One handle
is packed on top of the air handling unit.

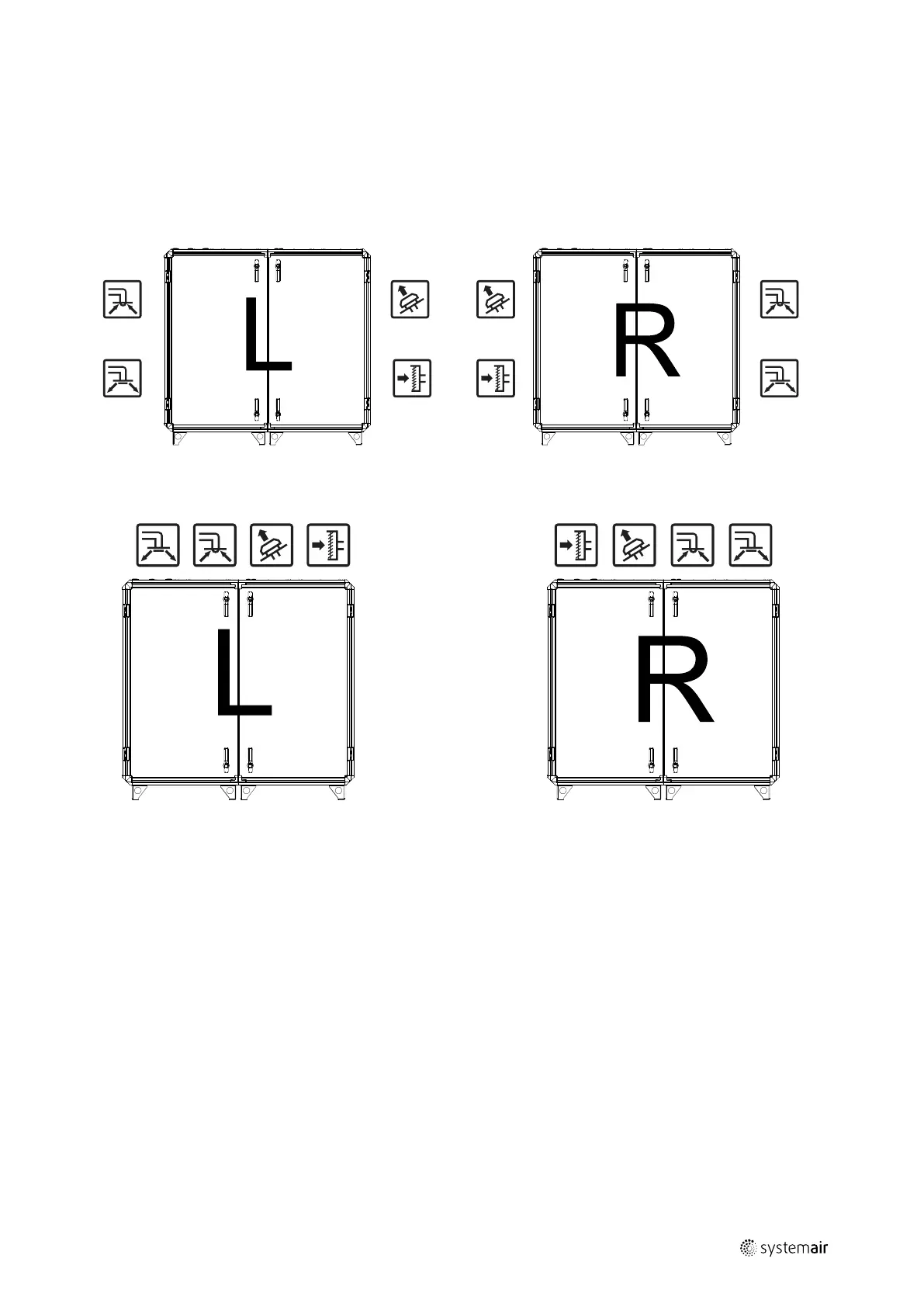

7 Duct connections
Left (L) and Right (R) indicate the position of the supply air when viewed from access side.
7.1 Topvex SR
Fig. 4
7.2 Topvex TR
Fig. 5
254050 | A001
