2.3.3 Electrical Connection Box Topvex TR4000
Topvex TR4000 are equipped with a built in controller and internal wiring (Figure 5).
1
3
4
5
2
6
7

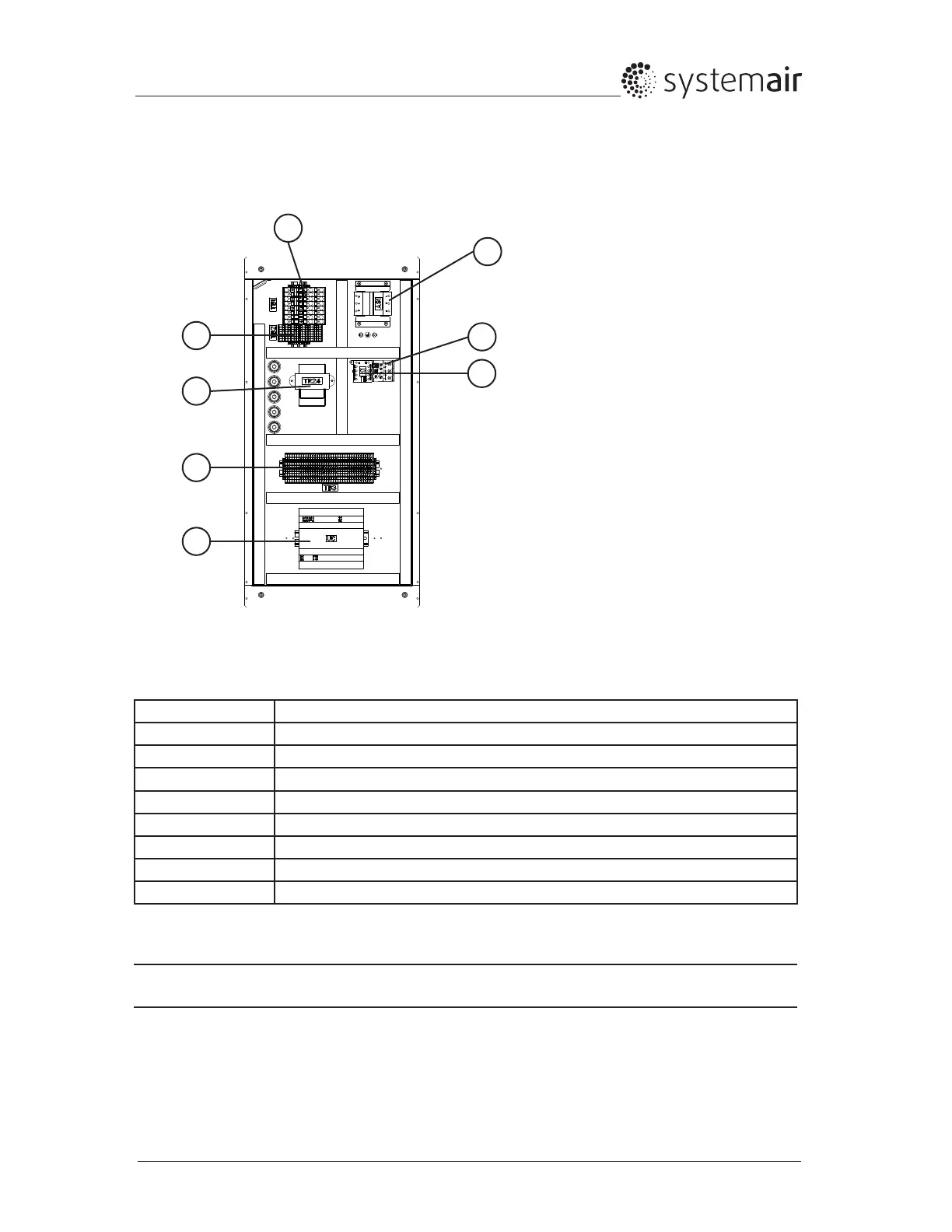

Fig. 5 Electrical components Topvex TR4000
Position Description
1 Controller E-28 (UC)
2 Transformer 208-230/24VAC (TR24)
3 Terminals for internal and external components (TB3)
4 Terminals for internal wiring (TB2)
5 Terminals for main power voltage to the unit (TB1)
6 Contactor (K1) On/Off rotor motor
7 Automatic fuse (AS1)
8 Thermal overload relay (TOR)
Table 4: Description of electrical components Topvex TR4000
Note:
For pre-heater components, please refer to the “HWC-EPH Installation Instructions” manual (420353).
