Mounting
TAC I/A Series MicroNet Sensors can be direct-wall, 2 x 4 electrical box, 1/4 DIN electrical
box, or surface box mounted. See Figure-1 and Figure-2 for appropriate mounting
dimensions.

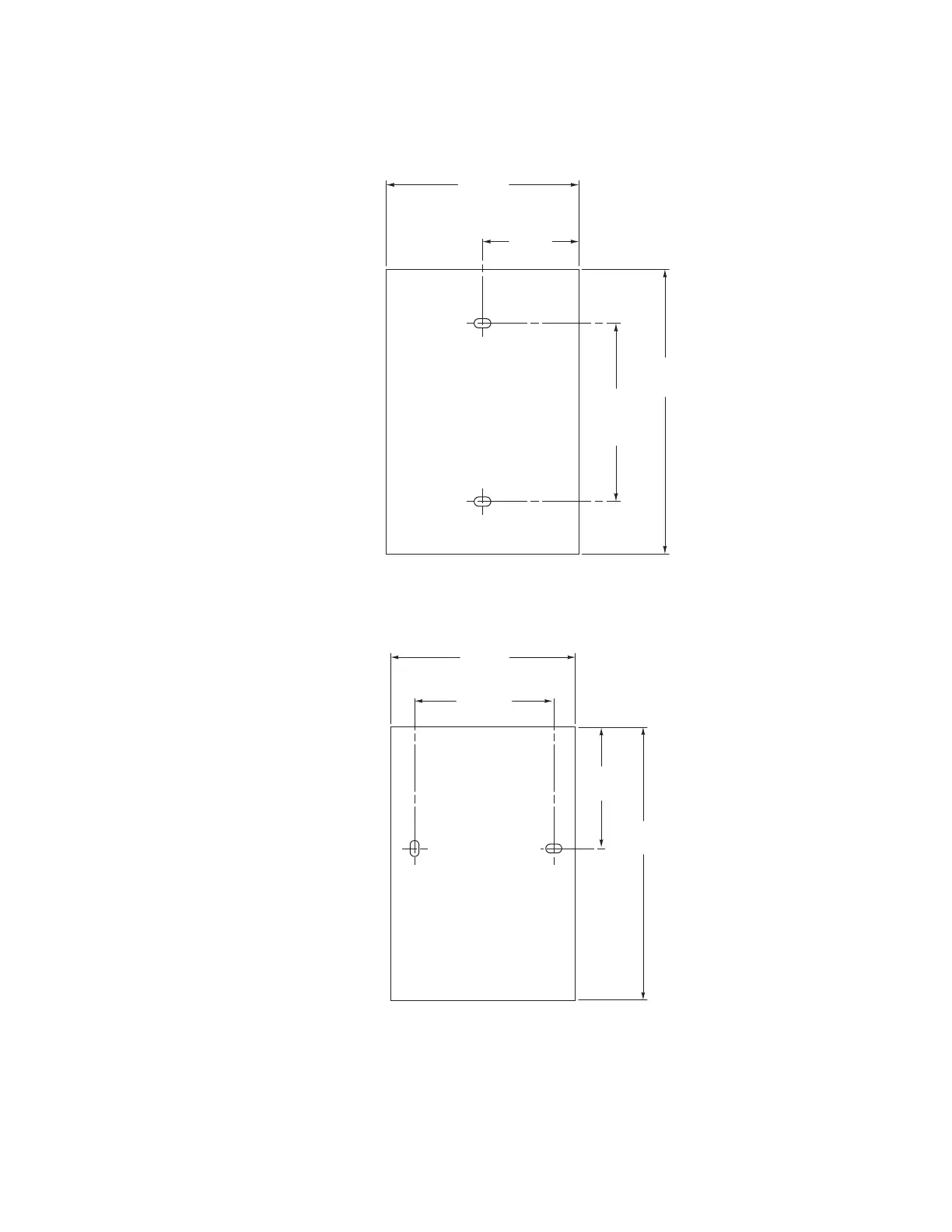

Figure-1 Mounting Dimensions for Direct-wall,
2 x 4 Electrical Box, and Surface Box Mounting.
Figure-2 Mounting Dimensions for 1/4 DIN Electrical Box Mounting.
4-21/32
(118.5)
3
(76.2)
1-1/2
(38.1)
3-1/4
(82.6)
Centered
Dimensions shown
are in inches (mm).
4-21/32
(118.5)
3
(76.2)
2-3/8
(60.3)
Centered
1-29/32
(48.4)
Dimensions shown
are in inches (mm).
