t.a.c. I/A MicroNet MN-S Series User Manual

8 © Copyright 2006 TAC All Rights Reserved. F-26277-7
1/4 DIN Electrical Box Mount
1. Use mounting dimensions shown in Figure-2.
2. Feed S-Link wires from electrical box through base plate.
3. If required, feed LON wires through base plate.
Caution: Failure to use vertical mounting holes as shown in Figure-5 may cause a short of
the LONWORKS network.
4. Using two appropriate screws (not provided), mount base plate to electrical box using
vertical mounting holes indicated in Figure-5.

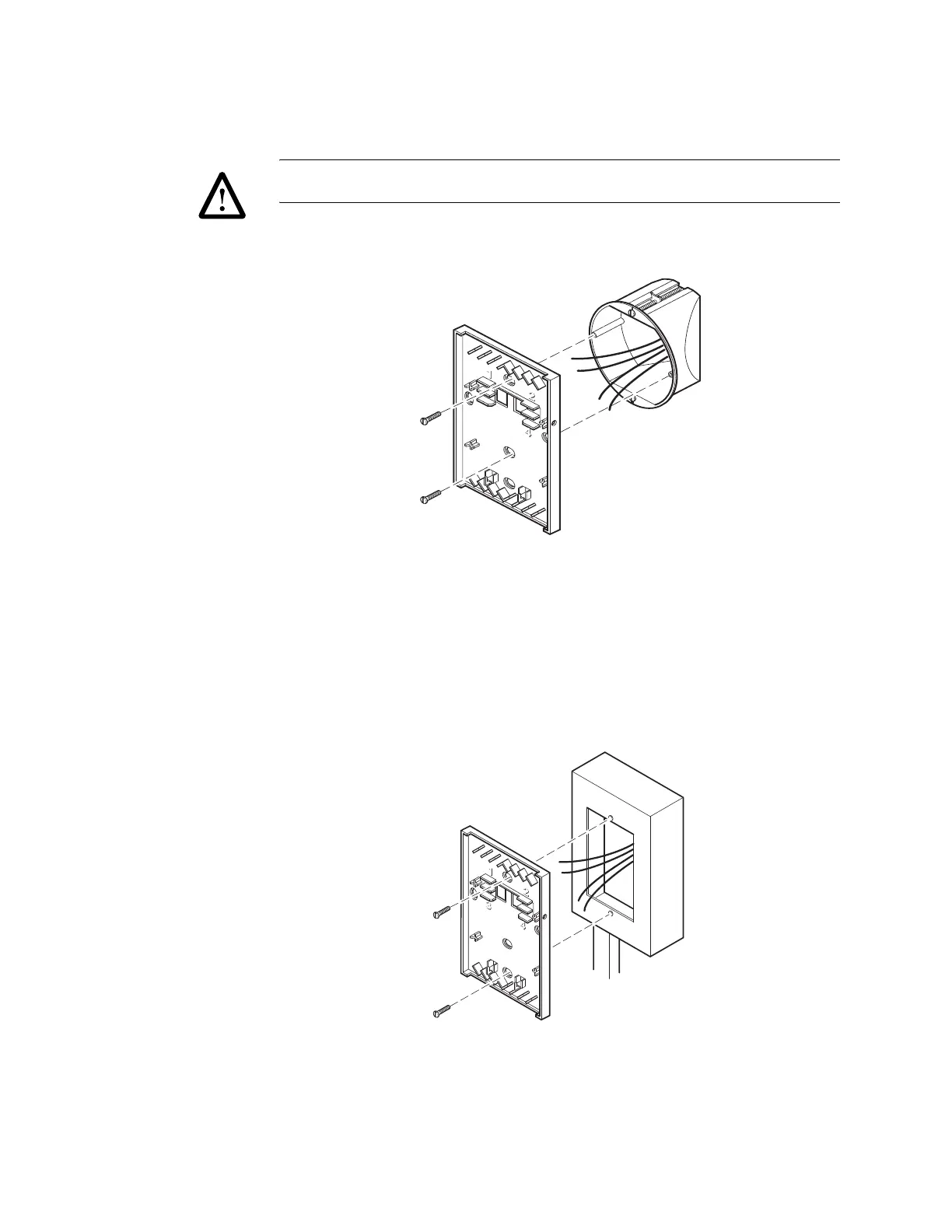

Figure-5 1/4 DIN Electrical Box Mounting.
Surface Box Mount
1. Use mounting dimensions shown in Figure-1.
2. Feed S-Link wires from electrical box through base plate.
3. If required, feed LON wires through base plate.
4. Using two 6-32 x 5/8 in. flat head screws (not provided), mount base plate to surface
box (Figure-6)
Figure-6 Surface Box Mounting.
