WARNING: Some of the following symbols may appear on this tool. Study these
symbols and learn their meanings. Proper interpretation of these symbols will
allow for more efficient and safer operation of this tool.
ASSEMBLY AND OPERATING
INSTALLING THE ASSIST HANDLE
The removable assist handle is designed for use when precision control over the tool movement
is desired. Use the assist handle when operating the tool with either the freehand cutting guide
or the circle cutting guide.
1.
2.
3.
NOTE: The mounting bracket must be pushed onto the motor housing as far as it will go.
4.

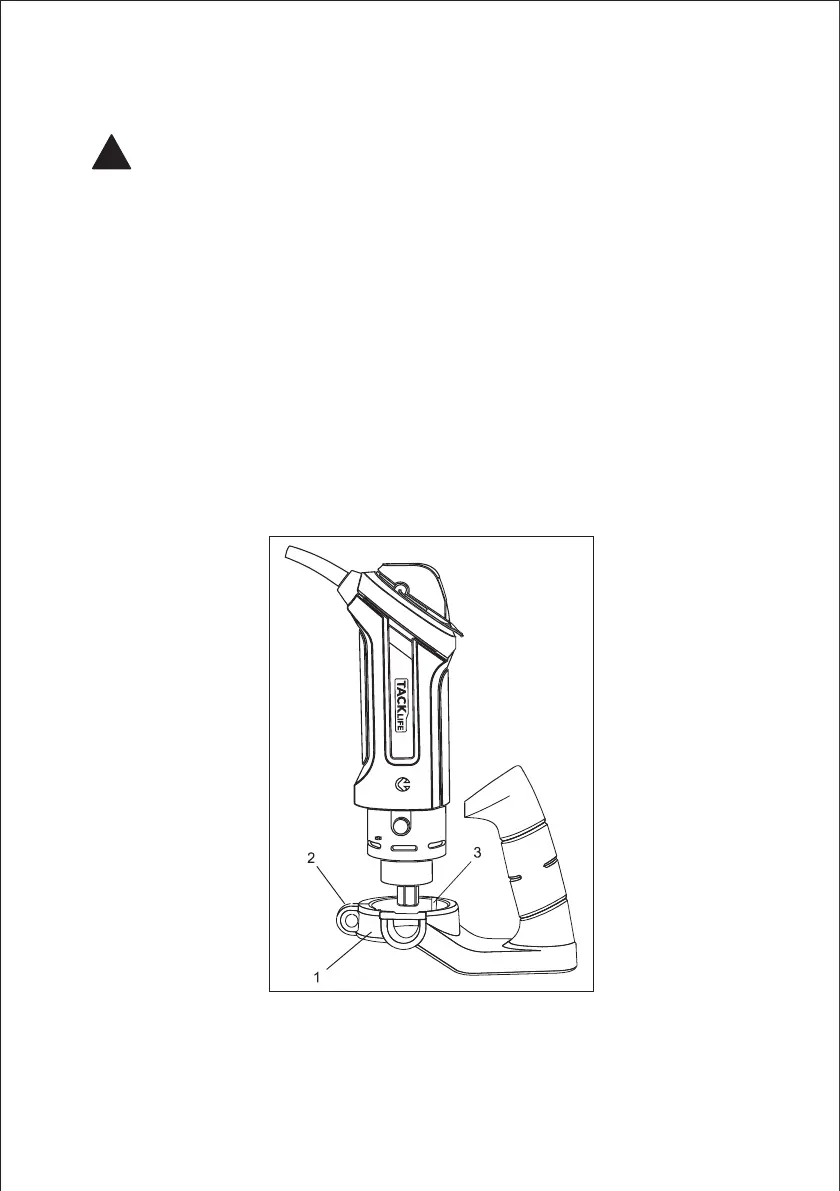

Open the mounting collar (1) by pulling the quick release lever (2) outward (Fig. 1).
Slide the mounting collar onto the bottom of motor housing (2). Make sure the key (3) on the
motor housing is aligned with the matching keyway in the mounting collar.
When the key and keyway are aligned, slide the mounting collar fully onto the motor housing
and then rotate the collar clockwise approximately 10° to lock the key and keyway.
Press the quick release lever inward toward the mounting collar to finish locking the mount-
ing collar onto the motor housing.
- 07 -
