Taco 0034ePlus User Manual

-6-
6. Programming your 0034ePlus circulator: Modify the performance of the circulator as needed by changing the
operating mode using the easy programming button keypad. When the circulator is powered on, the LED will illuminate
and change color based on the operating mode selected. The LED will ash each time a setting is changed.
See diagram below to set pump for desired operating mode. The selection of the right operating curve
depends on the characteristics of the system and the actual ow / head requirements. See Pump Curves to
determine the best operating mode for the system. See cross-reference replacement chart on back page.
The 0034ePlus has 5 Operating Modes:
• activeADAPT™ — Automatic, self-adjusting, proportional pressure, variable speed
(Violet LED)
• Constant Pressure — 5 curve settings of constant pressure, variable speed
(Orange LED)
• Proportional Pressure — 5 curve settings of proportional pressure, variable speed
(Green LED)
• Fixed Speed — Variable xed speed settings (1 - 100%)
(Blue LED)
• 0-10V DC — Analog external input or PWM pulse width modulation
input from building control system, variable speed
(Yellow LED)

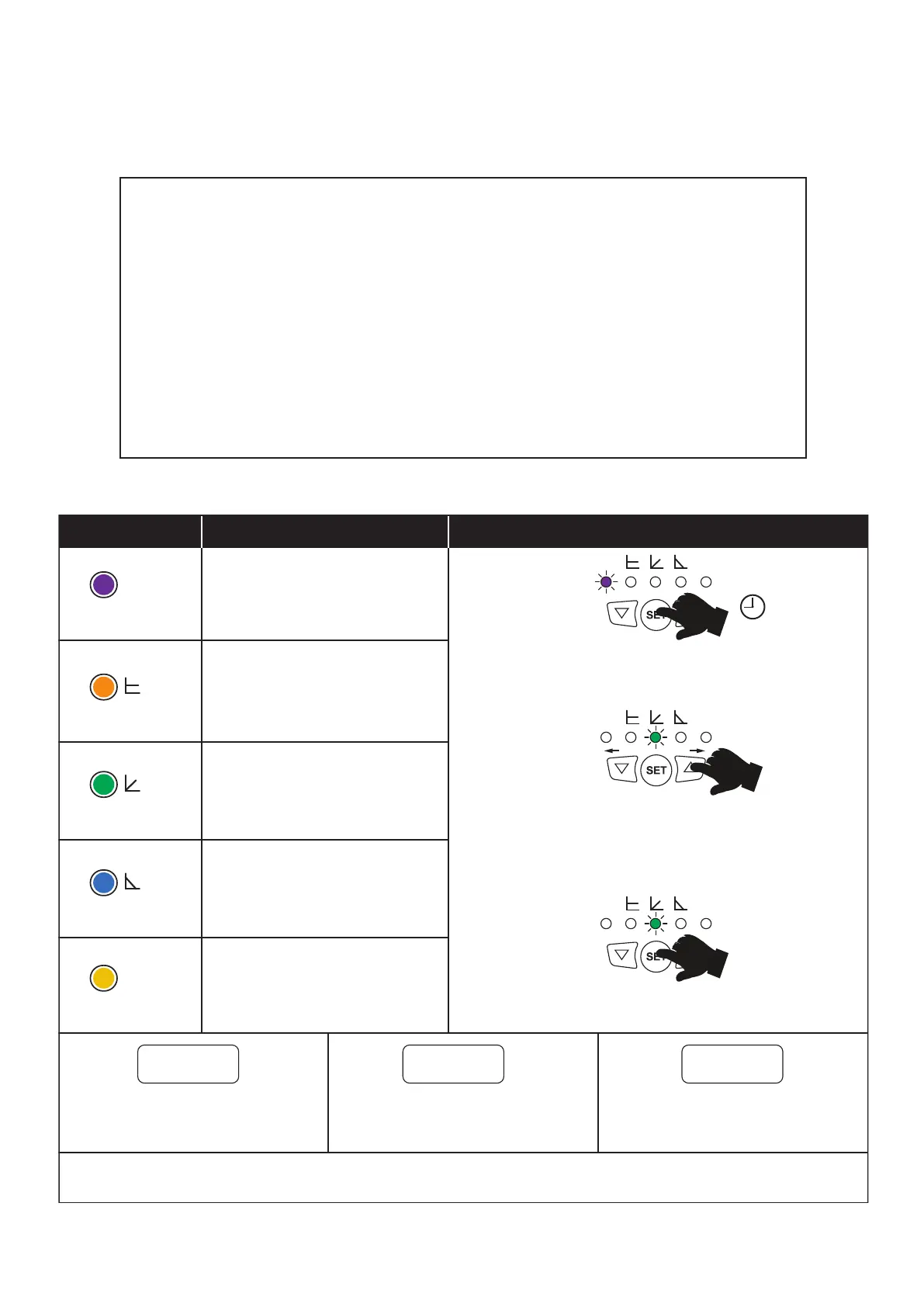

Figure 7 - Digital Display Operating Modes
8888 8888 8888
Orange LED (**)
C
Purple LED (**)
activeADAPT
0-10V
Green LED (**)
P
Blue LED (**)
min-max
Yellow LED (**)
activeADAPT
0-10V
activeADAPT
0-10V
activeADAPT
0-10V
LED FUNCTION SETTING
activeADAPT (*)
Constant Pressure
(C1 - C2 - C3 - C4 - C5)
Proportional Pressure
(P1 - P2 - P3 - P4 - P5)
Variable Fixed Speed
MIN - MAX (1 - 100%)
0-10V DC
External Input
1) Press the “SET” button for 2 seconds, the LED indicating
the operating status starts ashing quickly.
2) Press the UP or DOWN buttons to select the new operating
mode and the desired value for the constant, proportional
and variable speed curves (See display below).
3) Press the “SET” button to conrm the desired
operating mode and value.
W GPM RPMFT
Constant Pressure
(C1 - C2 - C3 - C4 - C5)
Proportional Pressure
(P1 - P2 - P3 - P4 - P5)
Variable Fixed Speed
MIN - MAX (1 - 100%)
(*) Factory settings
(**) Turns white to indicate the presence of air in the system or red to indicate the presence of an error
C 2
W GPM RPMFT W GPM RPMFT
3P 05
Change the performance of the circulator according to the need, using “SET”, DOWN and UP buttons.
2 s
