Taco SR501 User Manual

FOUR ZONE SWITCHING RELAY
WITH OPTIONAL PRIORITY
ZONE 4
ON OFF
PRIORITY
120V RELAY
FUSE 1 AMP
24 VAC POWER
MASTER
1234
PLUG-IN CARDS
RESET NORMAL
SLAVE
POWER CONTROL INTERFACE
THERMOSTATS
ZONE 1 ZONE 2 ZONE 3 ZONE 4
120 VAC INPUT
TO: "TT" ON BOILER
120 VOLT CIRCULATORS
ZC ZR
X X
END
SWITCH
ZONE1 ZONE2 ZONE3 ZONE4
POWER
INPUT
ZONE 2 POWER ZONE 1 ZONE 3 ZONE 4
JUMPER
H
N
ZONE
CONTROL
BOIL
SEN
OUT
SEN
BOILER SENSOR
OUTDOOR
SENSOR
PC700
BOILER
SWITCH SETTINGS
Master/Slave: Master Reset/Normal: Reset Priority Zone: On or Off
SR 504-EXP
T
21

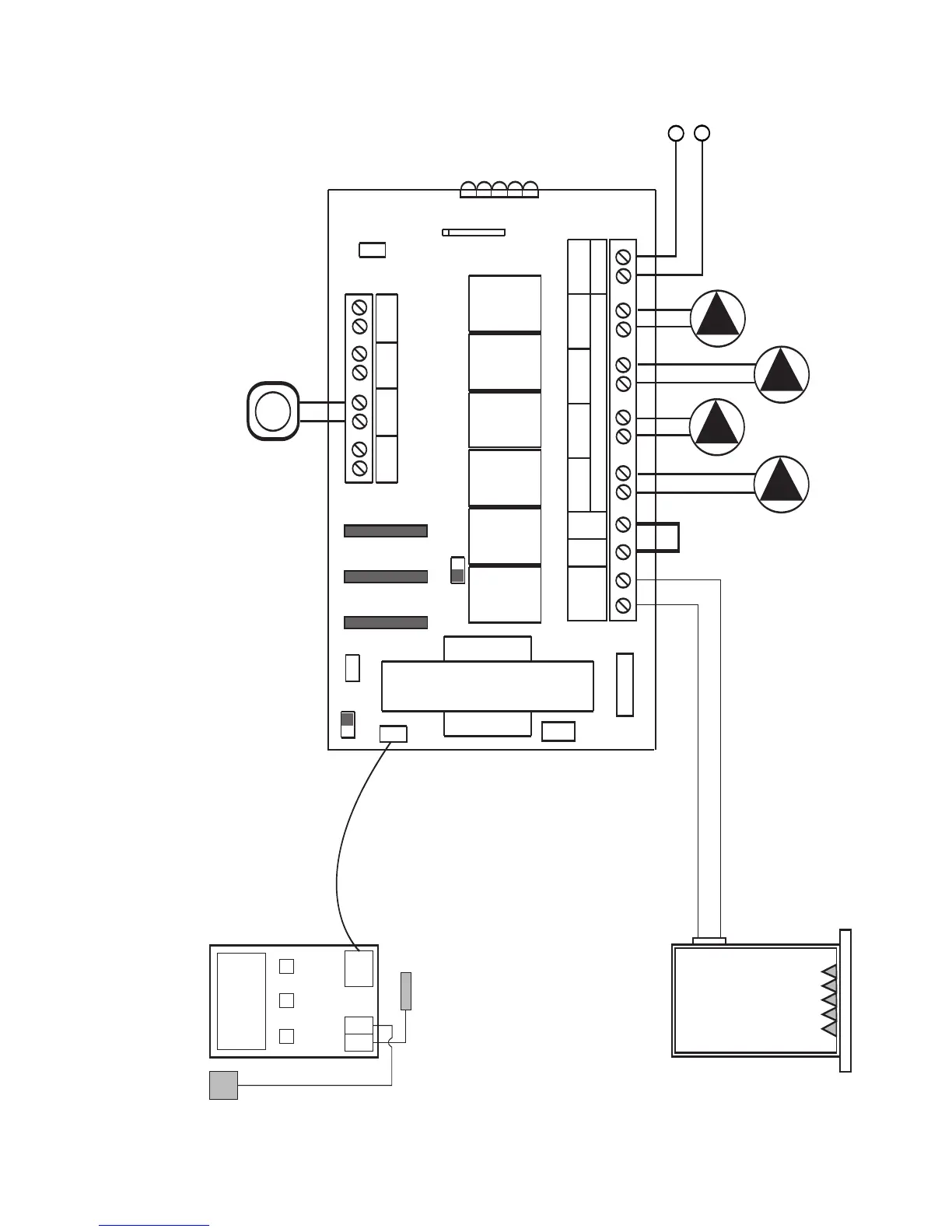

PC700 Boiler Reset Control Connected to EXP Switching Relay

Taco SR501 Specifications

General

Model	SR501
Category	Control Unit
Input Voltage	120 VAC
Frequency	60 Hz
Switch Type	SPDT
Enclosure Rating	NEMA 1
Type	Relay
Operating Temperature	0°C to 40°C
Relay Output	24 VAC
