Taco SR506-5 - Product & Applications Diagrams

5. Product & Applications Diagrams:

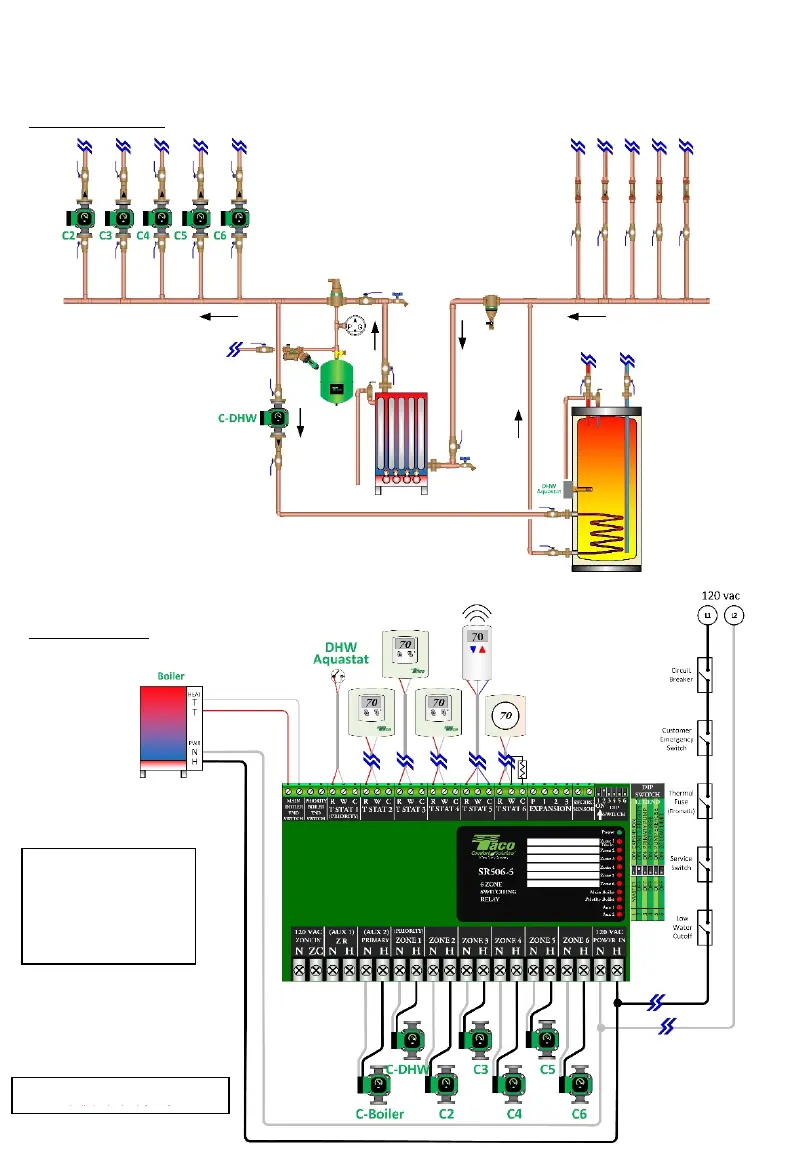

PA01-C - SR506-5 with 5 Zone Circulators & Indirect DHW; Supply & Return Headers
Mechanical Diagram
Electrical Diagram
Dip Switch Settings
1. OFF - Master
2. ON - Priority
3. OFF - Primary Pump
4. OFF or ON - Post Purge
5. OFF or ON - Pump Exercise
6. OFF - ZC Low Limit
Conceptual Sketches Only, refer to individual
manufacture’s installation instructions for additional
d t il L l d h ll il
