3

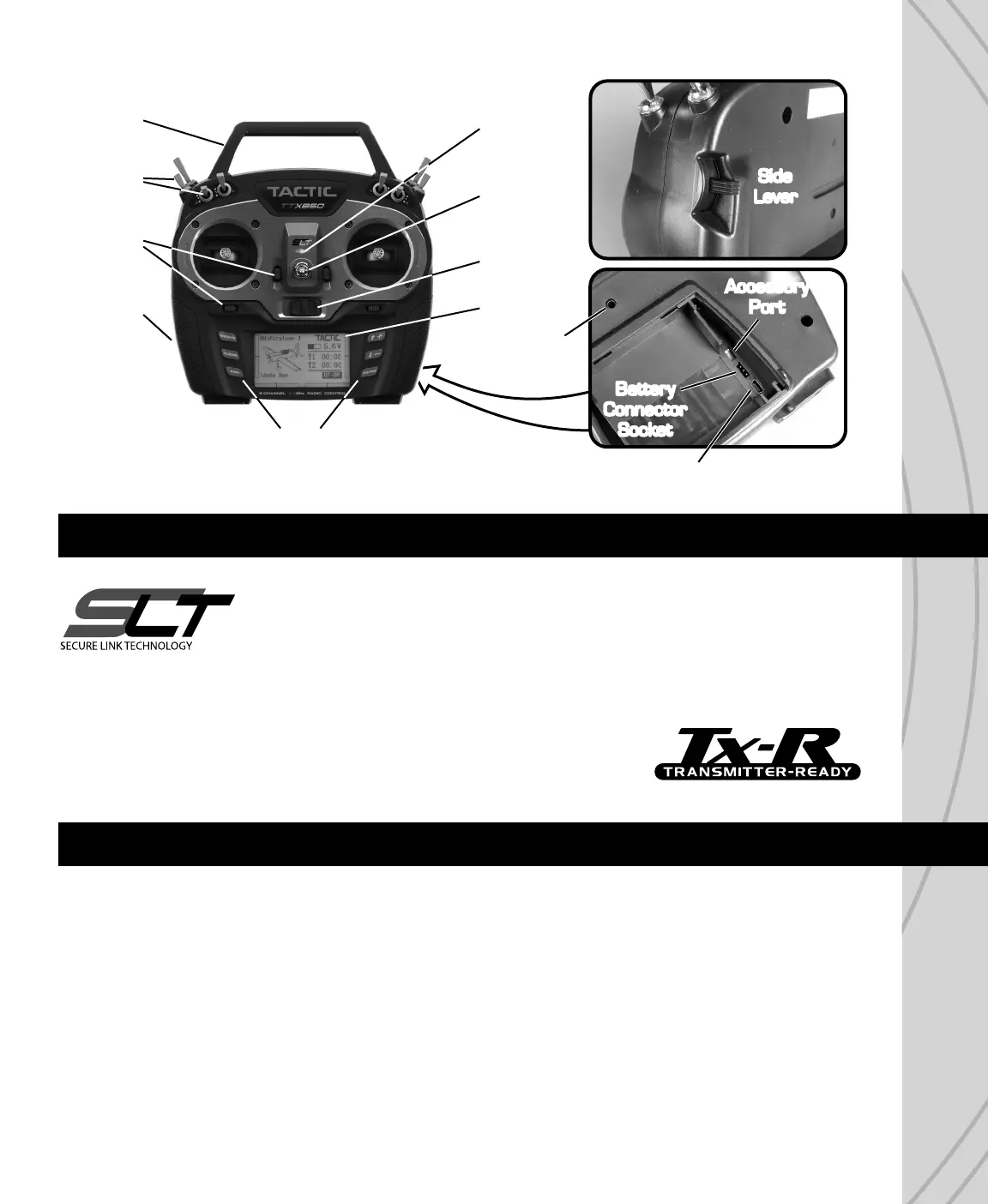

Neck
Strap
Eyelet
Power
Switch
LED Power
Indicator
LCD
Pushbuttons
Carrying
Handle
Toggle
Switches
Charge
Jack
Trim
Levers
Trainer
Jack
Battery
Connector
Socket
Battery
Connector
Socket
Firmware Upgrade Jack
Accessory
Port
Accessory
Port
Side
Lever
Side
Lever
SLT technology ensures that transmitters emit a strong, clear, frequency-hopping
2.4GHz signal, and that your compatible receiver accepts no signal except yours.
Binding Tactic brand receivers is as simple as pushing a button, which creates a
locked-in, interference free link. The TTX850 is also compatible with non-Tactic
brand receivers which use the *SLT protocol, for the ultimate in convenience and fl exibility.
* Make sure optional receivers have the genuine SLT protocol before use with the TTX850.
The TTX850 is also compatible with all transmitter-ready aircraft bearing the
“Tx-R” logo. Such aircraft include receivers having the SLT protocol.
Always mount the optional receiver, servos, switch harness, battery, electronic speed control, etc. as explained
in the manual included with such equipment and/or the model. Keep the Rx and its antenna(s) as far away
from the engine/motor, servos, and ESC and other electronic items as possible. It may also be a good idea
to mount the Rx inside certain models using Velcro
®
, and wrap it in foam rubber to prevent damage from
strong vibrations or crash damage (except in extremely warm environments). It’s best to have as few items
surrounding the receiver’s antenna tips as possible inside the model, to allow for the most obstruction-free
signal path to the transmitter. Exposing the receiver’s antenna tip outside the model is recommended if
possible. For receivers with two antennas, position the antennas at 90 degree angles with the tips resting
at least 5 inches apart. If possible, allow one antenna to point vertically above the receiver itself.
SLT TECHNOLOGY, Tx-R, AND COMPATIBLE RECEIVERS
™
TM
RECEIVER INSTALLATION
To Next Page
