TA2922 TM8/TM9 Universal Line Interface Board Installation Instructions 5
© Tait Electronics Limited April 2010
10 Screw the universal line interface board to the mounting posts on the radio lid using
six M3x8 self-tapping screws
j
. Tighten the M3x8 screws to a torque of 1.9N·m
(17lbf·in)
Important: For the universal line interface board to be installed correctly in the radio’s
options cavity, the internal options connector loom
1)

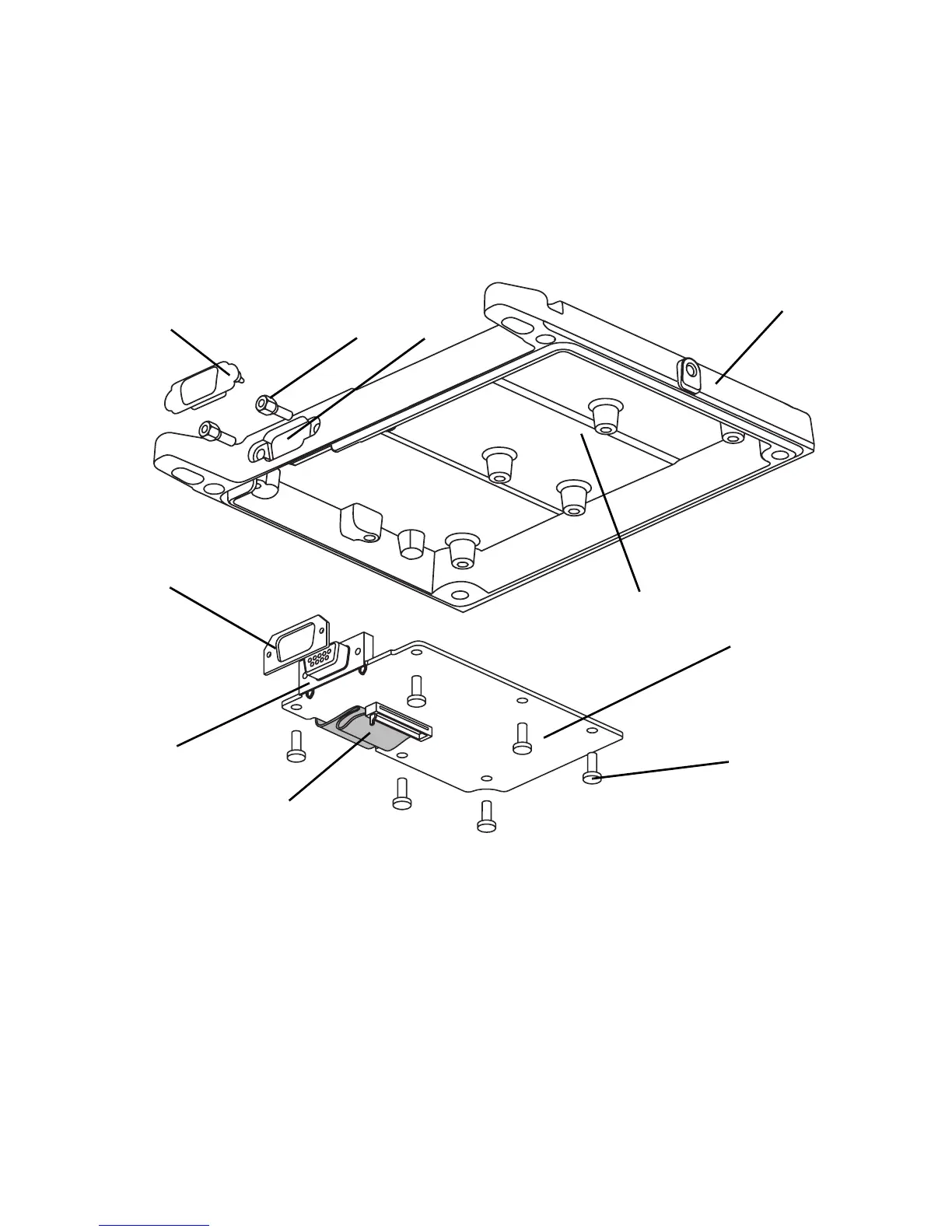

must be looped in the way shown in
the diagram.
11 Plug the unattached end of internal options connector loom
1)
into the internal
options connector on the radio main PCB.
b
radio lid
g
external options connector
c
external options connector bung
h
screw-lock fasteners
d
foam seal
i
mounting posts
e
external options connector cavity
j
M3x8 self-tapping screws
f
universal line interface board
1)
internal options loom
b
c
e
h
i
j
1)
d
f
g
