Tait TM9155 Service Manual

478 TOPA-SV-024 Test Unit TM9100 Service Manual
© Tait Electronics Limited August 2005

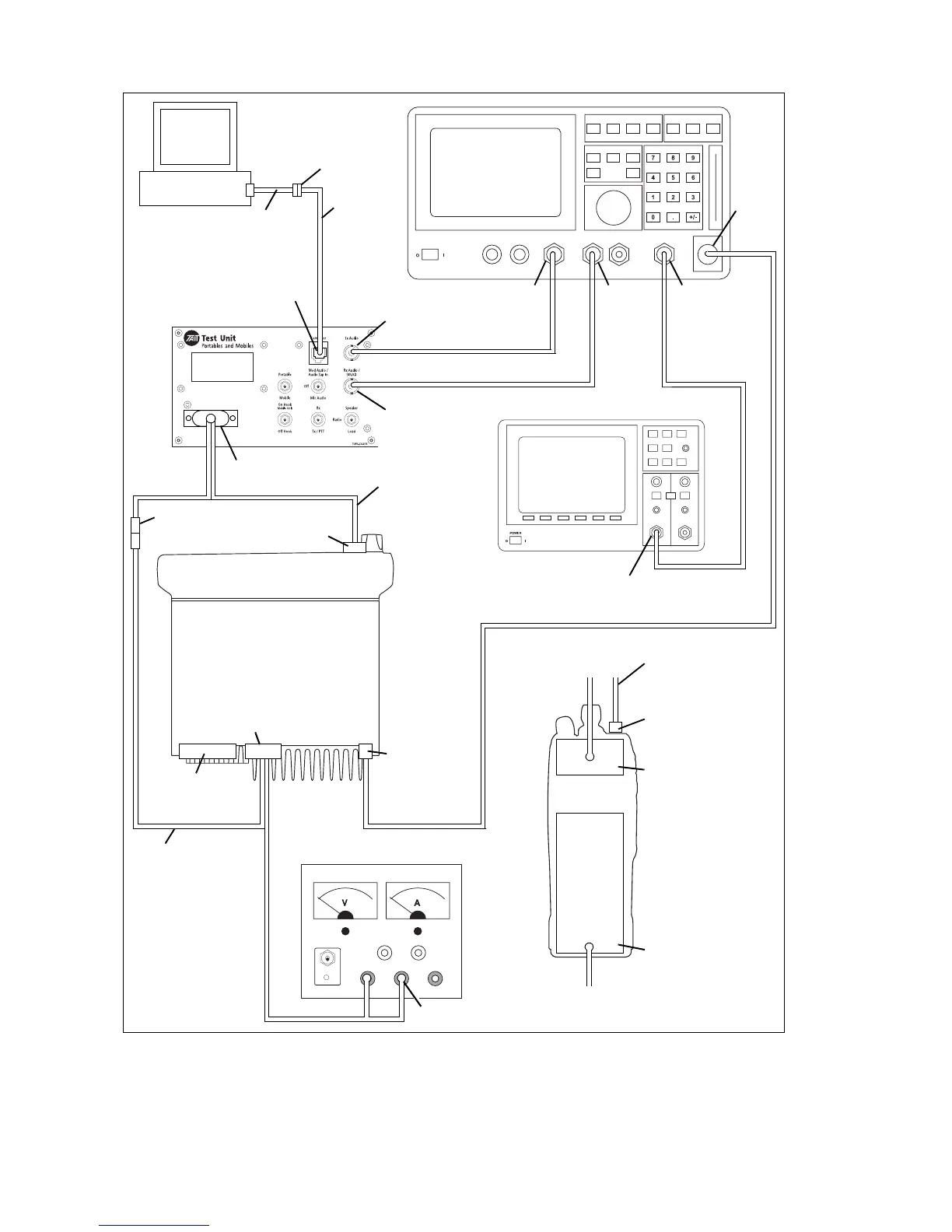

Figure 24.2 Test setup
radio connector
(DB15)
RF connector
(mini UHF or
BNC)
auxiliary
connector
(DB15)
microphone
connector (RJ45)
receive audio /
SINAD connector
(BNC)
transmit audio
connector (BNC)
computer
connector
(RJ12)
serial port
(DB9)
speaker
connector
banana plugs
AC input
(BNC)
audio
monitor
out (BNC)
AUDIO
IN HI
(BNC)
AUDIO
OUT
(BNC)
RF in/out
(N-type)
antenna
connector (SMA)
power
connector
TMAA23-02 cable
(50W/40W radios)
TMAA20-03 cable
(25W radios)
TMAA21-01 cable
TOPA-SV-024
TPA-SV-006
cable
TPA-SV-005
battery eliminator
(to DC power supply)
TPA-SV-011 cable
(to radio connector
of test unit)
TM9100 radio
TP9100
radio
TOPA-SV-006 cable
(to RF in/out of
RF comms set)
T950-001
USB1.1 to serial
DB9 adapter
(optional)
RF comms set
Test PC
Oscilloscope
DC power supply
