To return the frame (Frame Back) / to advance the frame (Frame Forward)
159
Chapter 6
1
2
3
4
5
6
7
8
9
10
11
XL08
(3) To move the cursor to "Specification by the number of stitches"
(4) To input the number of stitches and execute
1-3. To specify the needle position (stitch number) and perform FB/FF (Needle position
specification FB/FF)
1-3-1. Explanation on the screen

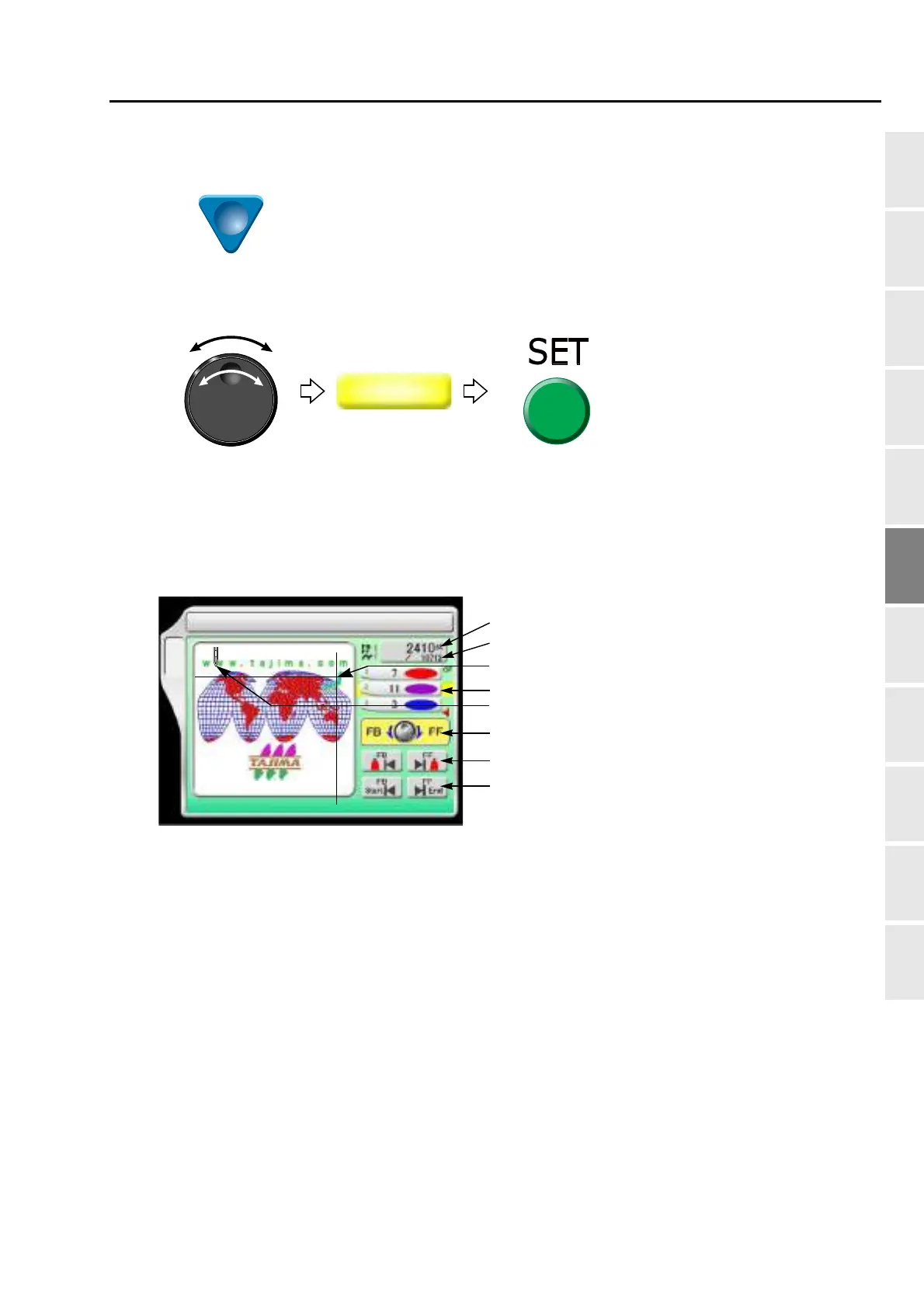

[a] Stitch No. after frame back or frame forward
[b] Current stitch No.
[c] Current needle position
The needle position after frame back or frame forward movement is shown.
[d] Current needle bar step
[e] Needle position after frame back or frame forward
[f] Turn the jog dial (1- stitch feed) or jog shuttle (high-speed feed) to select the desired stitch No.
after FB (frame back) or FF (frame forward).
[g] FB (frame back) or FF (framed forward) is performed by Stop Code.
[h] FB Start: Perform frame back to the start position of design.
FF End: Perform frame forward before the end point of design.
Pressing SET key will move the frame.
