Lubrication
239
Chapter 10
1
2
3
4
5
6
7
8
9
10
11

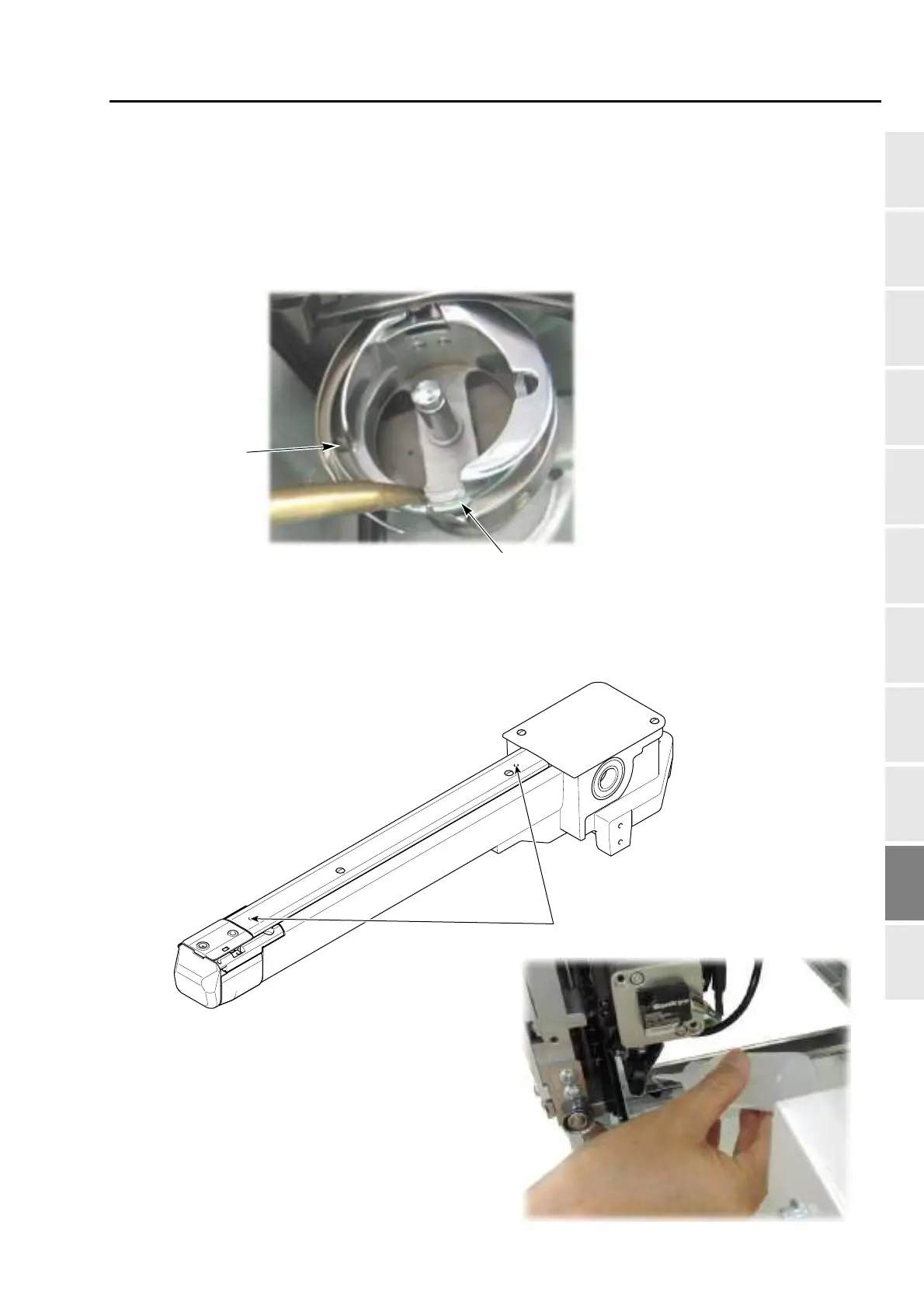

(2) Rotary hook
There are two lubricating spots (lubrication hole and raceway). When lubricating to the lubrication hole,
attach the nozzle (accessory) to the tip of the oiler. Cut the tip of the nozzle according to necessary
length.
(3) Cylinder bed
Raceway
Lubrication hole
Lubrication cycle: Once/5 to 6 hours
Lubrication cycle: Once/week
Rotary hook shaft
TP02
