Greasing
243
Chapter 10
1
2
3
4
5
6
7
8
9
10
11
4-2. TMBP-SC

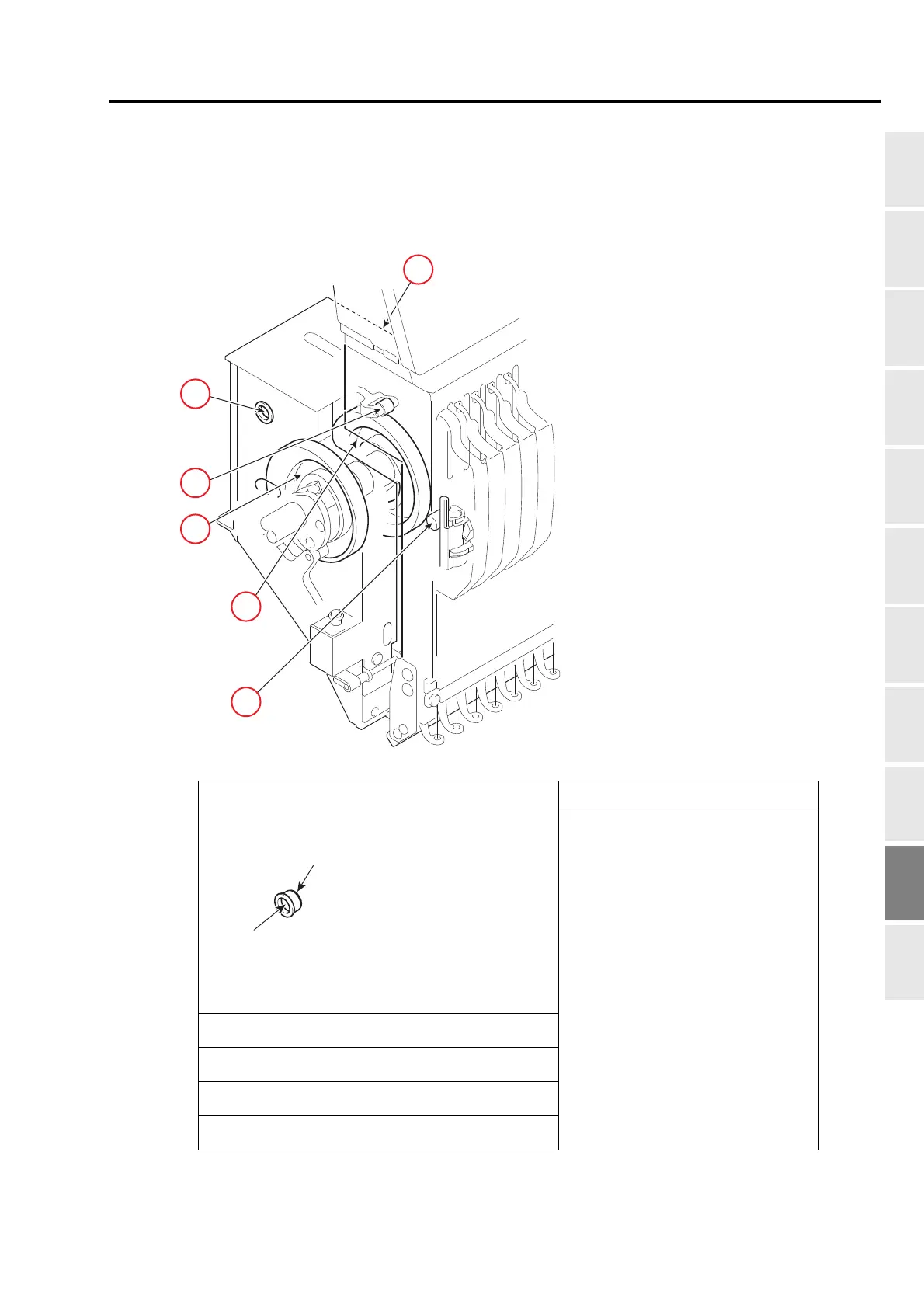

(1) Inside of head
Greasing cycle: Once/3 months
Greasing spot Grease to use
A: Take-up lever shaft holder
Inject grease from the hole of the bearing
case lid by using the syringe.
NIG LUBE PG: 300ML
B: Take-up lever drive lever roller
C: Presser foot cam
D: Take-up lever cam
E: Jump lever roller
A
A
B
C
D
E
Bearing case lid
Hole
SQ06
