Adjustment of Snap-fit middle thread guide
248
Chapter 10

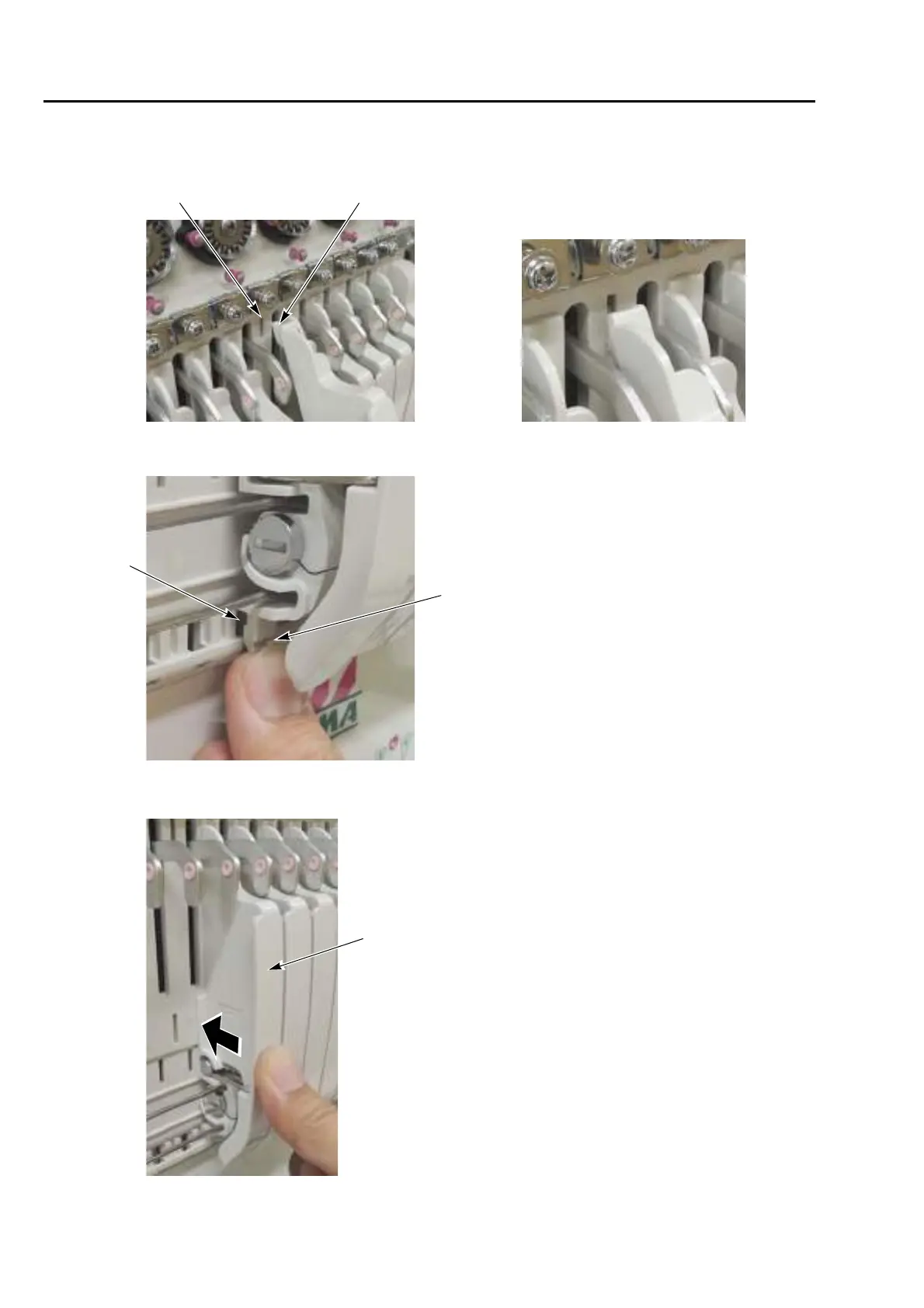

(4) Put the pawl in the slit (Photo A), push up the locking pawl with your thumb and put it in the hole (Photo B).
(5) Push the snap-fit middle thread guide securely to fit until it clicks into place.
PawlSlit
Photo A
Enlarged
Locking pawl
Photo B
Hole
Snap-fit middle thread guide
