Decision of the design start position
56
Chapter 4
TP02
5. Decision of the design start position
5-1. To check design size and setting contents of design (Check of design)
Check setting conditions such as size, scale up/down, repeat, etc of the design to be embroidered from now.
Use the checking result as rough standard when deciding the design start position.
This function will be explained in detail on the other page. (p.25)

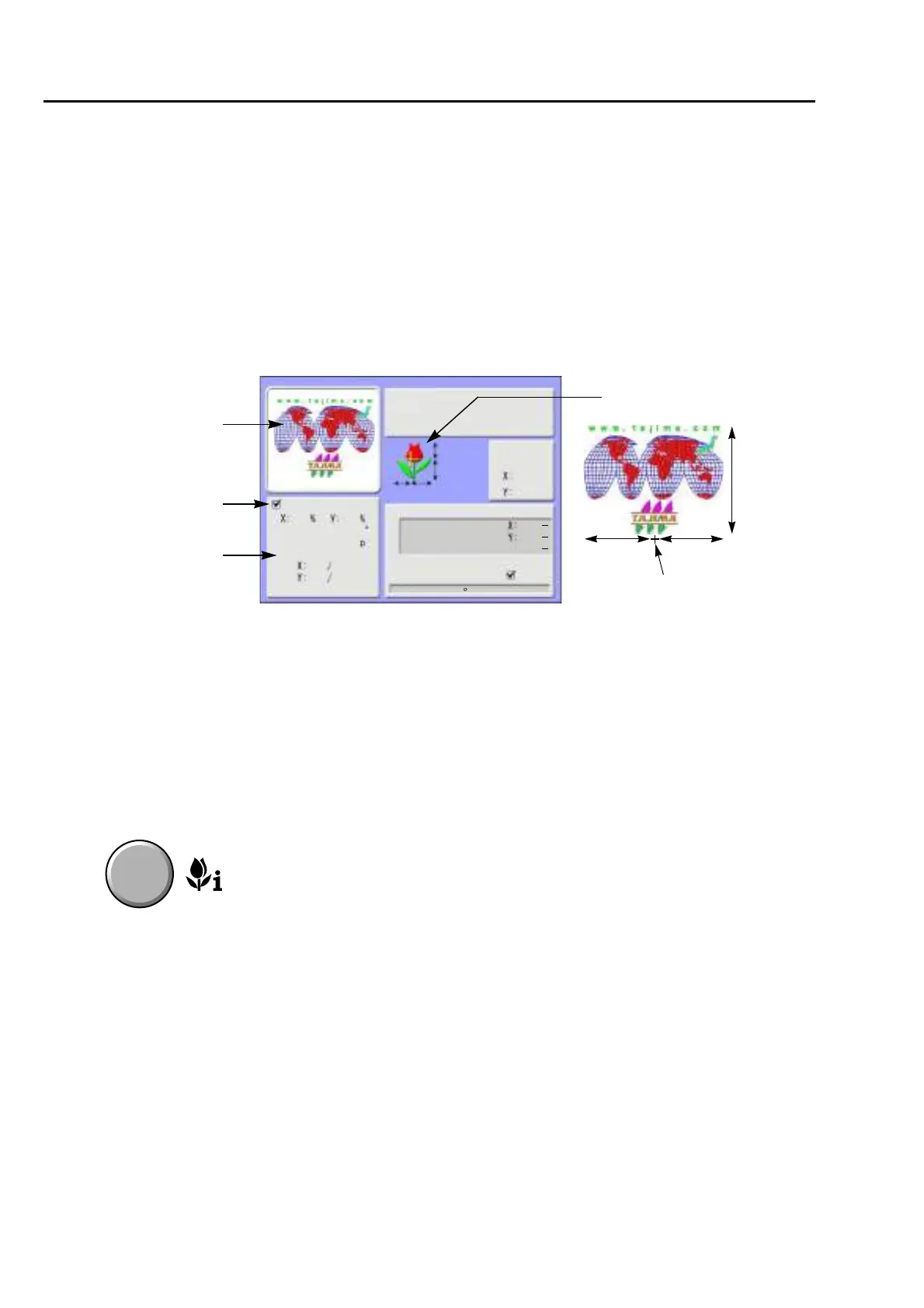

5-1-1. Explanation on the screen
5-1-2. How to operate
(1) To open screen
Press i key.
Current position
Stitch Counter
Function
Stitch length
Design counter
Step
Offset
Data conversion
Rotation
Reverse
Repeat
M.Repeat
0
88.4
0.0
-59.6 59.2
(From Start Point)
1/ 8
3. 10. 5. 7. 2. 7 8. 4.
80
3
3
-130.0
pp
0.0
G0041
W-Tajima
14117 st
80
100.0
0.0
0
0
Design to be
Design repetition
Scaling up/down/
reversion of design
Size of design (mm)
88.4
-59.6 59.2
Start point of design
The size after scaling up/down will be displayed
with the value based on the design start
position. This example shows the size of
vertical 88.4 mm and horizontal 118.8 mm.
Tiny stitch 214st
from now embroidered from now
After pressing this key again, setting contents in detail and the code No. occurred
up to now can be confirmed.
To return to the main screen, press E key.
