Decision of the design start position
59
Chapter 4
1
2
3
4
5
6
7
8
9
10
11
SQ06
(c) To move frame to the design start position

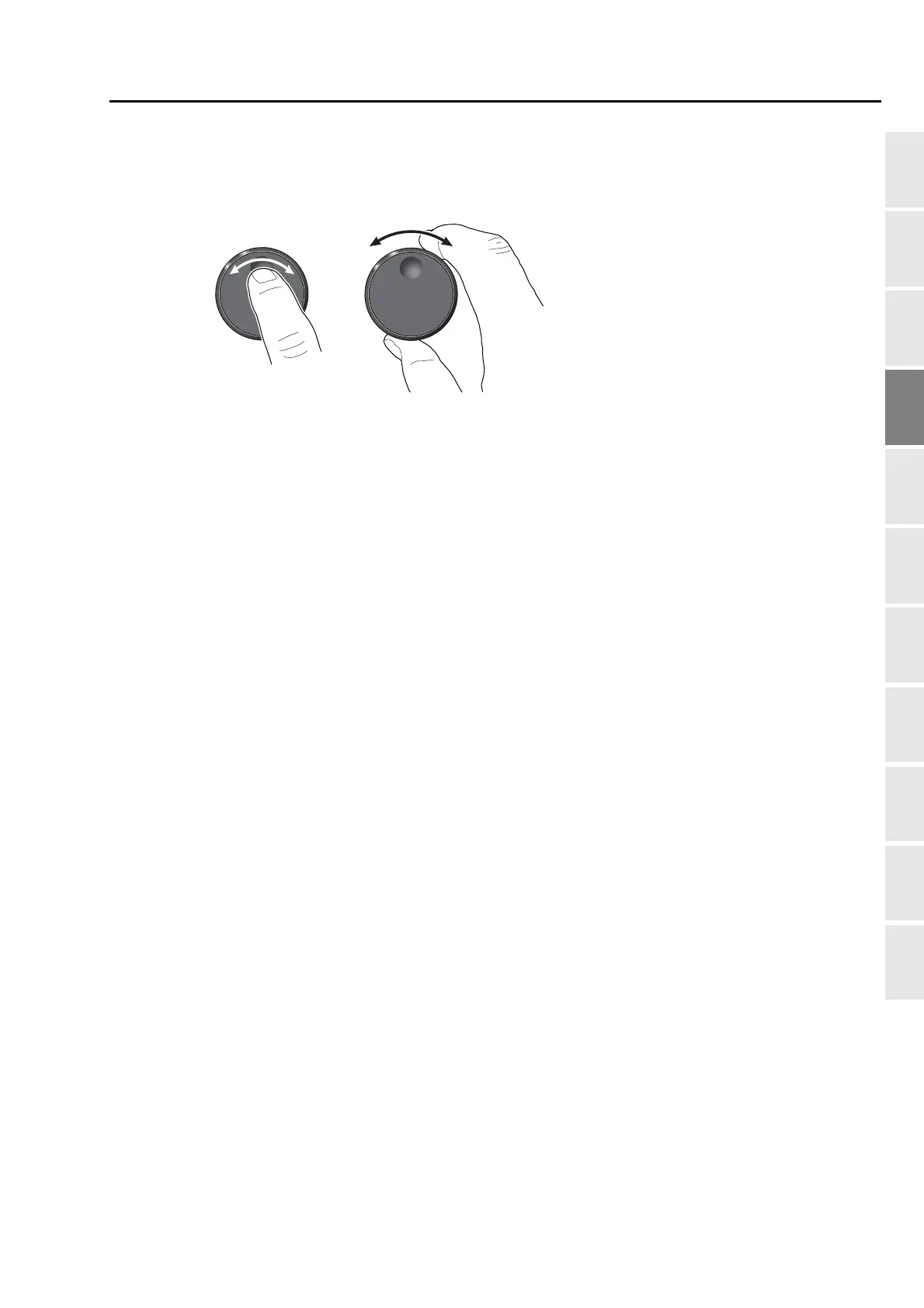

Turn the jog dial (low speed) / the jog shuttle (high speed). The frame will move.
Jog dial
Jog shuttle
