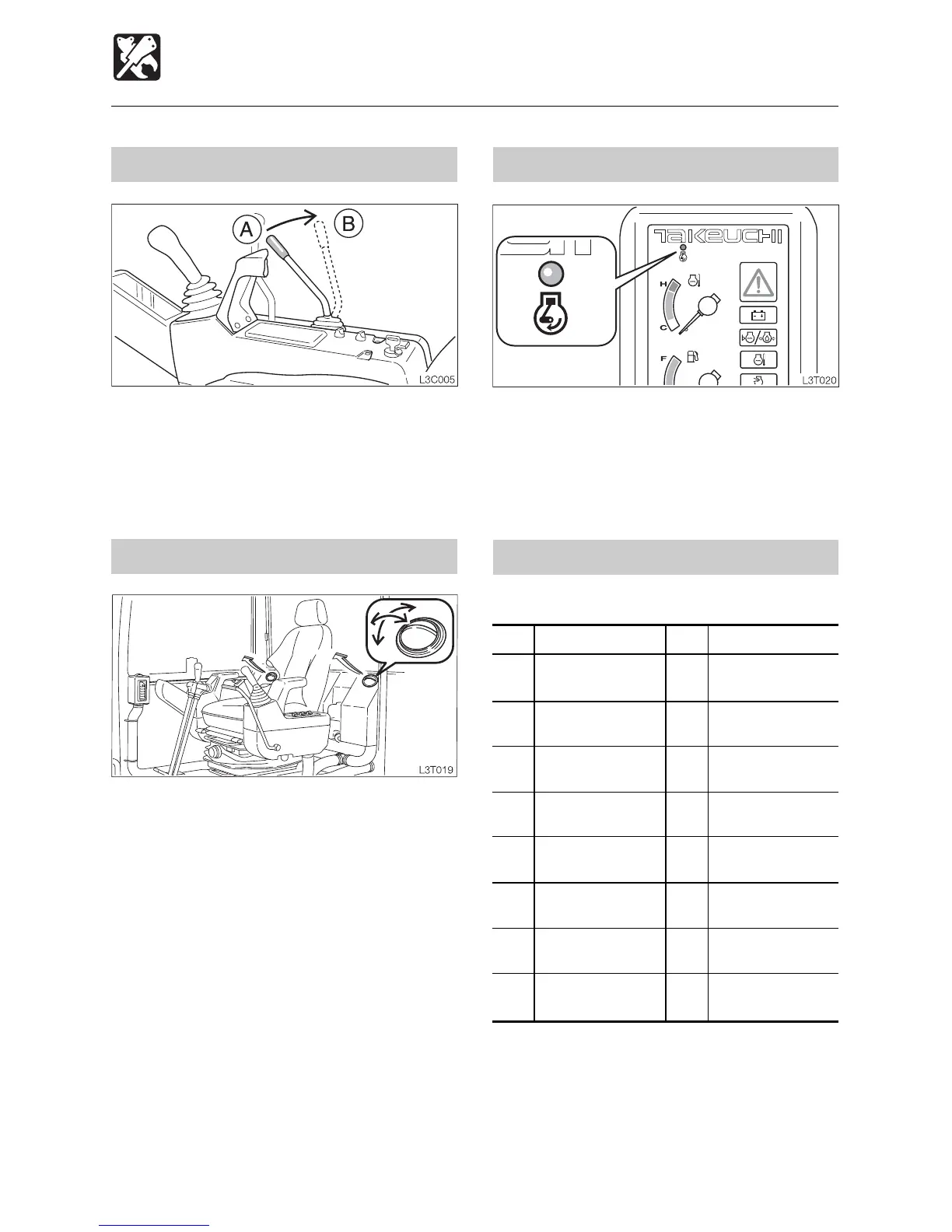

Throttle Lever
Throttle Lever
This controls the engine speed.
(A) .... Low idling
(B) .... Maximum speed
Air Conditioner Outlets
Move the louvers up and down or left and
right to adjust the air flow direction and
amount.
Fuse Layout and Circuits Protected
Capacity Capacity Protected circuit Protected circuit
15A Horn
10A Proportional control
solenoid
20A Lights
20A Wiper
5A Radio
5A Heater
30A Air conditioner
(option)
20A Instrument cluster
10A Deceleration
1A Stop solenoid hold
10A External power socket
10A Cigarette lighter
10A Lever lock
10A Automatic-glow
20A Throttle controller
(ACC)
20A Feed pump
Fuse Layout
This lamp lights when decel. button pressed,
the engine speed decreases.
Decel. Lamp
