Takeuchi TB175 User Manual

40
CONTROLS

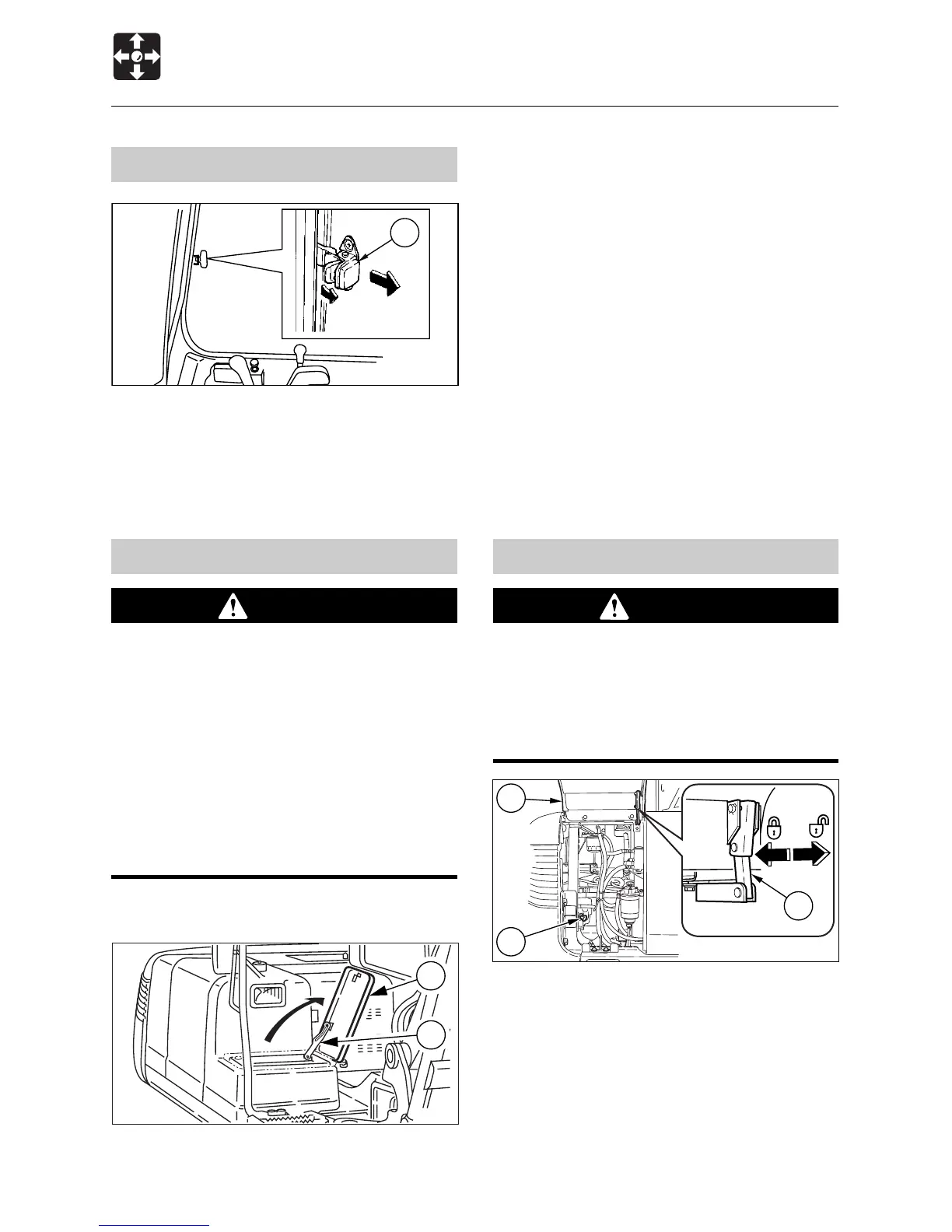

Side Window
1. Grasp the catch (7), unlock it and open
the side window.
2. To close the side window, close it until a
click is heard.
Front Cover (Tool Box)
CAUTION
¡¡
¡¡
¡Never jump off the machine. Use the
steps and handrails when climbing on
and off the machine, and always
support your body at three points with
your hands and feet.
¡¡
¡¡
¡When opening the front cover, open it
firmly to the stopped position.
¡¡
¡¡
¡When opening and closing the front
cover, be careful not to get your hands
or other parts of your body caught.
The grease gun and tools are stored under
the cover.
Doors and Covers
Opening
1. Insert the starter key and turn it
counterclockwise to unlock the front cover
(1).
2. Tilt the front cover (1) until it stops.
Closing
1. Support the front cover (1) by hand and
release the stay (2).
2. Close the front cover (1).
3. Insert the starter key and turn it clockwise
to lock the front cover (1).
L3B007
2
1
7
C4C007
L3B054
1
2
3
Side Covers
CAUTION
¡¡
¡¡
¡When opening the side cover, open it
firmly to the locked position.
¡¡
¡¡
¡When opening and closing the side
cover, be careful not to get your hands
or other parts of your body caught.
Opening
1. Insert the starter key and turn it
counterclockwise to unlock the side cover.
2. Lift the side cover fully until it stops.
3. Press the stay (2) to fix the side cover.
Engine hood unlock knob (3) is located
behind the right side cover.
