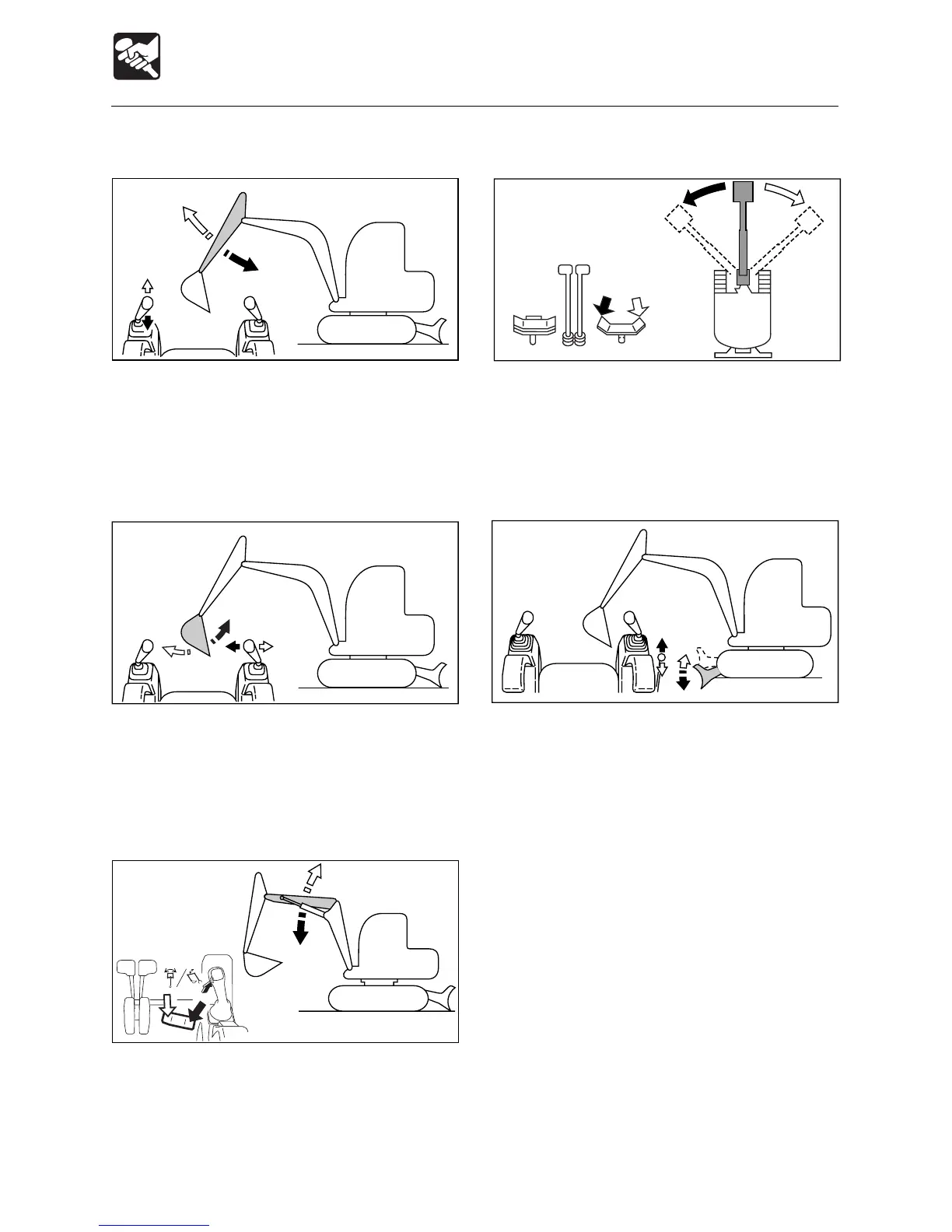

OPERATION
Machine Operation
Operating the Boom Swing
aTo swing left:
Press the left side of the pedal.
eTo swing right:
Press the right side of the pedal.
Operating the Dozer Blade
aTo lower the dozer blade:
Tilt the lever forward.
eTo raise the dozer blade:
Tilt the lever backward.
Operating the Arm
aTo contract the arm:
Tilt the left operating lever backward.
eTo extend the arm:
Tilt the left operating lever forward.
Operating the Bucket
aTo dig:
Tilt the right operating lever to the left.
eTo dump:
Tilt the right operating lever to the right.
Operating the Intermediate Boom
aTo lower the intermediate boom:
Press the selector button and step on the
right side of the pedal.
eTo raise the intermediate boom:
Press the selector button and step on the
left side of the pedal.
E4D023
C4D008
E4D024
E4D026
L3D012
