OPERATION

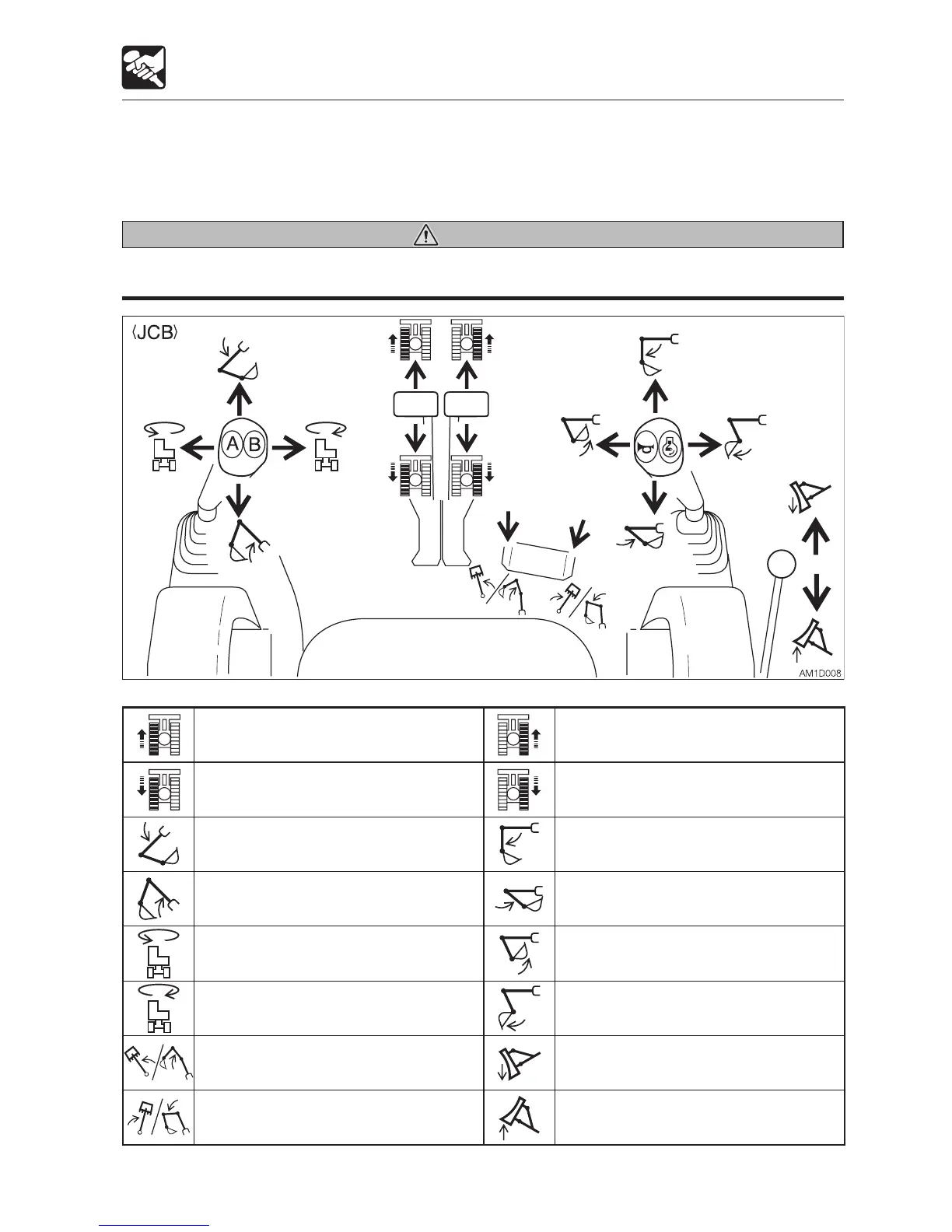

LEVER PATTERN (JCB PATTERN)
Warning
•Beforestartingoperation,carefullycheckwhichleverpatternyouaregoingtouse.
•ItisdescribedusingtheISOpatterninthismanual.
OPERATING THE MACHINE
Leftcrawlerforward Right crawler forward
Left
crawlerreverse Right crawler reverse
Boom lower Arm out
Boom raise Arm in
Upperstructure slew left Bucket load
Upperstructure slew right Bucket dump
Boom swing left
Second boom raise (2-piece boom)
Dozer blade lower
Boom swing right
Second boom lower (2-piece boom)
Dozer blade raise
