Takeuchi TB290 - Inspecting the Fusible Link

6-7
TROUBLESHOOTING
INSPECTING THE FUSIBLE LINK
IF A FUSE BLOWS

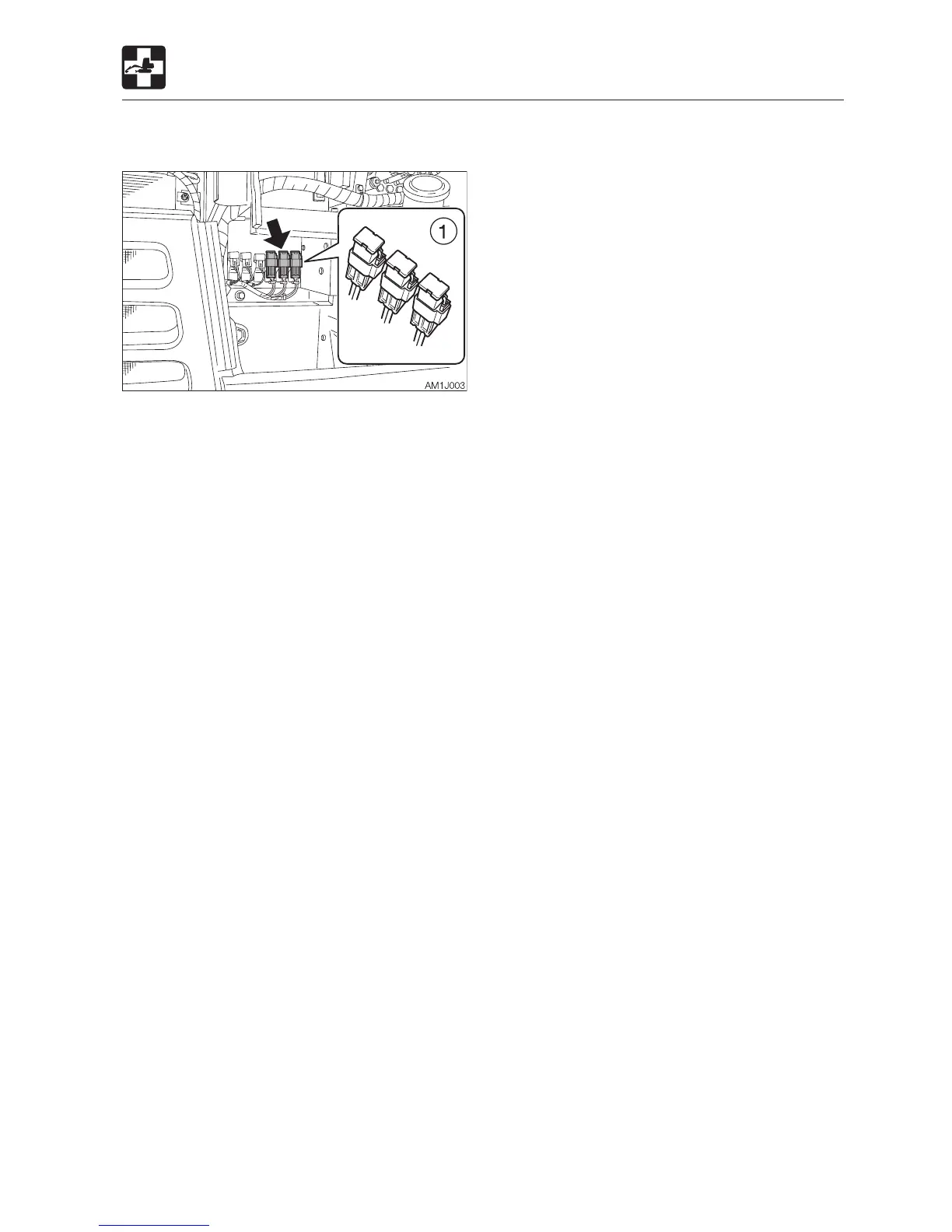

If the machine is not turned on after turning
the starter switch to the ON position, the
cartridge type fusible link (1) is likely blown.
Open the side cover and inspect it. If the
fusible link is blown, contact your sales or
service dealer.
Note: Fusible links are large type fuses used
inhighcurrentapplications.Likearegular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.
