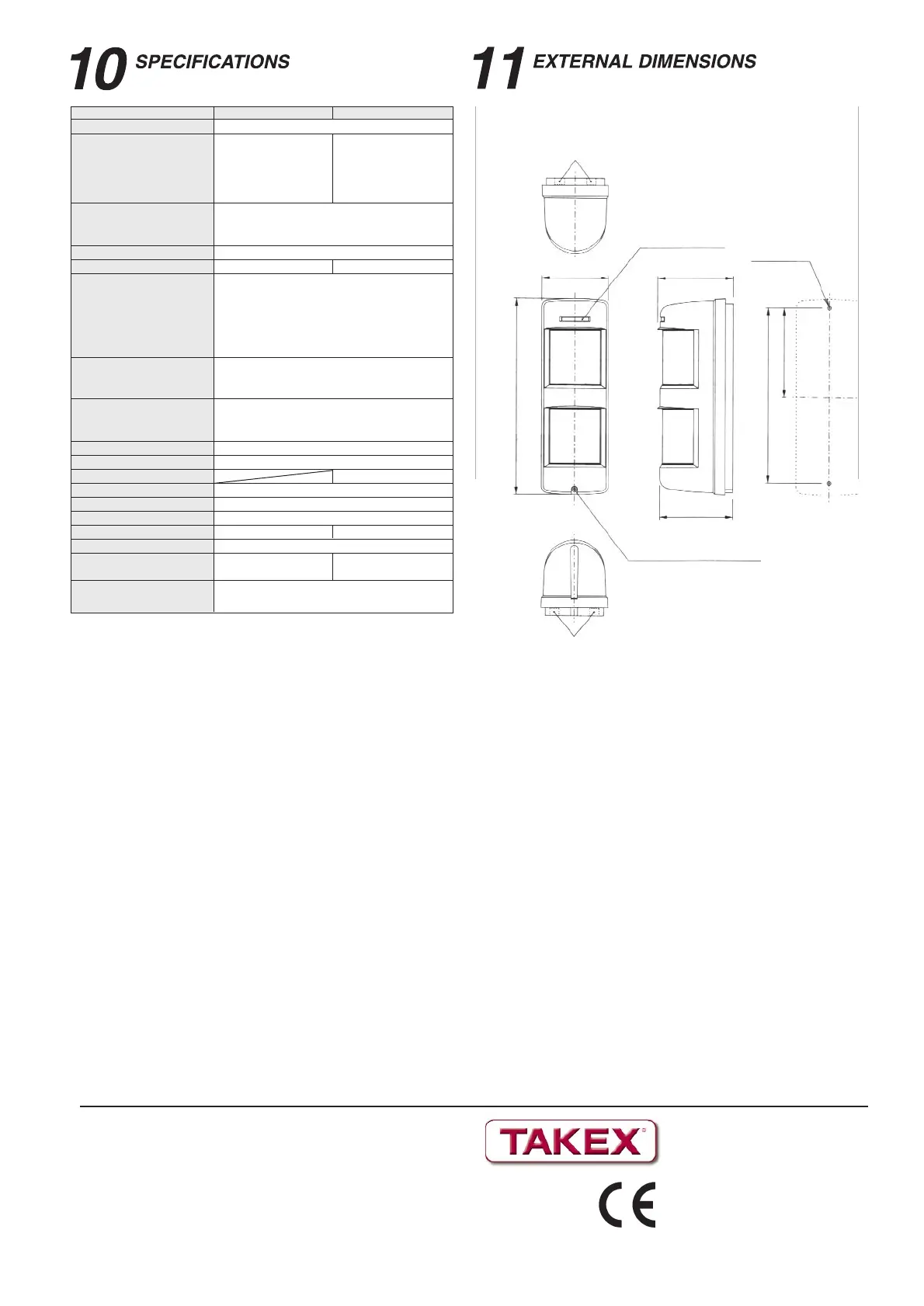

Takex MS-12TE - Page 8

Model MS-12TE MS-12FE
Detection system Passive infrared
Coverage When horizontal
detection Angle: 90º
Detection distance: 40’ (12m) 2 sets of MS-12TE
Horizontal zone: 7 zones
sensor (Full cover 180º)
Downward zone: 7 zones
Coverage adjustment Horizontal : ±90º
Detection distance : 10’~40’ (3m~12m) [7 steps]
(By adjusting vertical angle of downward curtain)
Supply voltage 12 to 30V DC (Non polarity)
Current consumption 35mA MAX 40mA MAX
Alarm output Dry contact relay output N.C/N.O. selectable N.C/N.O
*Contact capacity: 30V (AC/DC), 0.5A MAX
(Resistive load)
*Contact operation: Detection time+off delay
(2sec.-5min.approx)
*Day light : 10 lux (night) - (day & night)
Tamper output Dry contact relay output N/C
*Contact capacity: 30V (AC/DC), 0.5A MAX
(Resistive load)
Operation LED Red LED
Blinking at Warming up
Lighting at alarm (LED disabled)
Counts selectable switch Once/three times (with a switch)
Sensitivity adjustment *Approx. 30% (L) – Approx. 170% (H) (By volume)
Detection mode AND/OR selectable
Connection Terminals
Ambient temperature -4ºF to 122ºF (-20ºC to 50ºC )
Mounting position Indoor/Outdoor (Height 0.8 – 1.2m)
Weight 13.7oz (390g) 16.5oz (470g)
Appearance Body: AES resin Lens: PE resin
Accessory Tapping screw: 2 Tapping screw: 2
Area masking sheet: 1 Area masking sheet: 2
Optional Wall mount attachment (BW-24)
Pole attachment (BP-22)
TAKEX Europe Limited.
Aviary Court, Wade Road,
Basingstoke,
HANTS RG24 8PE
UK
Tel. +44(0)1256-475555
Fax. +44(0)1256-466268
Email: sales@takexeurope.com
Webpage: www.takexeurope.com
MS-12FE SI-10/04 (CRI 175)
KNOCKOUT
11.5mmX8mm
(0.45”X0.31”)
KNOCKOUT
11.5mmX8mm
(0.45”X0.31”)
OPERATION LED
80mm
(3.15”)
234mm (9.21”)
209.5mm (8.25”)
107mm (4.21”)
91mm
(3.58”)
88mm
(3.46”)
MOUNT HOLE
COVER LOCKING SCREW
ø4.5mm
2-ø0.18”
Limited Warranty
All TAKEX Products are subject to 5 years warranty.
All other warranty periods agreed are subject to a formal written agreement.
During the warranty period, TAKEX Europe Ltd. will repair or replace, as its sole
option, free of charge, any defective parts returned prepaid.
Our warranty does not cover damage or failure caused by Acts of God, abuse, misuse,
abnormal usage, faulty installation, improper maintenance, unauthorised customer
modifications or any repairs other than those carried out by TAKEX Europe Ltd.
