9.4.1 Measurement and reporting interval
Both the measurement interval and reporting interval can be set with downlink commands.
The default setting is a measurement interval of 60 sec. The default reporting interval is every
20
th
measurement interval.

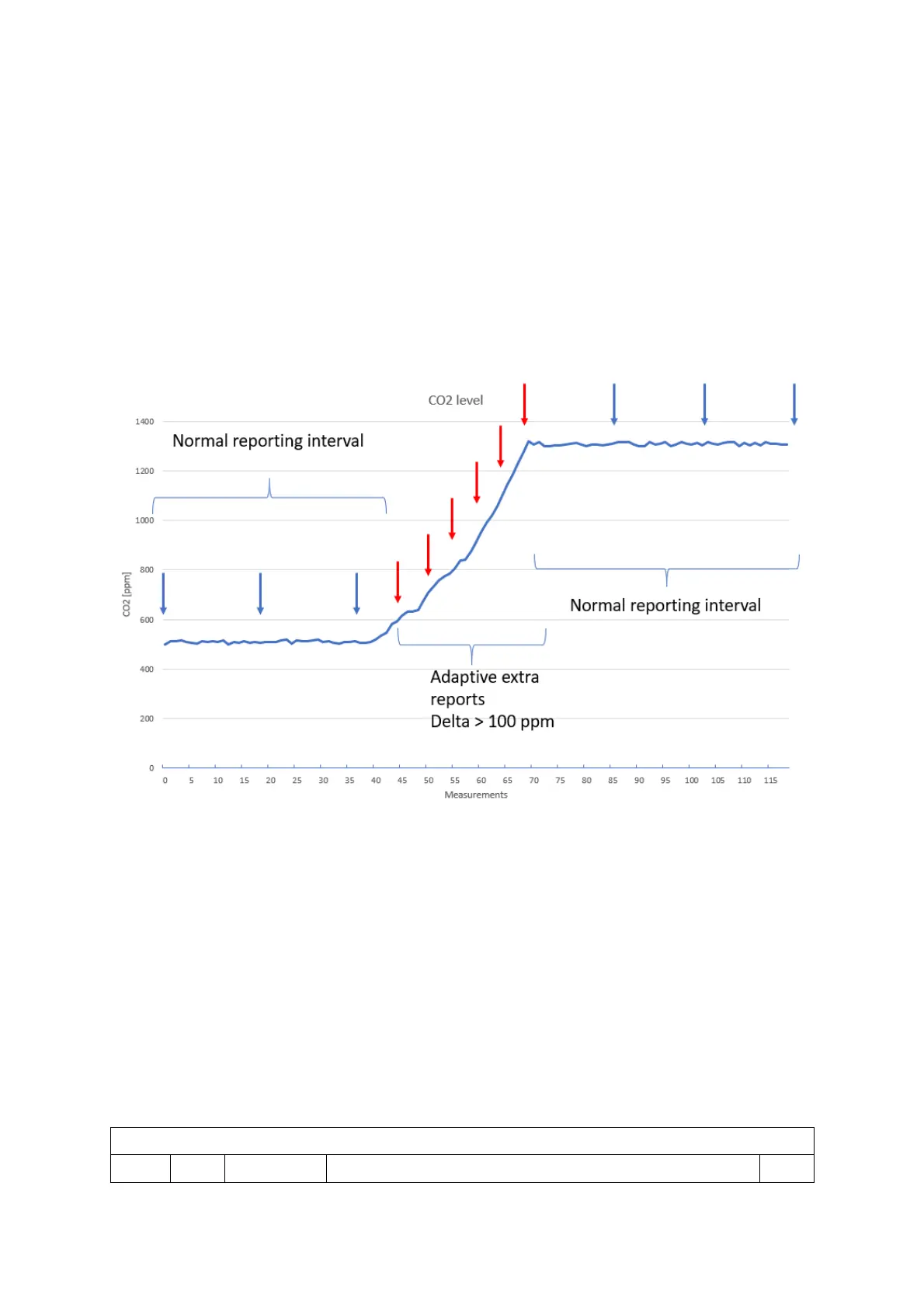

The device sends extra reports when above a configurable CO2 level, default setting 750 ppm
and larger difference than 100 ppm from last report.
The reporting interval counting is reset after an extra measurement report
9.4.2 Reset device
The device can be reset by three methods, long press on button, removal of battery (note the
internal SuperCap will power the device for approximately 24 hours without battery), or
forced into Joining state by OTA commands.
Example: Remote device reset: Port 1: 0305
9.5 Uplink query response
Uplink messages are sent on port 1 with the following heading:
