TX7210 Addressable Single Input/Output Module
Installation & Operation Manual
4050100267-Rev1.6-0916
TANDA UK
Specifications are subject to change without prior notice
6
Signal Monitoring When Off (normal) When On (active)
Input YES (Optional) Normally Open Normally Close
Relay Output Yes
Normally Open Normally Close
Normally Close Normally Open
Power Limited Output Yes +1.5-3Vdc +24Vdc

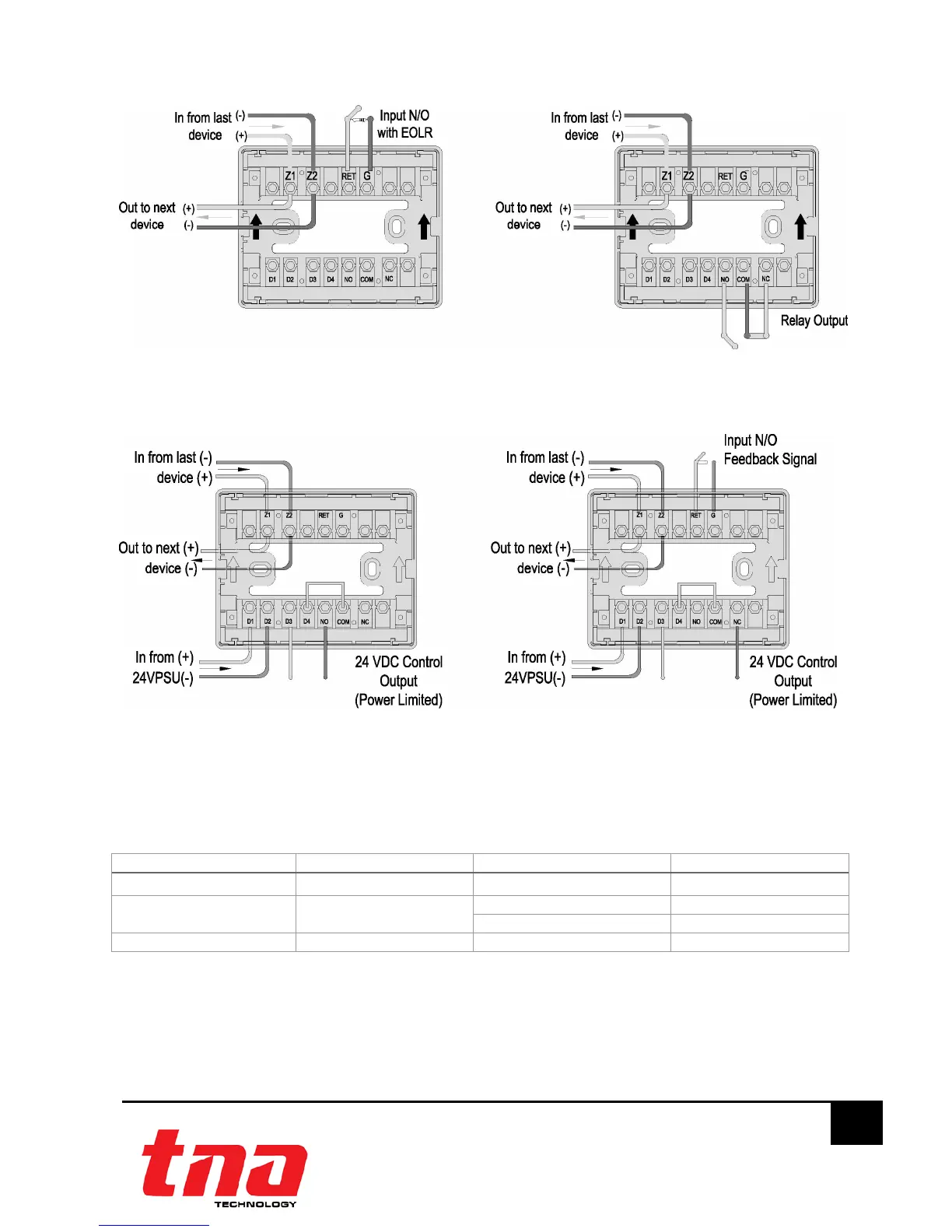

Figure 2: Input Wiring Details
Note: Change the parameter Input Check into 3Y
(Loop Powered)
Figure 3: Relay Output Wiring Details
(Loop Powered) mostly used
Figure 4: Control Output Wiring Details
(With External Power Supply)
Figure 5: Control Output with Feedback
Signal Wiring Details
(With External Power Supply)
