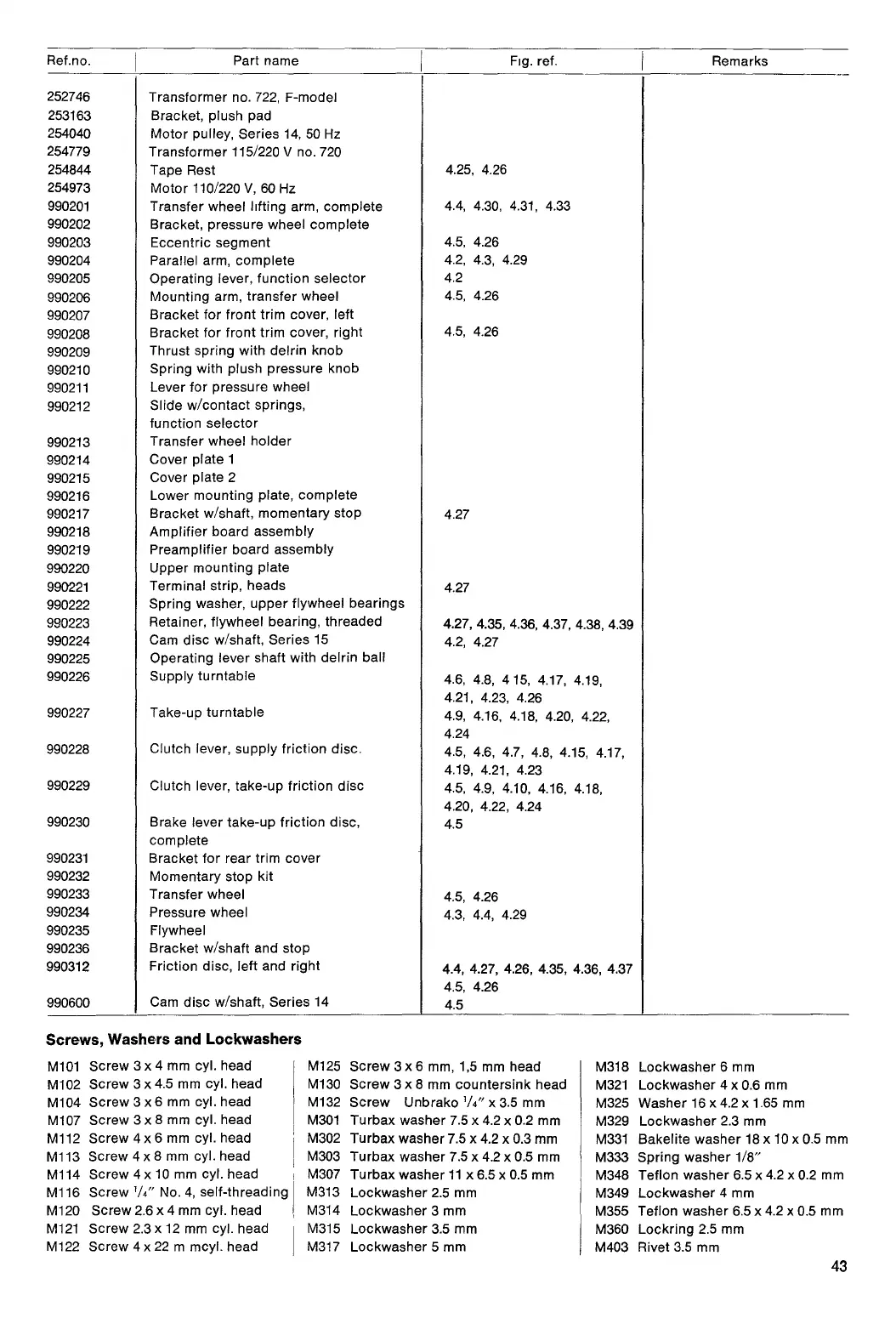

Ref.no.
Part name
Fig. ref.
Remarks
252746
Transformer no. 722, F-model
253163
Bracket, plush pad
254040
Motor pulley, Series 14, 50 Hz
254779
Transformer 115/220 V no. 720
254844
Tape Rest
4.25, 4.26
254973
Motor 110/220 V, 60 Hz
990201
Transfer wheel lifting arm, complete
4.4, 4.30, 4.31, 4.33
990202
Bracket, pressure wheel complete
990203
Eccentric segment
4.5, 4.26
990204
Parallel arm, complete
4.2, 4.3, 4.29
990205
Operating lever, function selector
4.2
990206
Mounting arm, transfer wheel
4.5, 4.26
990207
Bracket for front trim cover, left
990208
Bracket for front trim cover, right
4.5, 4.26
990209
Thrust spring with delrin knob
990210
Spring with plush pressure knob
990211
Lever for pressure wheel
990212
Slide w/contact springs,
function selector
990213
Transfer wheel holder
990214
Cover plate 1
990215
Cover plate 2
990216
Lower mounting plate, complete
990217
Bracket w/shaft, momentary stop
4.27
990218
Amplifier board assembly
990219
Preamplifier board assembly
990220
Upper mounting plate
990221
Terminal strip, heads
4.27
990222
Spring washer, upper flywheel bearings
990223
Retainer, flywheel bearing, threaded
4.27, 4.35, 4.36, 4.37, 4.38, 4.39
990224
Cam disc w/shaft, Series 15
4.2, 4.27
990225
Operating lever shaft with delrin ball
990226
Supply turntable
4.6,
4.8,
415, 4.17,
4.19,
4.21, 4.23, 4.26
990227
Take-up turntable
4.9, 4.16,
4.18, 4.20, 4.22,
4.24
990228
Clutch lever, supply friction disc.
4.5, 4.6, 4.7,
4.8, 4.15,
4.17,
4.19, 4.21, 4.23
990229
Clutch lever, take-up friction disc
4.5, 4.9,
4.10, 4.16,
4.18,
4.20, 4.22, 4.24
990230
Brake lever take-up friction disc,
complete
4.5
990231
Bracket for rear trim cover
990232
Momentary stop kit
990233
Transfer wheel
4.5, 4.26
990234
Pressure wheel
4.3, 4.4, 4.29
990235
Flywheel
990236
Bracket w/shaft and stop
990312
Friction disc, left and right
4.4, 4.27, 4.26, 4.35, 4.36, 4.37
4.5, 4.26
990600
Cam disc w/shaft, Series 14
4.5
Screws, Washers and Lockwashers
M101 Screw 3 x 4 mm cyl. head
M125
Screw 3 x 6 mm, 1,5 mm head
M318
Lockwasher 6 mm
M102 Screw 3 x 4.5 mm cyl. head
M130
Screw 3 x 8 mm countersink head
M321
Lockwasher 4 x 0.6 mm
M104 Screw 3 x 6 mm cyl. head
M132
Screw
Unbrako
1
/
4
" x 3.5 mm
M325
Washer 16 x 4.2 x 1.65 mm
M107 Screw 3 x 8 mm cyl. head
M301
Turbax washer 7.5 x 4.2 x 0.2 mm
M329
Lockwasher 2.3 mm
M112 Screw 4 x 6 mm cyl. head
M302
Turbax washer 7.5 x 4.2 x 0.3 mm
M331
Bakelite washer 18 x 10 x 0.5 mm
M113 Screw 4 x 8 mm cyl. head
M303
Turbax washer 7.5 x 4.2 x 0.5 mm
M333
Spring washer 1/8"
M114 Screw 4 x 10 mm cyl. head
M307
Turbax washer 11 x 6.5 x 0.5 mm
M348
Teflon washer 6.5 x 4.2 x 0.2 mm
M116 Screw
1
/
4
" No. 4, self-threading
M313
Lockwasher 2.5 mm
M349
Lockwasher 4 mm
M120
Screw 2.6 x 4 mm cyl. head
M314
Lockwasher 3 mm
M355
Teflon washer 6.5 x 4.2 x 0.5 mm
M121 Screw 2.3 x 12 mm cyl. head
M315
Lockwasher 3.5 mm
M360
Lockring 2.5 mm
M122 Screw 4 x 22 m mcyl. head
M317
Lockwasher 5 mm
M403
Rivet 3.5 mm
43
