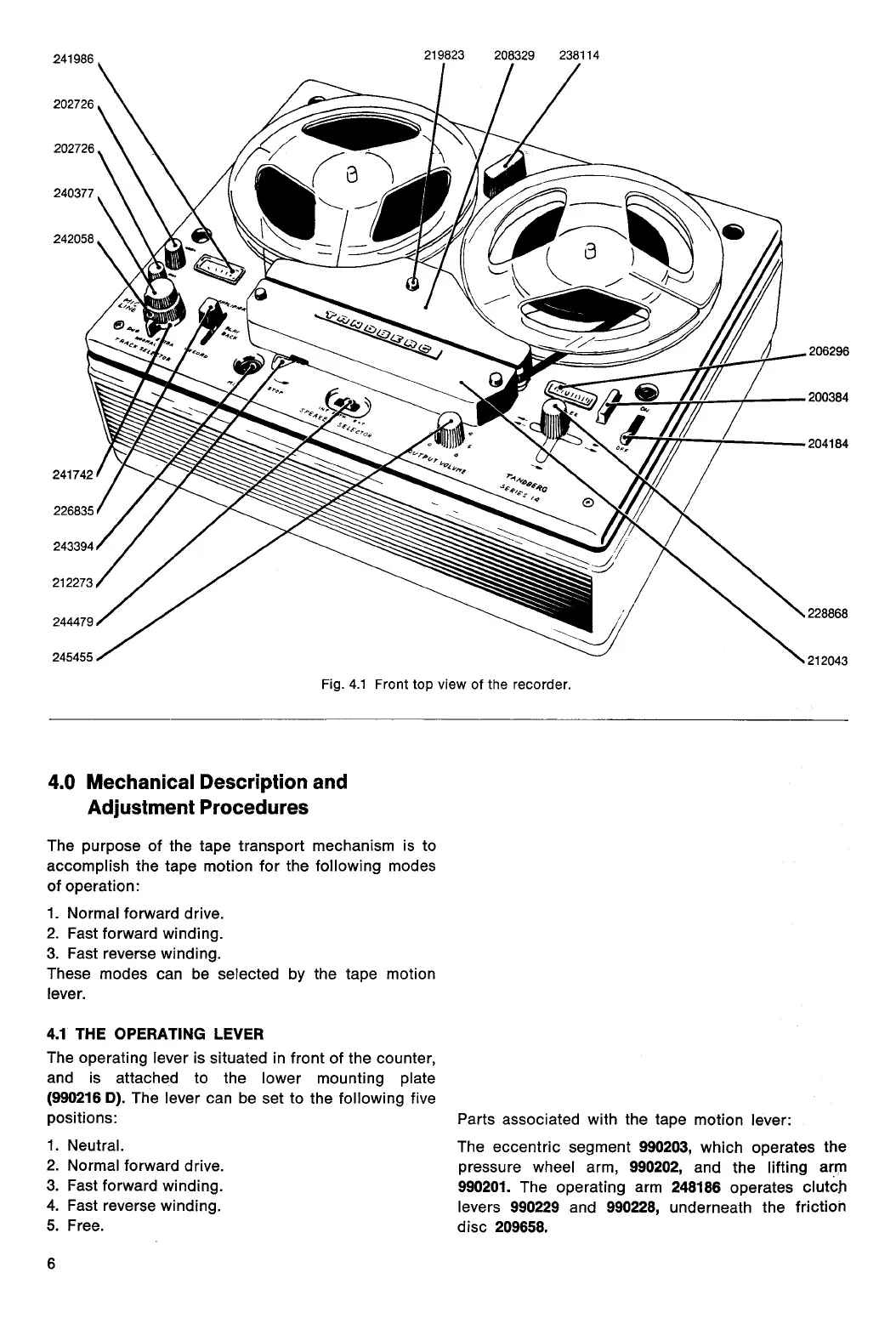

Fig. 4.1 Front top view of the recorder.
4.0 Mechanical Description and
Adjustment Procedures
The purpose of the tape transport mechanism is to
accomplish the tape motion for the following modes
of operation:
1.
Normal forward drive.
2.
Fast forward winding.
3.
Fast reverse winding.
These modes can be selected by the tape motion
lever.
4.1 THE OPERATING LEVER
The operating lever is situated in front of the counter,
and is attached to the lower mounting plate
(990216 D).
The lever can be set to the following five
positions:
1.
Neutral.
2.
Normal forward drive.
3.
Fast forward winding.
4.
Fast reverse winding.
5.
Free.
6
Parts associated with the tape motion lever:
The eccentric segment
990203,
which operates the
pressure wheel arm,
990202,
and the lifting arm
990201.
The operating arm
248186
operates clutch
levers
990229
and
990228,
underneath the friction
disc
209658.
