0
•
MIC
1
0
3
O2 1
Fig. 3.2.
Shielded microphone cable
RADIO
To recorder or amplifier
3
0
2
1
From radio
3.3 MODELS 15GT, MASTER AND 1-10
MIC.
•
From pick-up

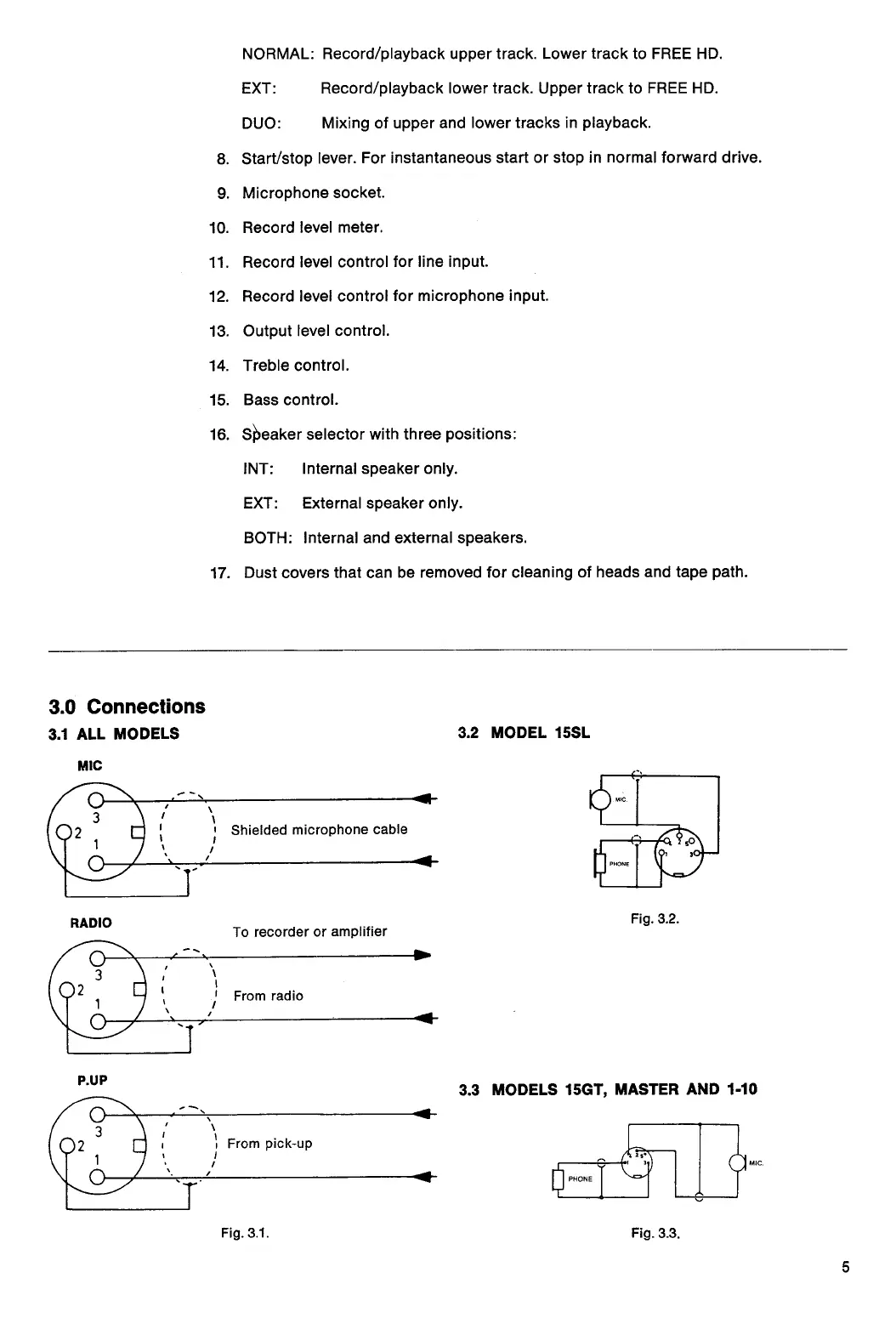

NORMAL: Record/playback upper track. Lower track to FREE HD.
EXT:
Record/playback lower track. Upper track to FREE HD.
DUO:
Mixing of upper and lower tracks in playback.
8.
Start/stop lever. For instantaneous start or stop in normal forward drive.
9.
Microphone socket.
10.
Record level meter.
11.
Record level control for line input.
12.
Record level control for microphone input.
13.
Output level control.
14.
Treble control.
15.
Bass control.
16.
Seaker selector with three positions:
INT:
Internal speaker only.
EXT:
External speaker only.
BOTH: Internal and external speakers.
17.
Dust covers that can be removed for cleaning of heads and tape path.
3.0 Connections
3.1 ALL MODELS
3.2 MODEL 15SL
0
Fig. 3.1.
Fig. 3.3.
5
