TANDBERG TCD 310 Service Manual

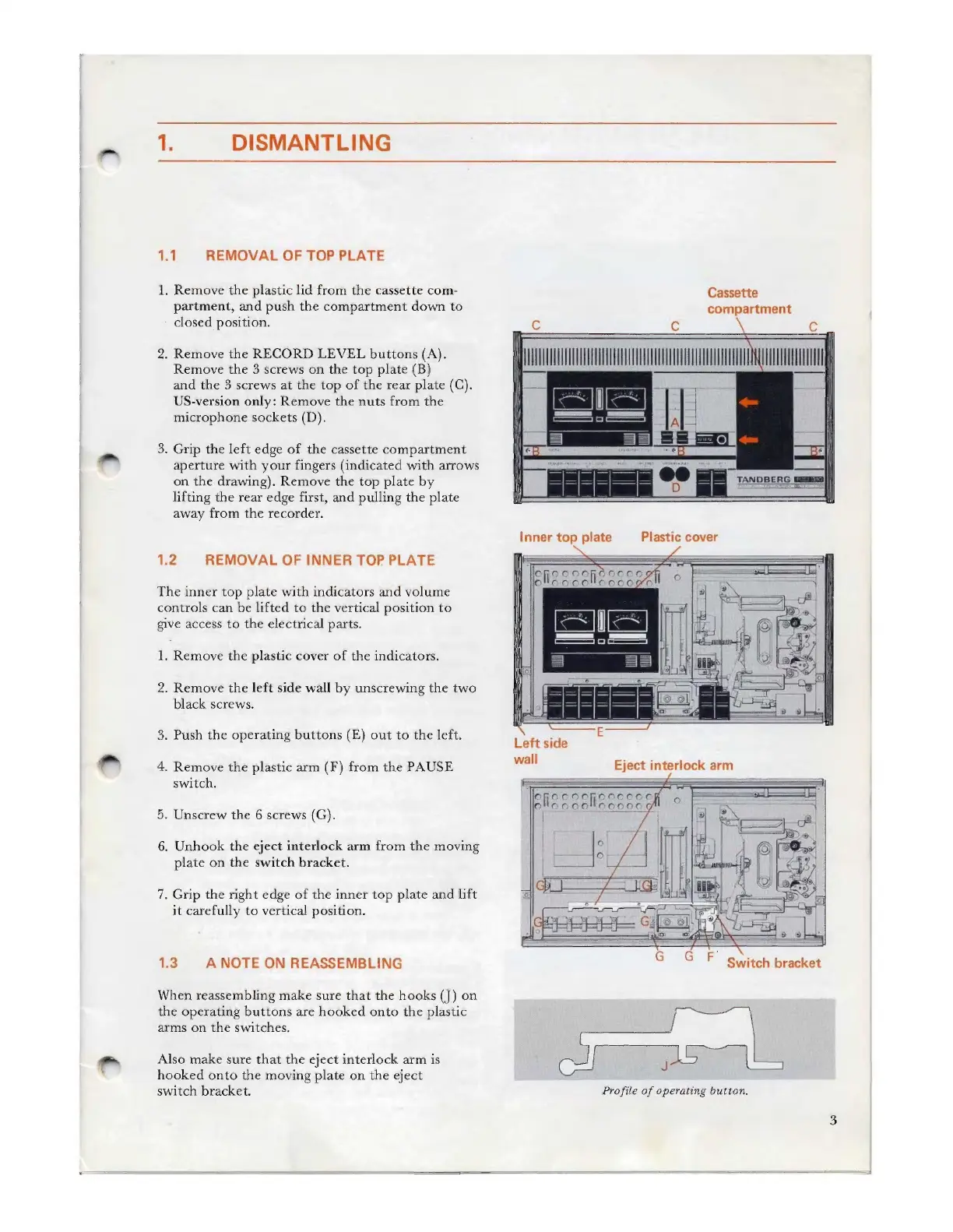

1. DISMANTLING
Bal REMOVAL OF TOP PLATE
1. Remove the plastic lid from the cassette com-
partment, and push the compartment down to
closed position.
2. Remove the RECORD LEVEL buttons (A).
Remove the 3 screws on the top plate (B)
and the 3 screws at the top of the rear plate (C).
US-version only: Remove the nuts from the
microphone sockets (D).
3. Grip the left edge of the cassette compartment
aperture with your fingers (indicated with arrows
on. the drawing). Remove the top plate by
lifting the rear edge first, and pulling the plate
away from the recorder.
1.2 REMOVAL OF INNER TOP PLATE
The inner top plate with indicators and volume
controls can be lifted to the vertical position to
give access to the electrical parts.
1. Remove the plastic cover of the indicators.
2. Remove the left side wall by unscrewing the two
black screws.
3. Push the operating buttons (E) out to the left.
4. Remove the plastic arm (F) from the PAUSE
switch.
5. Unscrew the 6 screws (G).
6. Unhook the eject interlock arm from the moving
plate on the switch bracket.
7. Grip the right edge of the inner top plate and lift
it carefully to vertical position.
1.3 ANOTE ON REASSEMBLING
When reassembling make sure that the hooks (J) on
the operating buttons are hooked onto the plastic
arms on the switches.
Also make sure that the eject interlock arm is
hooked onto the moving plate on the eject
switch bracket.
Cassette
compartment
Plastic cover Inner top plate
Left side
wall
Oe ec OCpoocoo oF
(ohkenonek chutenekokekenes
i | j
Profile of operating button,

TANDBERG TCD 310 Specifications

General

Weight	7.5kg
Track System	4-track, 2-channel stereo
Tape Speed	4.76 cm/s
Heads	1 x record/playback, 1 x erase
Type	Cassette Deck
Frequency Response	30 Hz to 16 kHz (Chrome tape)
Signal to Noise Ratio	58dB
Wow and Flutter	0.07 %
Motor	DC servo motor
Tape Type	CrO2
Power Supply	220V
Input	Line In
