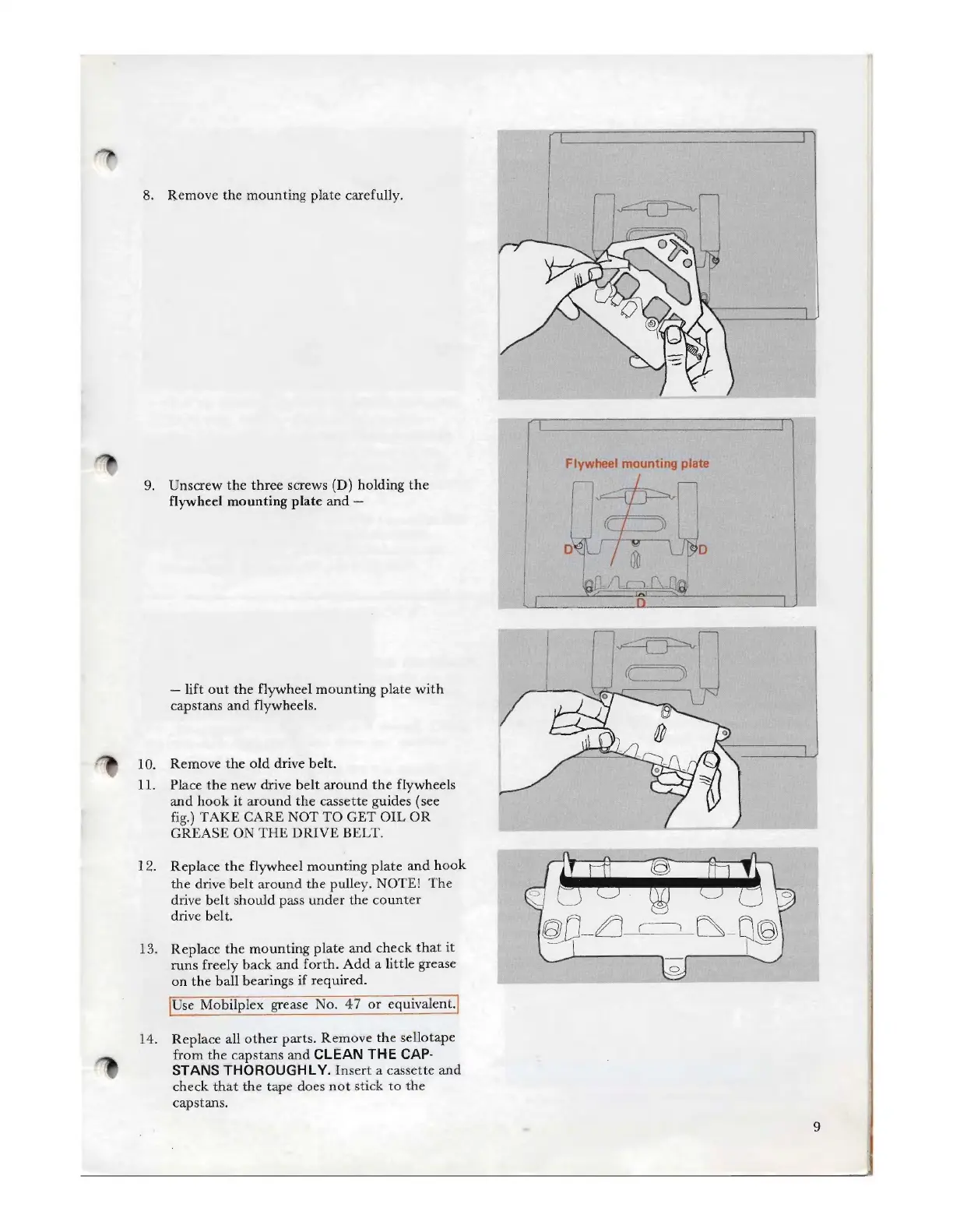

8.
Remove
the
mounting
plate
carefully.
1
12.
13.
14.
Unscrew
the
three
screws
(D)
holding
the
flywheel
mounting
plate
and
lift
out
the
flywheel
mounting
plate
with
capstans
and
flywheels.
Remove
the
old
drive
belt.
Place
the
new
drive
belt
around
the
flywheels
and
hook
it
around
the
cassette
guides
(see
fig.)
TAKE
CARE
NOT
TO
GET
OIL
OR
GREASE
ON
THE
DRIVE
BELT.
Replace
the
flywheel
mounting
plate
and
hook
the
drive
belt
around
the
pulley.
NOTE!
The
drive
belt
should
pass
under
the
counter
drive
belt.
Replace
the
mounting
plate
and
check
that
it
runs
freely
back
and
forth.
Add
a
little
grease
on
the
ball
bearings
if
required.
se
Mobilplex
grease
No.
47
or
equivalent.
Replace
all
other
parts.
Remove
the
sellotape
from
the
capstans
and
CLEAN
THE
CAP-
STANS
THOROUGHLY.
Insert
a
cassette
and
check
that
the
tape
does
not
stick
to
the
capstans.
