• TANDY COMPUTER PRODUCTS •

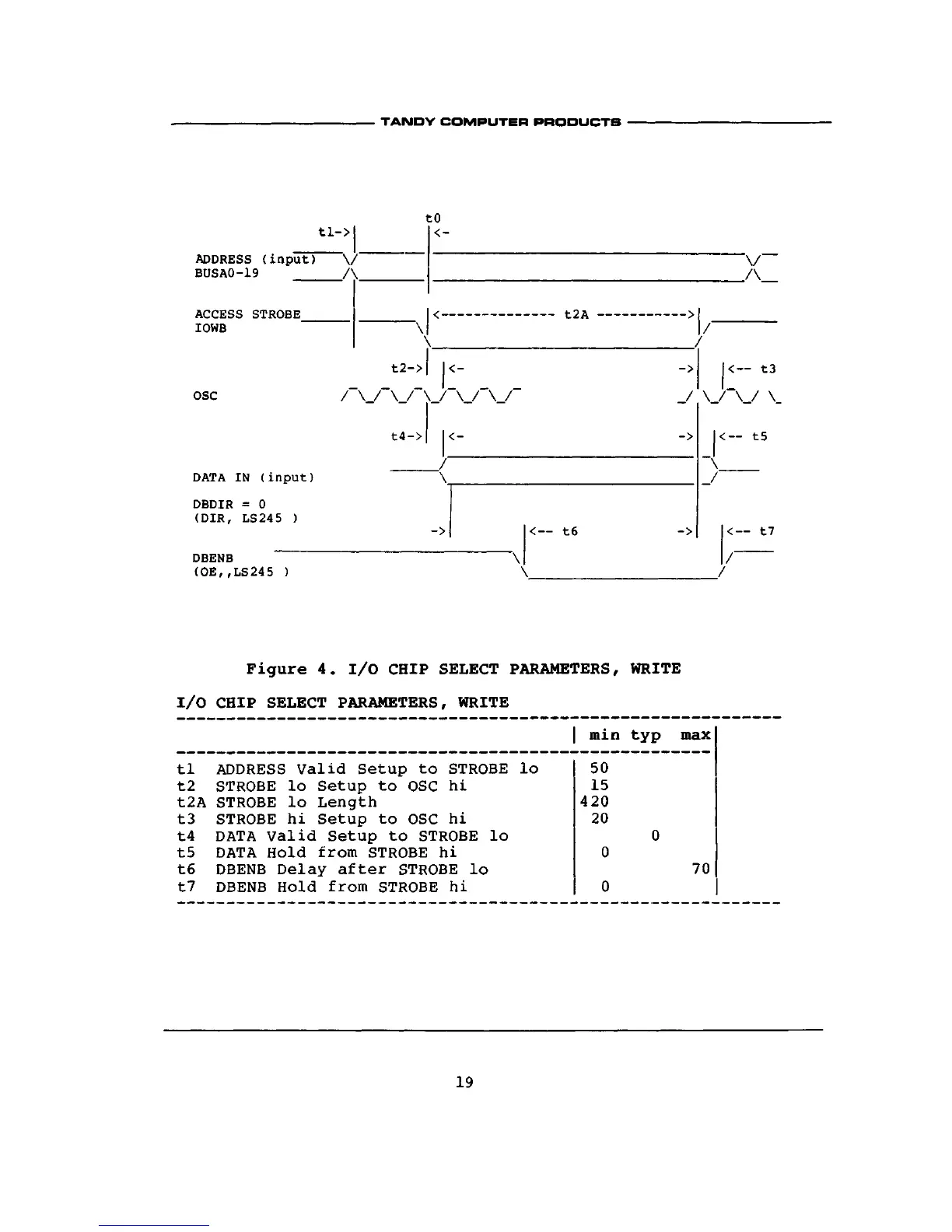

Figure 4. I/O CHIP SELECT PARAMETERS, WRITE
I/O CHIP SELECT PARAMETERS, WRITE
| min typ max
tl ADDRESS Valid Setup to STROBE lo
t2 STROBE lo Setup to OSC hi
t2A STROBE lo Length
t3 STROBE hi Setup to OSC hi
t4 DATA Valid Setup to STROBE lo
t5 DATA Hold from STROBE hi
t6 DBENB Delay after STROBE lo
t7 DBENB Hold from STROBE hi
19
