Tandy 1000 HX - GENERAL DESCRIPTION

TANDY COMPUTER PRODUCTS
PRINTER INTERFACE SPECIFICATION
TANDY PART # BD75068
APRIL 3D,
1. GENERAL DESCRIPTION
1.1 The Tandy parttt 8D75Q68 ~ Printer Interface i.C provides
the interface between the system I/O bus and the printer.

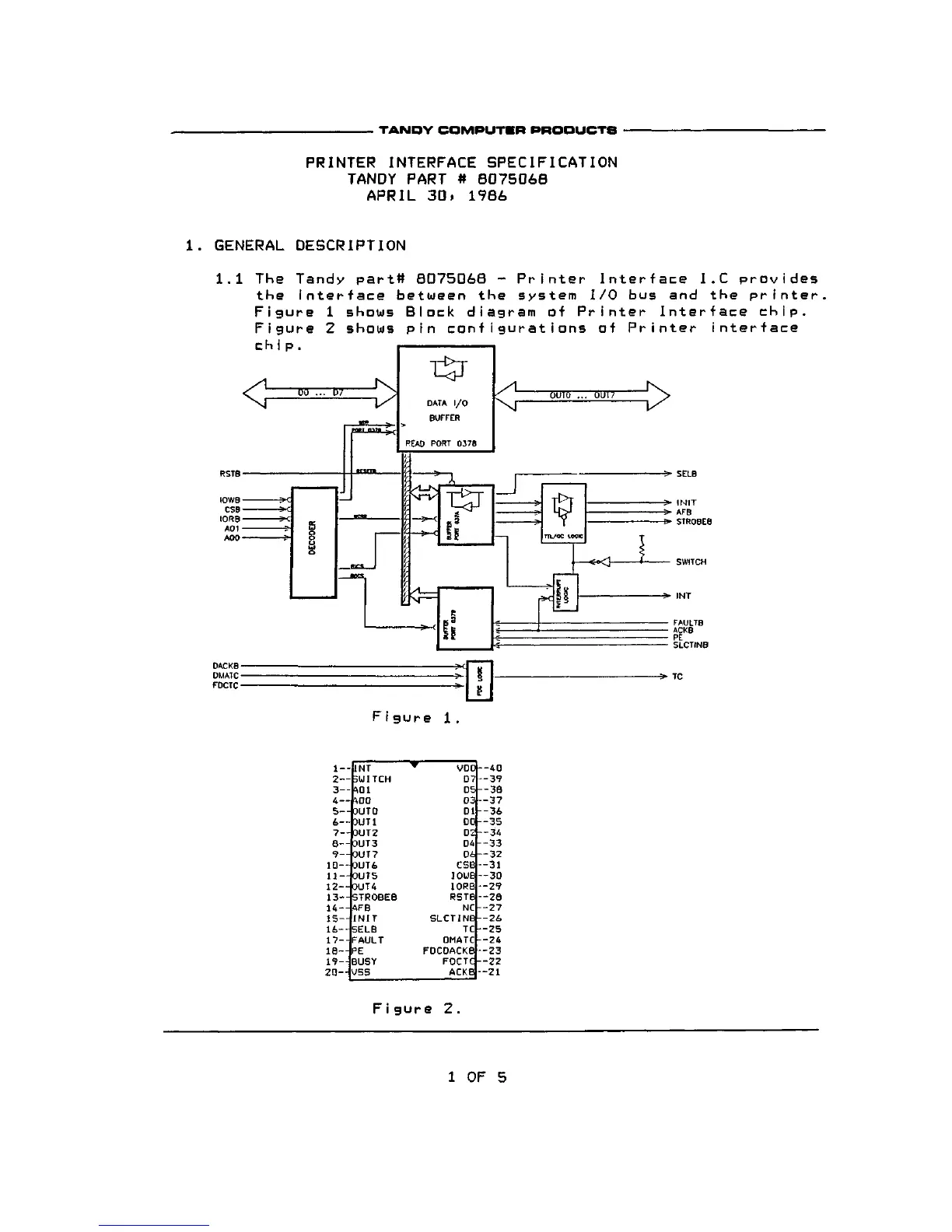

Figure 1 shows Block diagram of Printer Interface chip.
Figure 2 shows pin configurations of Printer interface
chip.
Fi gure 2.
1 OF 5
Figure 1.
