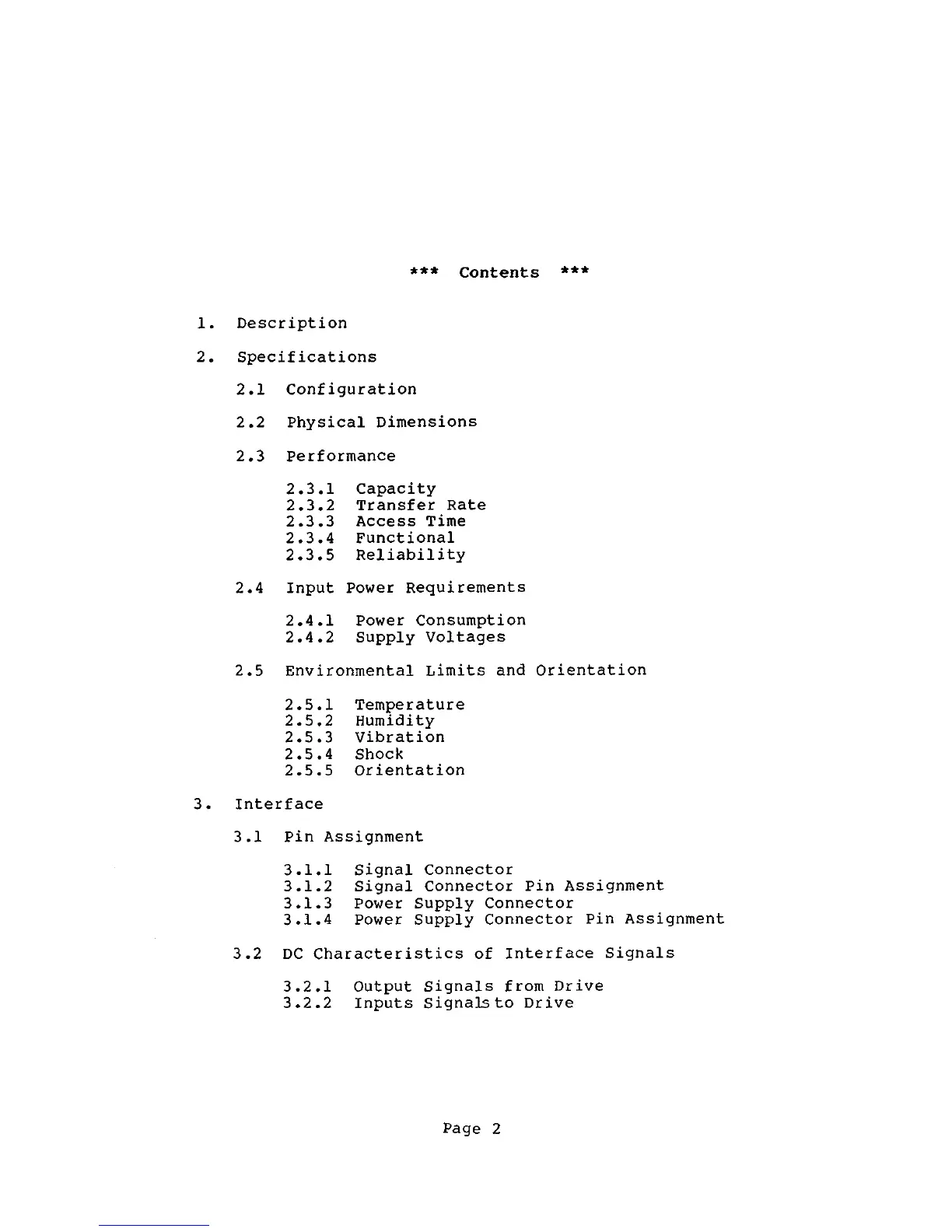

*** Contents ***
1. Description
2. Specifications
2.1 Configuration
2.2 Physical Dimensions
2.3 Performance
2.3.1 Capacity
2.3.2 Transfer Rate
2.3.3 Access Time
2.3.4 Functional
2.3.5 Reliability
2.4 Input Power Requirements
2.4.1 Power Consumption
2.4.2 Supply Voltages
2.5 Environmental Limits and Orientation
2.5.1 Temperature
2.5.2 Humidity
2.5.3 Vibration
2.5.4 Shock
2.5.5 Orientation
3. Interface
3.1 Pin Assignment
3.1.1 Signal Connector
3.1.2 Signal Connector Pin Assignment
3.1.3 Power Supply Connector
3.1.4 Power Supply Connector Pin Assignment
3.2 DC Characteristics of Interface Signals
3.2.1 Output Signals from Drive
3.2.2 Inputs Signalsto Drive
Page 2
