TANDY COMPUTER PRODUCTS

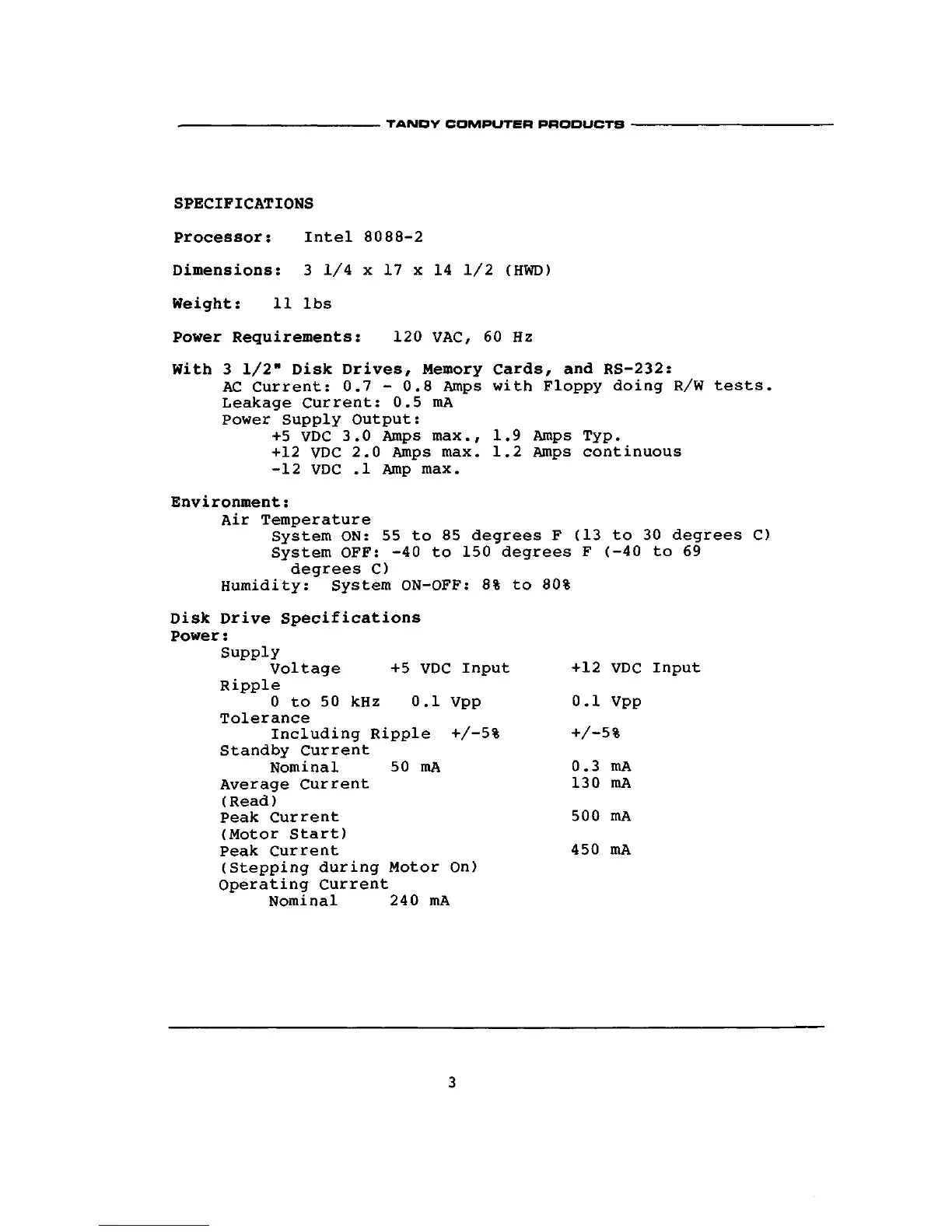

SPECIFICATIONS
Processor: Intel 8088-2
Dimensions:
3
1/4
x 17 x 14 1/2
(HWD)
Weight:
11
lbs
Power Requirements: 120 VAC,
60 Hz
With
3
1/2" Disk Drives, Memory Cards, and RS-232:
AC Current:
0.7 -
0.8 Amps with Floppy doing R/W tests.
Leakage Current: 0.5
mA
Power Supply Output:
+5 VDC 3.0 Amps max.,
1.9
Amps Typ.
+12 VDC 2.0 Amps max. 1.2 Amps continuous
-12 VDC .1 Amp max.
Environment:
Air Temperature
System ON:
55 to 85
degrees
F
(13
to
30 degrees
C)
System OFF: -40
to
150 degrees
F (-40 to 69
degrees
C)
Humidity: System ON-OFF:
8% to
80%
Disk Drive Specifications
Power:
Supply
Voltage
+5
VDC Input
Ripple
0 to 50 kHz 0.1 Vpp
Tolerance
Including Ripple
+/-5%
Standby Current
Nominal 50
mA
Average Current
(Read)
Peak Current
(Motor Start)
Peak Current
(Stepping during Motor
On)
Operating Current
Nominal 240
mA
+12
0.1
0.3
130
500
450
VDC Input
Vpp
mA
mA
mA
mA
