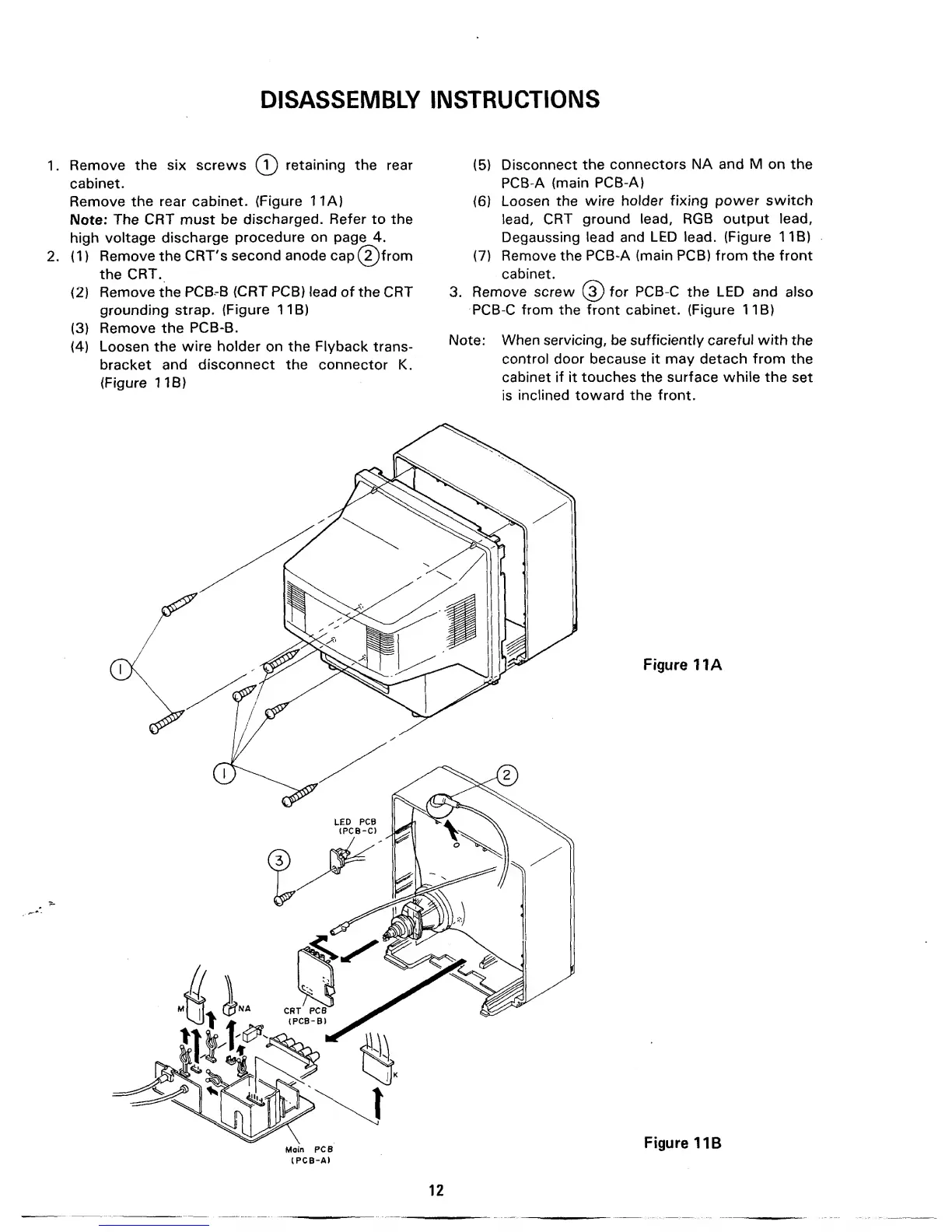

DISASSEMBLY

INSTRUCTIONS

Remove

the six

screws

(T) retaining the

rear

cabinet.

Remove

the rear cabinet.

(Figure 1 1A)

Note:

The CRT

must

discharged. Refer to

the

high

voltage discharge

procedure

page

(1)

Remove the

CRT's

second

anode

cap(2)from

the CRT.

(2)

Remove

the

PCB--B

(CRT

PCS)

lead of

the CRT

grounding

strap.

(Figure

11B)

(3)

Remove the

PCB-B.

(4)

Loosen

the

wire

holder

the Flyback

trans-

bracket

and disconnect the connector K.

(Figure 11B)

(5)

Disconnect

the

connectors NA and M on the

PCB-A

(main

PCB-A)

(6)

Loosen

the

wire

holder

fixing

power switch

lead,

CRT

ground lead, RGB

output lead,

Degaussing lead

and

LED

lead. (Figure

1 1B)

(7)

Remove

the

PCB-A

(main PCB)

from the

front

cabinet.

Remove

screw

(5)

for PCB-C the LED and

also

PCB-C

from the

front cabinet.

(Figure 1 1B)

Note: When

servicing,

sufficiently careful with

the

control door

because

may detach

from

the

cabinet if

touches

the

surface

while

the

set

inclined toward the front.

Figure

11A

Figure

11B
