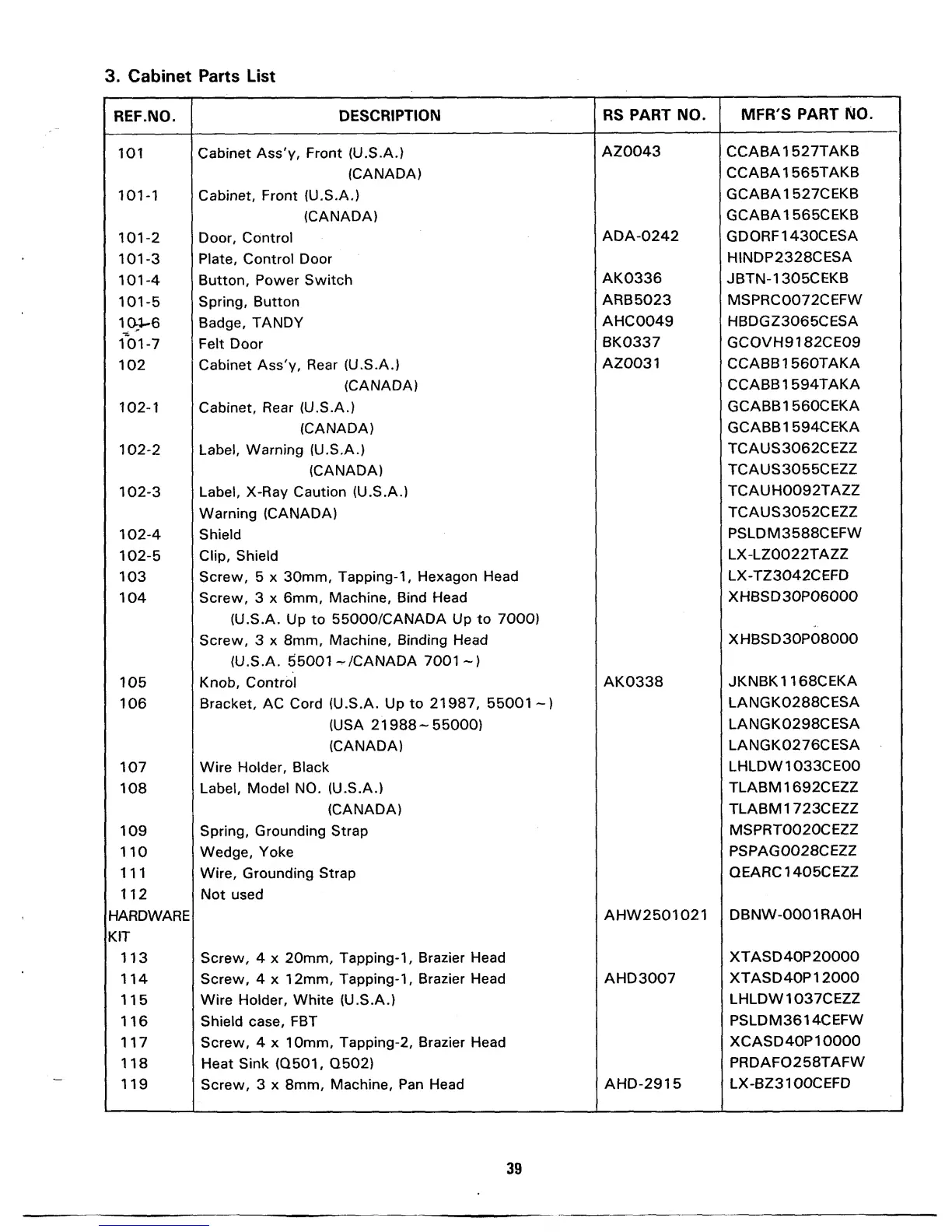

3. Cabinet Parts
List
REF.IMO.
DESCRIPTION
RS
PART
NO.
MFR'S
PART
NO.
101 Cabinet
Ass'y,
Front (U.S.A.)
AZ0043
CCABA1527TAKB
(CANADA)
CCABA1565TAKB
101-1
Cabinet, Front
(U.S.A.)
GCABA1527CEKB
(CANADA)
GCABA1565CEKB
101-2
Door,
Control
ADA-0242
GDORF1430CESA
101-3
Plate, Control
Door
HINDP2328CESA
101-4
Button, Power
Switch
AK0336 JBTN-1305CEKB
101-5
Spring, Button
ARB5023 MSPRC0072CEFW
104-6
Badge,
TANDY
AHC0049
HBDGZ3065CESA
101-7
Felt
Door
BK0337
GCOVH9182CE09
102 Cabinet Ass'y,
Rear
(U.S.A.)
A20031
CCABB1560TAKA
(CANADA)
CCABB1594TAKA
102-1
Cabinet, Rear
(U.S.A.)
GCABB1560CEKA
(CANADA)
GCABB1594CEKA
102-2
Label,
Warning (U.S.A.)
TCAUS3062CEZZ
(CANADA)
TCAUS3055CEZZ
102-3
Label, X-Ray Caution (U.S.A.)
TCAUH0092TAZZ
Warning (CANADA)
TCAUS3052CEZZ
102-4
Shield
PSLDM3588CEFW
102-5
Clip, Shield
LX-LZ0022TAZZ
103 Screw, 5 x 30mm,
Tapping-1,
Hexagon Head
LX-TZ3042CEFD
104
Screw, 3 x 6mm,
Machine, Bind Head
(U.S.A.
Up to
55000/CANADA
Up
to 7000)
XHBSD30P06000
Screw, 3 x
8mm,
Machine,
Binding Head
XHBSD30P08000
(U.S.A.
55001
-/CANADA
7001
~)
105 Knob, Control
AK0338
JKNBK1168CEKA
106 Bracket,
AC
Cord
(U.S.A.
Up to
21987,
55001
-)
LANGK0288CESA
(USA
21988-55000)
LANGK0298CESA
(CANADA)
LANGK0276CESA
107 Wire
Holder,
Black
LHLDW1033CE00
108
Label,
Model
NO.
(U.S.A.)
TLABM1692CEZZ
(CANADA)
TLABM1723CEZZ
109 Spring,
Grounding Strap
MSPRT0020CEZZ
110
Wedge, Yoke
PSPAG0028CEZZ
111
Wire, Grounding
Strap
QEARC1405CEZZ
112 Not used
HARDWARE
KIT
113
AHW2501021
DBNW-0001RA0H
Screw, 4 x 20mm,
Tapping-1,
Brazier Head
XTASD40P20000
114
Screw, 4 x 12mm,
Tapping-1,
Brazier Head
AHD3007
XTASD40P
12000
115
Wire Holder,
White
(U.S.A.)
LHLDW1037CEZZ
116
Shield
case,
FBT
PSLDM3614CEFW
117
Screw,
4 x
10mm,
Tapping-2,
Brazier
Head
XCASD40P
10000
118
Heat
Sink
(Q501,
Q502)
PRDAF0258TAFW
119
Screw, 3 x 8mm,
Machine, Pan Head
AHD-2915
LX-BZ3100CEFD
39
