Tandy CM-4 User Manual

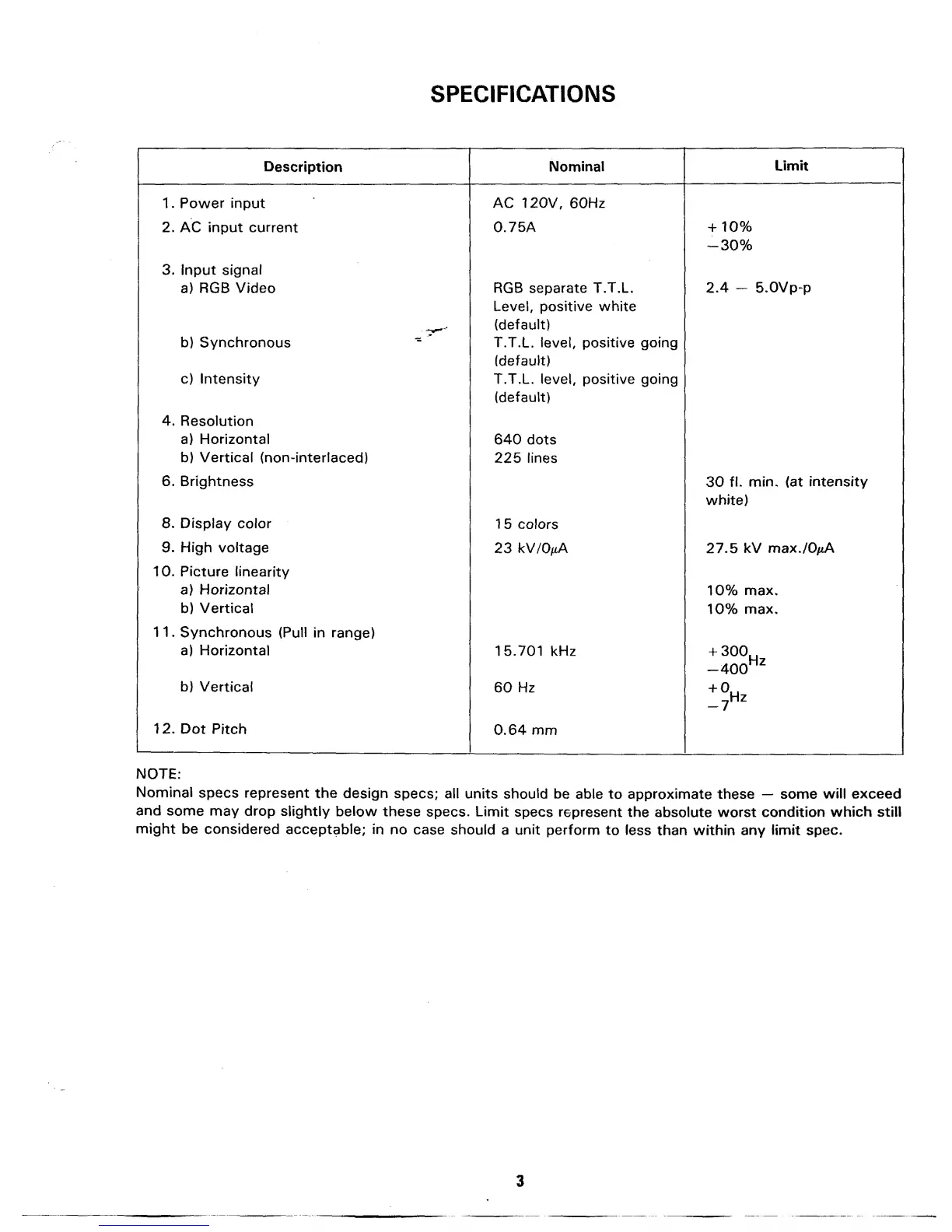

SPECIFICATIONS
Description
Nominal
Limit
1. Power input
AC 120V, 60Hz
2. AC input current 0.75A
+
10%
-30%
3. Input signal
a)
RGB Video RGB
separate
T.T.L.
Level, positive white
2.4
-
5.0Vp-p
~^"~
(default)
b)
Synchronous
"
"
T.T.L.
level,
positive going
(default)
c)
Intensity
T.T.L.
level, positive
going
(default)
4.
Resolution
a)
Horizontal
640 dots
b) Vertical
(non-interlaced)
225 lines
6.
Brightness
30
fl.
min.
(at
intensity
white)
8.
Display color
1
5
colors
9. High
voltage
23 kV/O^A
27.5 kV
maxJOfJK
10. Picture
linearity
a) Horizontal
10%
max.
b) Vertical
10%
max.
11.
Synchronous (Pull in
range)
a)
Horizontal
15.701 kHz
:i>
b)
Vertical
60 Hz
>
12.
Dot
Pitch
0.64 mm
NOTE:
Nominal
specs represent the
design
specs;
all units
should be
able
to
approximate these
—
some
will exceed
and
some
may drop
slightly
below these
specs. Limit
specs
represent the
absolute
worst condition
which still
might
be considered
acceptable; in
no case
should
a
unit
perform
to
less than within any
limit spec.

Tandy CM-4 Specifications

General

Brand	Tandy
Model	CM-4
Category	Monitor
Language	English
