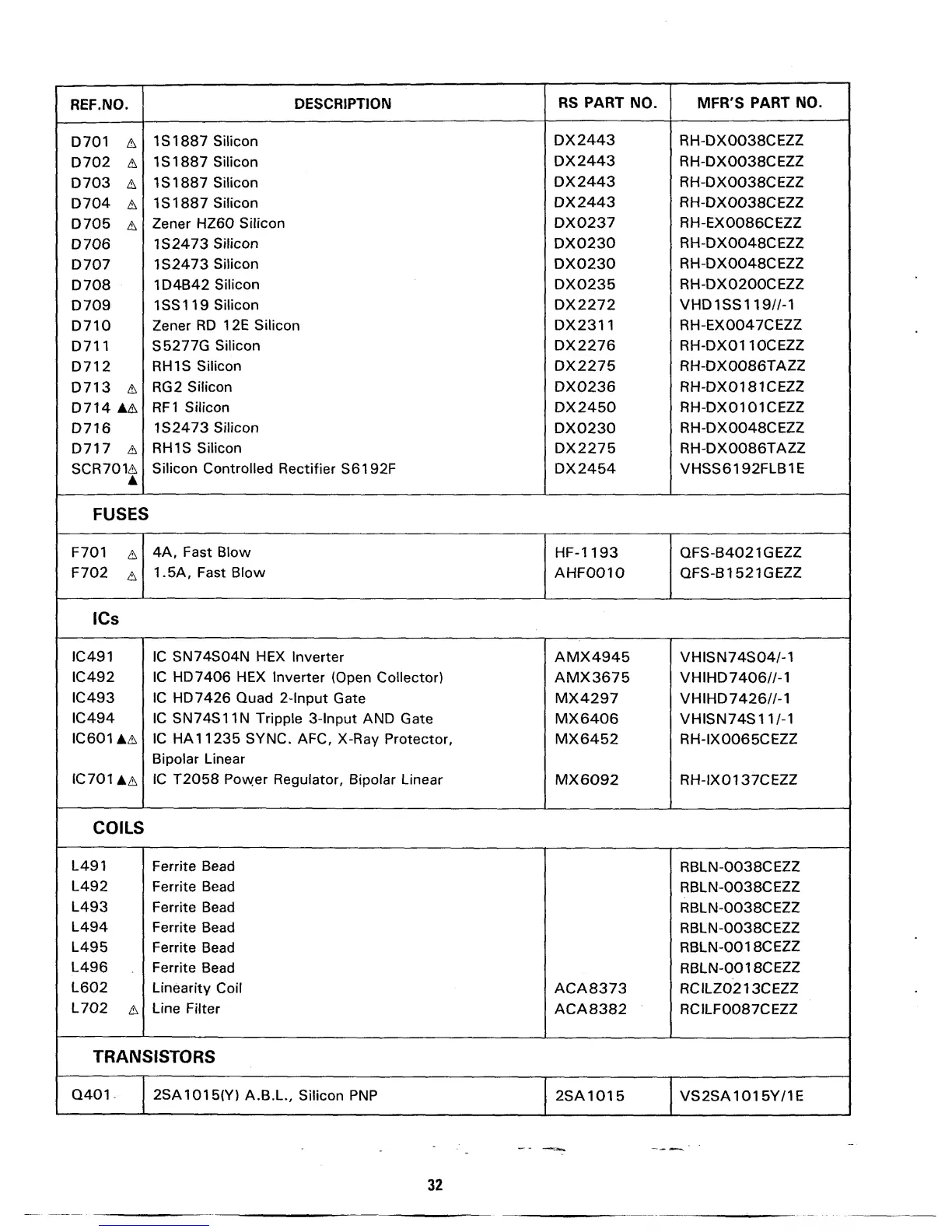

Tandy CM-4 User Manual

REF.NO.
DESCRIPTION
RS
PART
NO. MFR'S
PART NO.
D701
A
1S1887 Silicon
DX2443
RH-DX0038CEZZ
D702
A
1S1887 Silicon
DX2443
RH-DX0038CEZZ
D703
A
1S1887
Silicon
DX2443
RH-DX0038CEZZ
D704
A
1S1887
Silicon
DX2443 RH-DX0038CEZZ
D705
A
Zener HZ60
Silicon
DX0237 RH-EX0086CEZZ
D706 1S2473
Silicon DX0230
RH-DX0048CEZZ
D707 1S2473
Silicon
DX0230
RH-DX0048CEZZ
D708
1D4B42
Silicon DX0235
RH-DX0200CEZZ
D709
1SS119
Silicon DX2272
VHD1SS119//-1
D710
Zener
RD 12E Silicon DX2311
RH-EX0047CEZZ
D711
S5277G
Silicon DX2276 RH-DX0110CEZZ
D712
RH1S
Silicon
DX2275 RH-DX0086TAZZ
D713
A
RG2
Silicon DX0236 RH-DX0181CEZZ
D714
AA
RF1
Silicon
DX2450
RH-DX0101CEZZ
D716
1S2473
Silicon
DX0230
RH-DX0048CEZZ
D717
A
RH1S
Silicon
DX2275
RH-DX0086TAZZ
SCR701A
Silicon
Controlled
Rectifier
S6192F
DX2454 VHSS6192FLB1E
FUSES
F701
a
4A,
Fast
Blow
HF-1193
QFS-B4021GEZZ
F702
A
1.5A, Fast Blow
AHF0010 QFS-B1521GEZZ
ICs
IC491 IC SN74S04N
HEX
Inverter AMX4945
VHISN74S04/-1
IC492
IC
HD7406
HEX Inverter
(Open
Collector) AMX3675
VHIHD7406//-1
IC493 IC HD7426
Quad
2-input Gate
MX4297
VHIHD7426/M
IC494
IC
SN74S11N
Tripple
3-lnput
AND
Gate
MX6406
VHISN74S11/-1
IC601AA
IC HA11235 SYNC.
AFC,
X-Ray Protector,
Bipolar Linear
MX6452
RH-IX0065CEZZ
IC701AA
IC
T2058
Povyer
Regulator,
Bipolar Linear
MX6092
RH-IX0137CEZZ
COILS
L491
Ferrite Bead
RBLN-0038CEZZ
L492
Ferrite Bead
RBLN-0038CEZZ
L493
Ferrite
Bead
RBLN-0038CEZZ
L494
Ferrite
Bead
RBLN-0038CEZZ
L495
Ferrite
Bead
RBLN-0018CEZZ
L496
Ferrite
Bead RBLN-0018CEZZ
L602
Linearity
Coil
ACA8373
RCILZ0213CEZZ
L702
A
Line
Filter
ACA8382
RCILF0087CEZZ
TRANSISTORS
Q401-
2SA1015(Y)
A.B.L.,
Silicon PNP
2SA1015
VS2SA1015Y/1E
32
