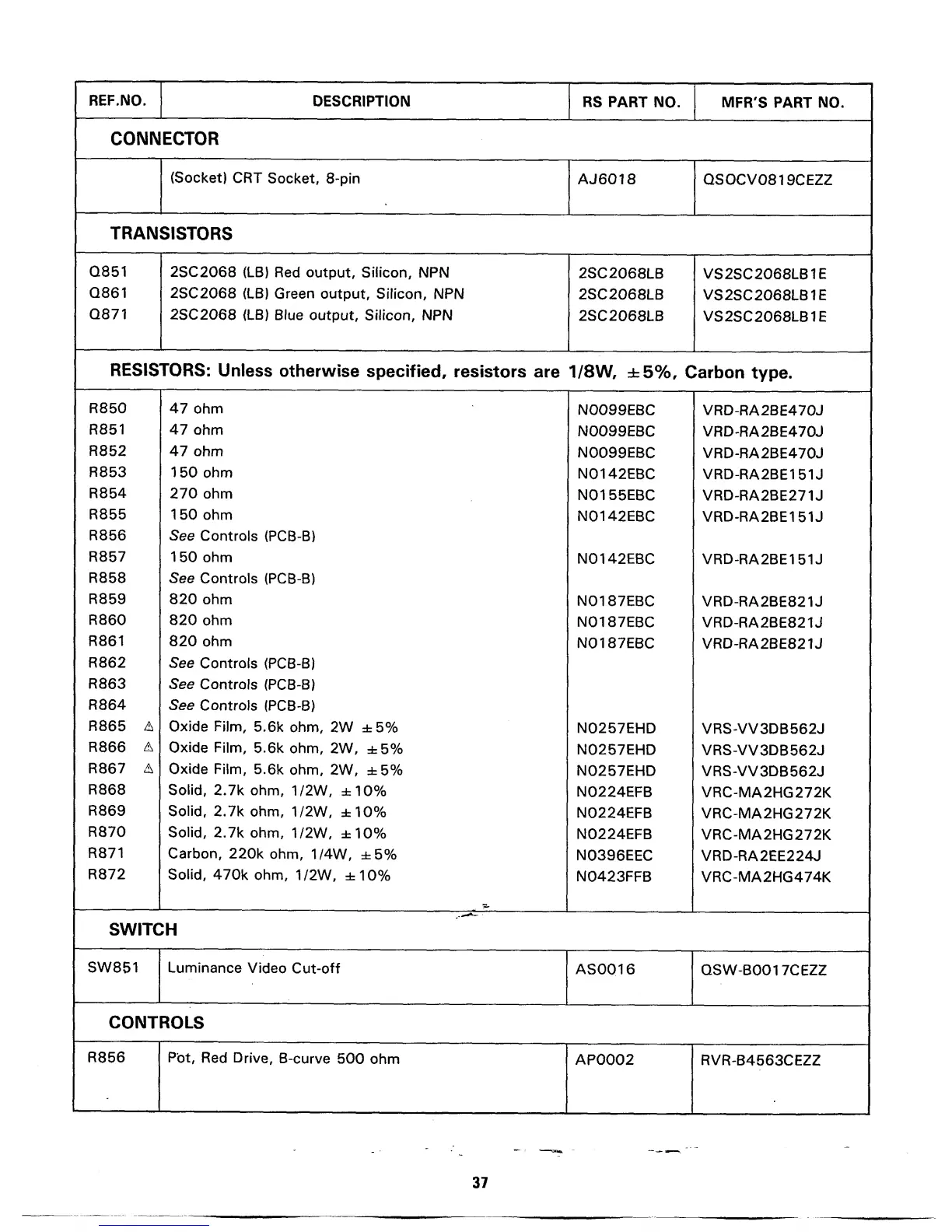

Page #37 background imageLoading...
Page #37 background image
REF.NO.
DESCRIPTION
RS
PART
NO.
MFR'S PART
NO.
CONNECTOR
(Socket)
CRT
Socket,
8-pin
AJ6018
QSOCV0819CEZZ
TRANSISTORS
Q851
2SC2068 (LB)
Red output, Silicon,
NPN
2SC2068LB
VS2SC2068LB1E
Q861
2SC2068
(LB) Green output, Silicon,
NPN
2SC2068LB
VS2SC2068LB1E
Q871
2SC2068 (LB)
Blue output,
Silicon,
NPN
2SC2068LB
VS2SC2068LB1E
RESIS
TORS:
Unless
otherwise
specified,
resistors
are
1/8W,
±5%,
Carbon
type.
R850
47
ohm
N0099EBC
VRD-RA2BE470J
R851 47
ohm
N0099EBC
VRD-RA2BE470J
R852
47 ohm
N0099EBC
VRD-RA2BE470J
R853
1
50 ohm
N0142EBC
VRD-RA2BE151J
R854
270 ohm
N0155EBC
VRD-RA2BE271J
R855
1
50 ohm
N0142EBC
VRD-RA2BE151J
R856
See Controls
(PCB-B)
R857
1 50
ohm
N0142EBC
VRD-RA2BE151J
R858
See
Controls
(PCB-B)
R859
820 ohm
N0187EBC
VRD-RA2BE821J
R860
820
ohm
N0187EBC
VRD-RA2BE821J
R861 820
ohm
N0187EBC
VRD-RA2BE821J
R862
See
Controls
(PCB-B)
R863
See
Controls
(PCB-B)
R864
See
Controls
(PCB-B)
R865
A
Oxide Film,
5.6k
ohm,
2W
±5%
N0257EHD
VRS-VV3DB562J
R866
A
Oxide Film,
5.6k
ohm,
2W,
±5%
N0257EHD
VRS-VV3DB562J
R867
A
Oxide
Film,
5.6k
ohm,
2W,
±5%
N0257EHD
VRS-VV3DB562J
R868
Solid,
2.7k
ohm,
1/2W,
±10%
N0224EFB
VRC-MA2HG272K
R869
Solid,
2.7k
ohm,
1/2W, ±10%
N0224EFB
VRC-MA2HG272K
R870
Solid,
2.7k ohm,
1/2W,
±10%
N0224EFB
VRC-MA2HG272K
R871
Carbon,
220k
ohm,
1/4W,
±5%
N0396EEC
VRD-RA2EE224J
R872
Solid,
470k
ohm,
1/2W,
±10%
N0423FFB
VRC-MA2HG474K
SWITC
:h
SW851
Luminance
Video
Cut-off
AS0016
QSW-B0017CEZZ
CONTROLS
R856 Pot,
Red Drive,
B-curve
500
ohm
AP0002
RVR-B4563CEZZ
37
