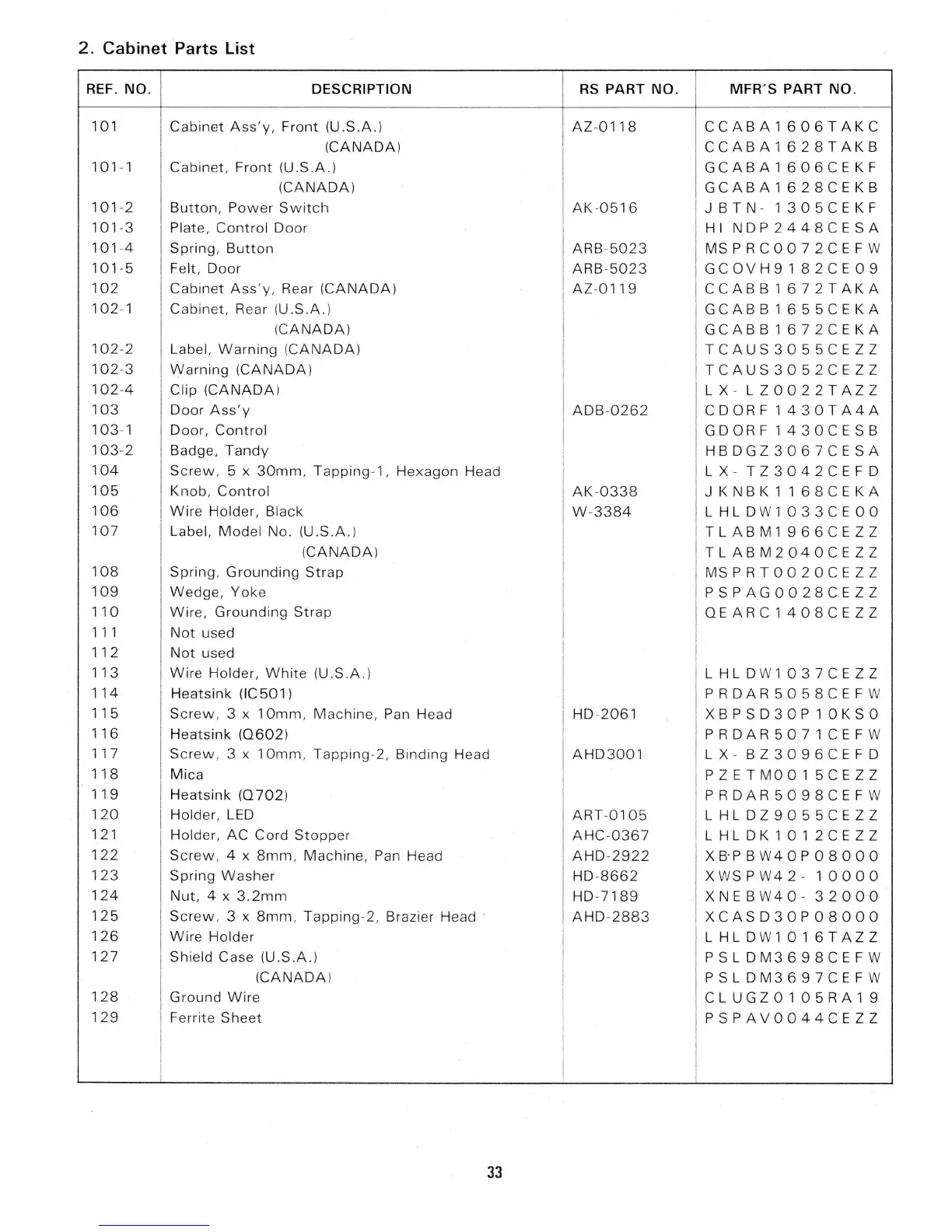

Tandy CM-8 - Cabinet Parts List

2. Cabinet Parts List
REF . NO.
DESCRIPTION
RS PART NO.
MFR'S PART NO.
101
Cabinet Ass'y, Front (U.S.A .) AZ-0118 CCABA1606TAKC
(CANADA)
CCABA1628TAKB
101 -1
Cabinet, Front (U . S.A.)
GCABA1606CEKF
(CANADA)
GCABA1628CEKB
101 -2 Button, Power Switch
AK - 0516 JBTN - 1305CEKF
101 -3 Plate, Control Door
HI NDP2448CESA
101 -4
Spring, Button
ARB- 5023 MSPRC0072CEFW
101 -5 Felt, Door
ARB- 5023 GCOVH9182CE09
102 Cabinet Ass 'y, Rear (CANADA)
AZ - 0119
CCABB1672TAKA
102 -1 Cabinet , Rear ( U.S.A .)
GCABB1655CEKA
(C ANADA)
GCABB1672CEKA
102 -2 Label, Warning ( CANADA)
TCAUS3055CEZZ
102-3 Warning (CANADA )
TCAUS3052CEZZ
102 -4 Clip (CANADA)
LX - LZ0022TAZZ
103
Door Ass'y
ADB - 0262 CDORF1430TA4A
103 -1
Door, Control
GDORF1430CESB
103-2
Badge, Tandy
HBDGZ3067CESA
104
Screw , 5 x 30mm, Tapping -1, Hexagon Head
LX - TZ3042CEFD
105
Knob, Control
AK- 0338 JKNBK1168CEKA
106
Wire Holder, Black
W - 3384
LHLDW1033CEOO
107
Label, Model No. (U.S.A. )
TLABM1966CEZZ
(CANADA)
TLABM2040CEZZ
108
Spring, Grounding Strap
MSPRT0020CEZZ
109 Wedge, Yoke
PSPAG0028CEZZ
110 Wire, Grounding Strap
OEARC1408CEZZ
1 1 1
Not used
11 2
Not used
113
Wire Holder, White (U .S.A. )
LHLD W 1037CEZZ
114
Heatsink (IC501)
PRDAR5058CEFW
11 5
Screw, 3 x 1 Omm , Machine , Pan Head HD - 2061
XBPSD30P10KSO
116
Heatsink (0602)
PRDAR5071CEFW
117
Screw , 3 x 1 Omm , Tapping -2, Binding Head
AHD3001 LX - BZ3096CEFD
118
Mica
P Z ET MO 0 1 5 CEZ Z
119
Heatsink (0702)
PRDAR5098CEFW
120
Holder, LED
ART - 0105
LHLDZ9055CEZZ
121
Holder, AC Cord Stopper
AHC-0367
LHLDK1012CEZZ
122
Screw, 4 x 8mm, Machine , Pan Head AHD - 2922
X B· P B W 4 0 P 0 8 0 0 0
123
Spring Washer
HD - 8662 XWSPW42- 10000
124
Nut, 4 x 3. 2mm
HD - 7189
XNEBW40- 32000
125
Screw, 3 x 8mm , Tapping - 2, Brazier Head
AHD - 2883 XCASD30P08000
126
Wire Holder
LHLDW1016TAZZ
127
Shield Case (U .S.A .)
PSLDM3698CEFW
(CANADA )
PSLDM3697CEFW
128
Ground Wire
CLUGZ0105RA19
129
Ferrite Sheet
PSPAV0044CEZZ
