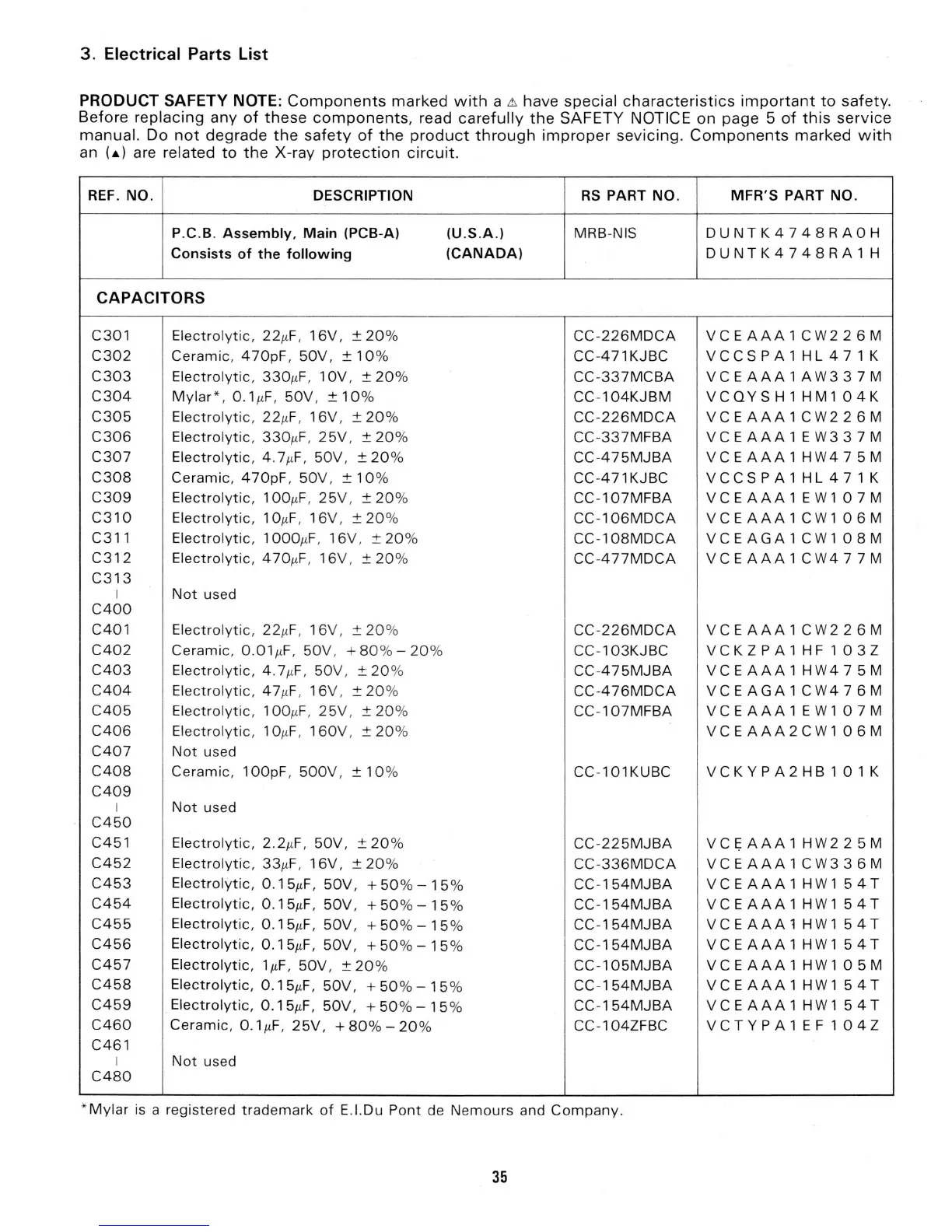

3. Electrical Parts List
PRODUCT SAFETY NOTE: Components marked with a e:, have special characteristics important to safety .
Before replacing any
of these components, read carefully the SAFETY NOTICE on page 5 of this service
manual. Do not degrade the safety of the product through improper sevicing. Components marked with
an ( ... ) are related to the X-ray protection circuit.
REF. NO.
DESCRIPTION
P.C.B. Assembly, Main (PCB-A)
Consists of the following
(U.S.A.)
(CANADA)
CAPACITORS
C301
C302
C303
C304
C305
C306
C307
C308
C309
C310
C311
C312
C313
Electrolytic , 22µF, 16V, ± 20 %
Ceramic,
4 70pF, 50V, ± 10 %
Electrolytic, 330µF, 1 OV , ± 20 %
Mylar *, 0.1µF, 50V , ± 10 %
Electrolyt ic, 22 µF, 16V , ± 20 %
Electrolytic , 330 µF, 2 5V, ± 20 %
Electrolytic , 4 . 7 µF, 50V , ± 20 %
Ceramic, 4 70pF, 50V , ± 10 %
Electrolytic , 100 µF, 25V , ± 20 %
Electrolytic , 1 OµF, 16V , ± 20 %
Electrolyt ic, 1 OOO µF, 16V , ± 20 %
Electrolytic, 4 70 µF, 16V , ± 20 %
I Not used
C400
C401
C402
C403
C404
C405
C406
C407
C408
C409
Electrolytic , 22 µF, 16V , ± 20 %
Ceramic, 0.01 µF, 50V , + 80 % - 20 %
Electrolytic, 4. 7 µF, 50 V , ± 20 %
Electrolyt ic, 4 7 µF, 1 6V , ± 20 %
Electrolytic , 100 µF, 25V , ±20 %
Ele c trolytic , 1 OµF, 160V , ± 20 %
Not used
Ceramic, 1 OOpF , 500V , ± 10 %
I Not used
C450
C451
C452
C453
C454
C455
C456
C457
C458
C459
C460
C461
Electrolytic, 2.2µF, 50V , ± 20 %
Electrolytic, 33µF, 16V, ± 20 %
Electrolytic, 0.15 µ F, 50V, + 50 % -15 %
Electrolytic, 0. 15µF, 50V , + 50 % - 15 %
Electrolytic , 0.15µF, 50V , + 50 % -15 %
Electrolytic, 0.15µF , 50V , + 50 % - 15 %
Electrolytic, 1 µF , 50V , ± 20 %
Electrolytic , 0 .15µF, 50V , + 50 % - 15 %
Electrolytic , 0.15µF, 50V, + 50 % - 15 %
Ceramic, 0.1µF, 25V , + 80 % - 20 %
I Not used
C480
RS PART NO.
MRB-NIS
CC - 226MDCA
CC -471 KJBC
CC-337MCBA
CC - 104KJBM
CC - 226MDCA
CC - 337MFBA
CC-475MJBA
CC - 471KJBC
CC - 107MFBA
CC - 106MDCA
CC-108MDCA
CC - 477MDCA
CC - 226MDCA
CC - 103KJBC
CC -4 75MJBA
CC - 476MDCA
CC - 107MFBA
CC - 101KUBC
CC - 225MJBA
CC - 336MDCA
CC - 154MJBA
CC - 154MJBA
CC - 154MJBA
CC - 154MJBA
CC - 105MJBA
CC - 154MJBA
CC - 154MJBA
CC-104ZFBC
* Mylar is a registered trademark of E.l.Du Pont de Nemours and Company.
35
MFR'S PART NO.
DUNTK4748RAOH
DUNTK4748RA1H
VCEAAA1CW226M
VCCSPA1HL471K
VCEAAA1AW337M
VCOYSH1HM104K
VCEAAA1CW226M
VCEAAA1EW337M
VCEAAA1HW475M
VCCSPA1HL471K
VCEAAA1EW107M
VCEAAA1CW106M
VCEAGA1CW108M
VCEAAA1CW477M
VCEAAA1CW226M
VCKZPA1HF103Z
VCEAAA1HW475M
VCEAGA1CW476M
VCEAAA1EW107M
VCEAAA2CW106M
VCKYPA2HB101K
VC~AAA1HW225M
VCEAAA1CW336M
VCEAAA1HW154T
VCEAAA1HW154T
VCEAAA1HW154T
VCEAAA1HW154T
VCEAAA1HW105M
VCEAAA1HW154T
VCEAAA1HW154T
VCTYPA1EF104Z
